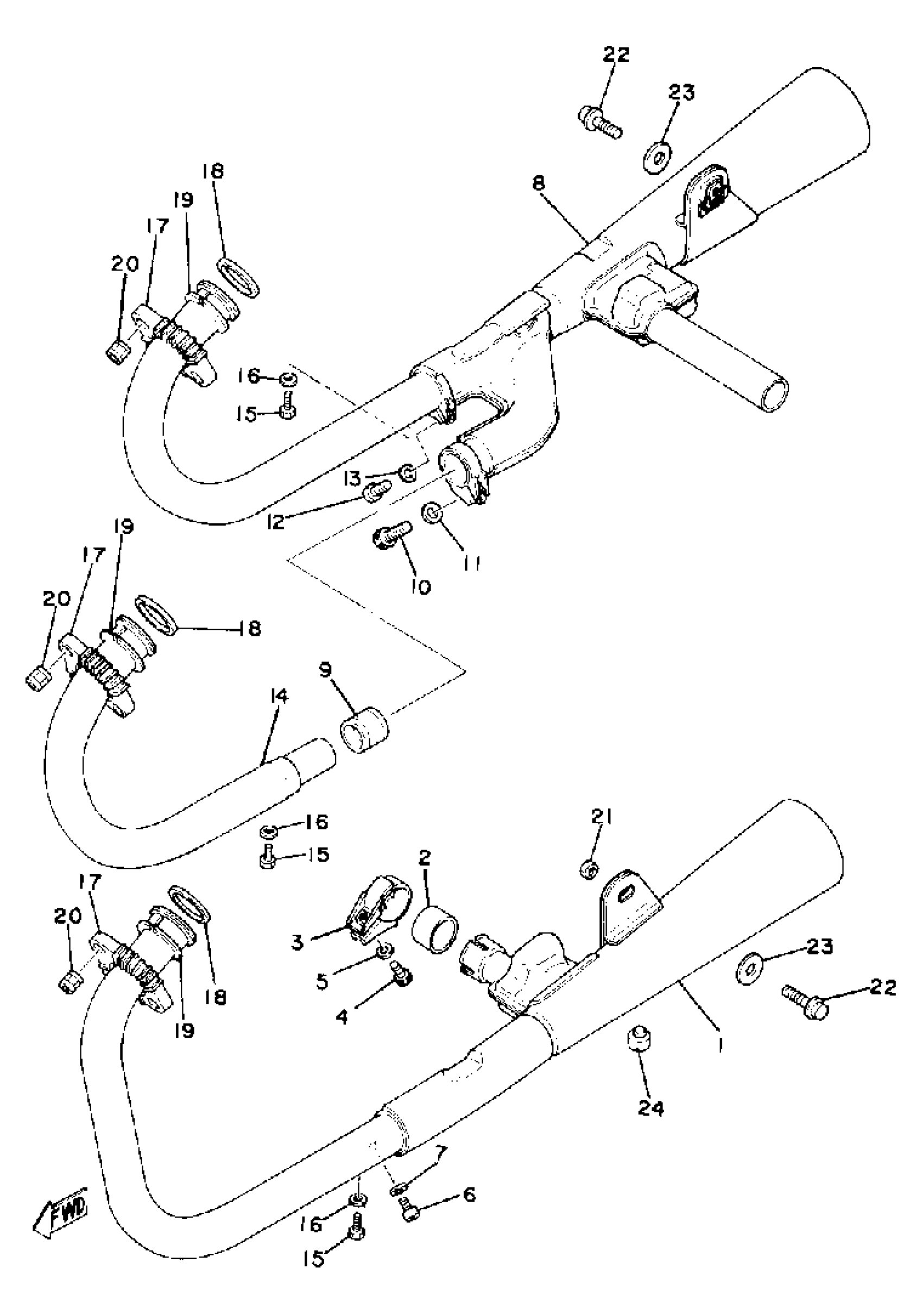

Yamaha XS850H (XS850) 1981 EXHAUST Diagram
#
Description
Price
1
MUFFLER ASSEMBLY L
(3J2-14710-02-00)
Unavailable
3
BAND, SILENCER
1L9-14788-00-00
Unavailable
8
MUFFLER ASSEMBLY R
3J2-14720-02-00
Unavailable
11
.. WASHER, PLATE
92990-08600-00
Unavailable
14
PIPE, EXHAUST R
3J2-14621-01-00
Unavailable
17
NUT, RING
(4H1-14612-00-00)
Unavailable
18
GASKET, EXHAUST PIPE
4BE-14613-00-00
Unavailable
19
FLANGE, EXST PIPE
1J7-14614-00-00
Unavailable
20
NUT (371)
90179-08004-00
Unavailable
21
NUT, SPEC''L SHAPE
90179-10276-00
Unavailable
22
BOLT, FLANGE
95817-10035-00
Unavailable
23
WASHER, PLATE (2Y4)
90201-10714-00
Unavailable
24
STOPPER, MAIN STAND
371-27114-00-00
Unavailable
