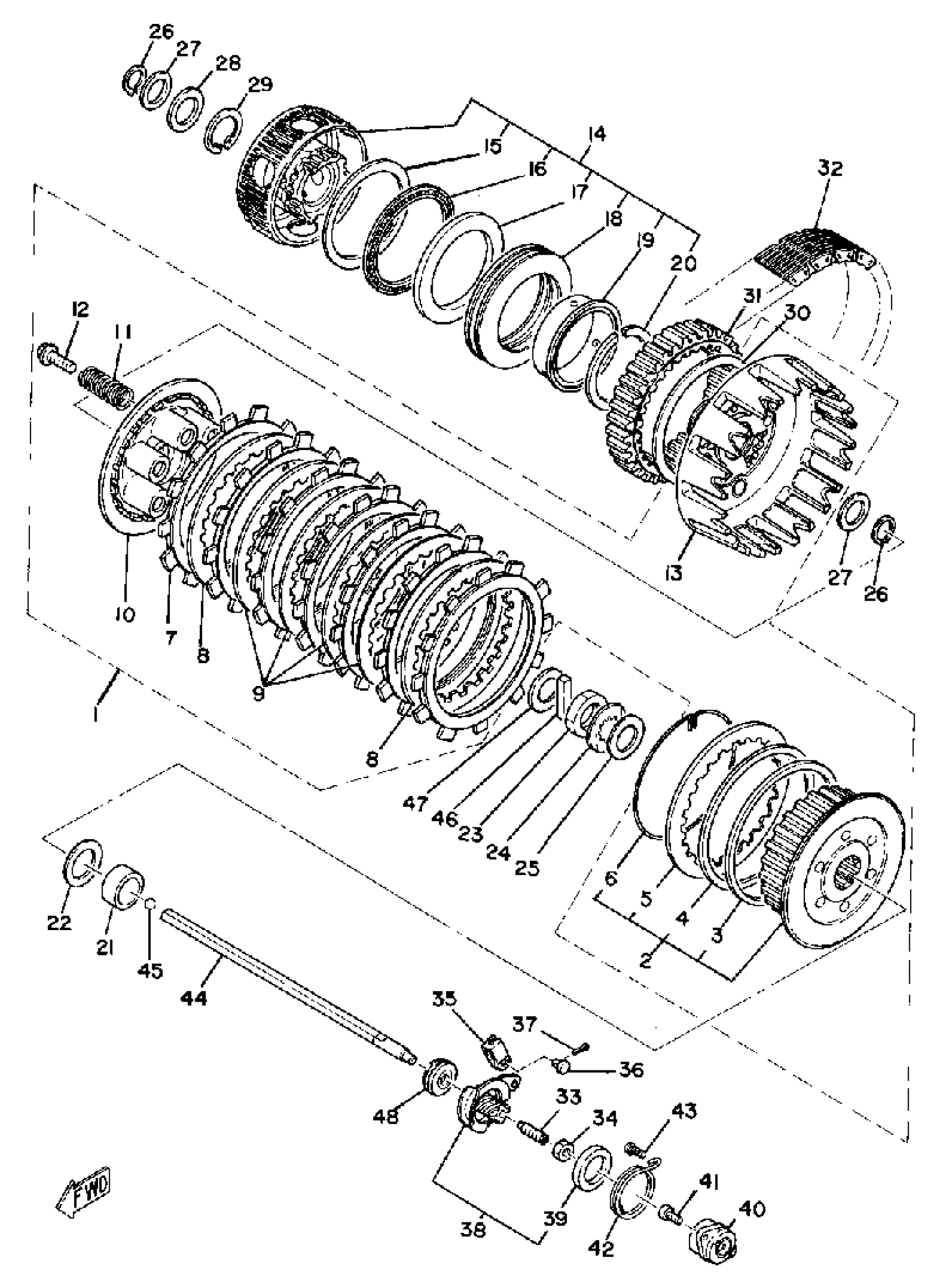

Yamaha XS850H (XS850) 1981 CLUTCH Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(3J2-16301-01-00)

Unavailable

2

. CLUTCH BOSS ASSEMBLY

1T5-16370-00-00

Unavailable

3

PLATE, SEAT

1J7-16384-00-00

Unavailable

4

.. SPRING, CLUTCH BOSS

1J7-16383-01-00

Unavailable

5

PLATE, CLUTCH 2

168-16325-10-00

$14.49

6

RING, CLUTCH BOSS

1J7-16385-00-00

Unavailable

7

PLATE, FRICTION 1

5Y1-16321-00-00

$18.49

8

PLATE, CLUTCH 2

168-16325-10-00

$14.49

9

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

10

. PLATE, PRESSURE 1

1J7-16351-00-00

Unavailable

11

SPRING,COMPRESSION 2561633310

90501-23142-00

$8.49

12

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

13

. CLUTCH HOUSING ASSEMBLY

1J7-16310-03-00

Unavailable

14

CLUTCH DAMPER ASSEMBLY

(3J2-16306-00-00)

Unavailable

15

. UNAVAILABLE IN PRICE BOOK

90201-77604-00

Unavailable

16

BEARING, FLAT #40

(93340-27601-00)

Unavailable

17

WASHER, PLATE

(90201-69603-00)

Unavailable

18

SPRING, DAMPER

(1J7-16318-00-00)

Unavailable

19

COLLAR

(90387-64672-00)

Unavailable

20

. CIRCLIP, OUTER

93440-64047-00

Unavailable

21

SPACER

(90560-25160-00)

Unavailable

22

WASHER PLATE 371115580000

90201-25291-00

Unavailable

23

NUT, HEXAGON

90170-24203-00

Unavailable

24

WASHER, LOCK

90215-21130-00

Unavailable

25

WASHER, CONICAL SPR

90208-25021-00

Unavailable

26

CIRCLIP(1AR)

99009-20400-00

Unavailable

27

WASHER, PLATE

90201-21599-00

Unavailable

28

SHIM

2F3-16391-00-00

Unavailable

29

CIRCLIP, OUTER

93440-31068-00

Unavailable

30

WASHER, PLATE

(90201-99692-00)

Unavailable

30

WASHER, PLATE

90201-99693-00

Unavailable

31

GEAR, PRI DRIVEN

(3J2-16151-00-00)

Unavailable

32

CHAIN, PRIMARY

3J2-16139-00-00

Unavailable

33

BOLT SET 256163430100

90113-08021-00

Unavailable

34

NUT

90179-08179-00

Unavailable

35

JOINT

214-16389-00-00

Unavailable

36

PIN W/HOLE 214163790000

90240-06005-00

Unavailable

37

. PIN, COTTER

91401-10015-00

Unavailable

38

PUSH LEVER ASSEMBLY

1J7-16340-01-00

Unavailable

39

SEAL, DUST

214-16347-01-00

Unavailable

40

BALL SCRW HSNG ASSEMBLY (256-16343-01)

1J7-16304-00-00

Unavailable

41

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

42

SPRING, TORSION

90508-18313-00

Unavailable

43

HOOK, SPRING

132-16346-00-00

Unavailable

44

ROD, PUSH 2

1J7-16357-01-00

Unavailable

45

BALL

93505-16006-00

Unavailable

46

ROD, PUSH 1

1J7-16356-01-00

Unavailable

47

WASHER, PLATE

90201-22625-00

Unavailable

48

OIL SEAL, SD-TYPE

93102-08205-00

Unavailable
