CARBURETOR

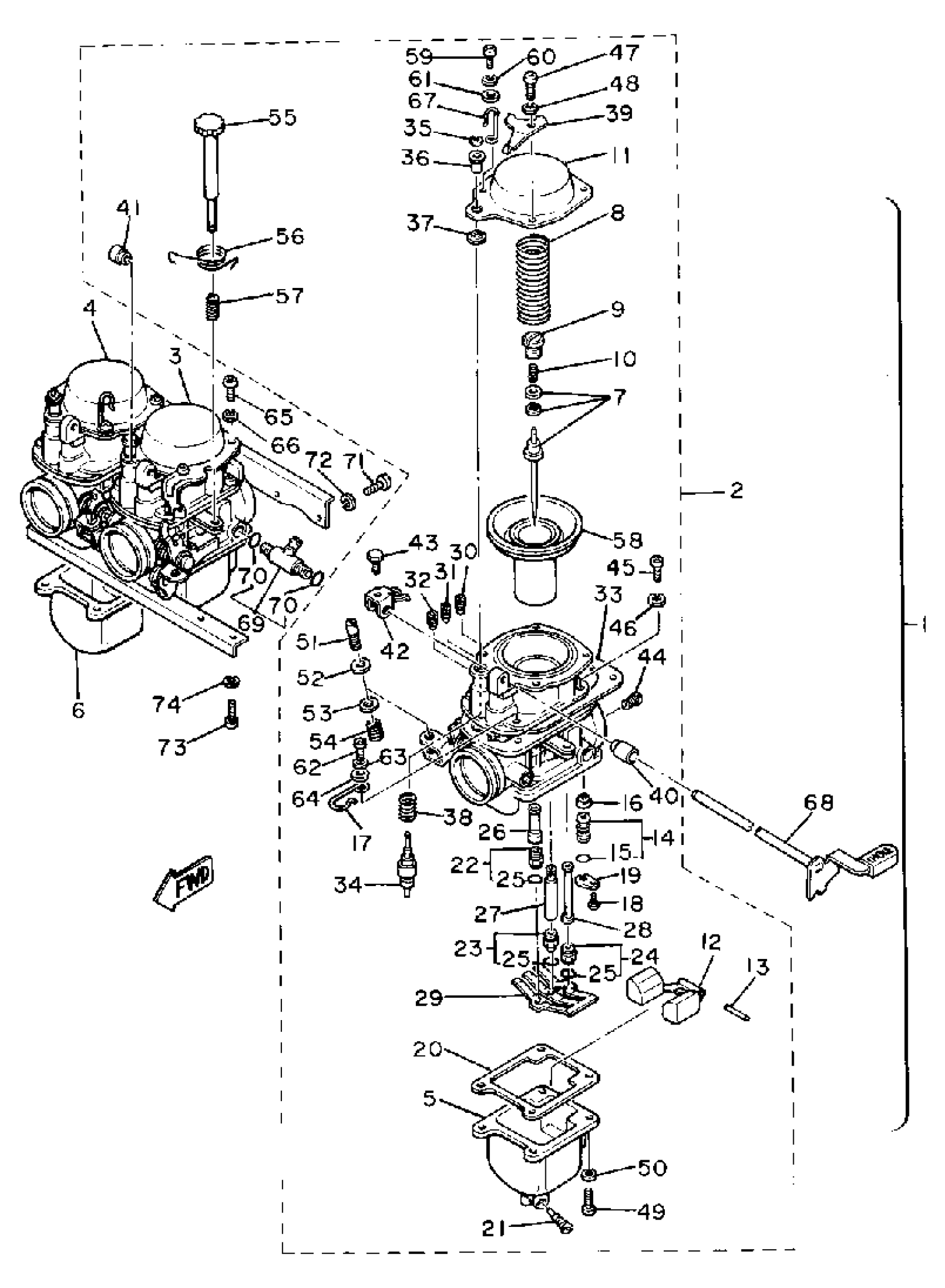

Yamaha XS850H (XS850) 1981 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
(3J3-14900-00-00)
Unavailable
2
CARBURETOR ASSEMBLY 1
(3J3-14901-00-00)
Unavailable
3
CARBURETOR ASSEMBLY 2
(3J3-14902-00-00)
Unavailable
4
CARBURETOR ASSEMBLY 3
(3J3-14903-00-00)
Unavailable
5
BODY, FLOAT CHAMBER
(3J3-14981-01-00)
Unavailable
6
HOLDER
(3J3-14982-00-00)
Unavailable
7
.. JET, NEEDLE
3J3-W1418-01-00
Unavailable
8
SPRING, DIAPHRAGM
(3J3-14933-00-00)
Unavailable
9
SEAT, SPRING
(4H7-14936-00-00)
Unavailable
10
SPRING
(3J3-14589-00-00)
Unavailable
11
COVER, DIAPHRAGM
(3J3-14958-00-00)
Unavailable
12
.. FLOAT
3J3-14985-00-00
Unavailable
13
.. PIN, FLOAT
3J3-14186-00-00
Unavailable
14
.. NEEDLE VALVE ASSEMBLY
3J3-W1496-20-00
Unavailable
16
NET, FILTER
(3J3-14994-00-00)
Unavailable
17
CLIP
(3J3-14937-00-00)
Unavailable
18
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
19
PLATE
(3J3-14146-00-00)
Unavailable
20
GASKET,FLOAT CHMBR
3J3-14984-01-00
Unavailable
21
.. PLUG, DRAIN
4X7-14191-01-00
Unavailable
22
.. JET, MAIN
3J3-W4943-42-00
Unavailable
23
.. JET, PILOT
3J3-W1448-40-00
Unavailable
24
.. JET, STARTER
3J3-W1461-40-00
Unavailable
25
.. O-RING
3J3-14561-00-00
Unavailable
26
NOZZLE, MAIN
(3J3-14921-26-00)
Unavailable
27
.. EMULSION TUBE, SLOW
3J3-14924-00-00
Unavailable
28
.. JET, NEEDLE
3J3-14947-15-00
Unavailable
29
WASHER
(3J3-14956-00-00)
Unavailable
30
JET, MAIN AIR
(3J3-14928-10-00)
Unavailable
31
.. JET, PILOT AIR
3J3-14949-31-00
Unavailable
32
NOZZLE, STARTER
(3J3-14983-12-00)
Unavailable
33
.. GASKET
3J3-14959-00-00
Unavailable
34
.. PLUNGER, STARTER
3J3-14171-00-00
Unavailable
35
.. WASHER
3J3-14955-00-00
Unavailable
36
.. CAP
3J3-14968-00-00
Unavailable
37
.. COVER, PLUNGER CAP
3J3-14173-00-00
Unavailable
38
.. SPRING, PLUNGER
3J3-14135-00-00
Unavailable
39
PIPE
(3J3-14996-00-00)
Unavailable
40
BUSH
(3J3-14998-00-00)
Unavailable
41
WASHER
(3J3-14973-00-00)
Unavailable
42
LEVER, STARTER
(3J3-14905-00-00)
Unavailable
43
SCREW
(3J3-14991-01-00)
Unavailable
44
ORIFICE, AIR VENT
(3J3-14989-20-00)
Unavailable
45
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
46
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
47
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
48
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
49
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
50
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
51
SCREW, THROTTLE
(3J3-14922-00-00)
Unavailable
52
WASHER
(3J3-14951-00-00)
Unavailable
53
WASHER
(3J3-14952-00-00)
Unavailable
54
SPRING, THRTL STOP
(3J3-14133-00-00)
Unavailable
55
SCREW, THROTTLE
(3J3-14122-00-00)
Unavailable
56
SPRING
(3J3-14938-00-00)
Unavailable
57
.. SPRING, THRTL STOP
3J3-14934-00-00
Unavailable
58
DIAPHRAGM ASSEMBLY
(3J3-14940-00-00)
Unavailable
59
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
60
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
61
WASHER, PLAIN (646)
92990-05600-00
Unavailable
62
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
63
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
64
WASHER, PLAIN (646)
92990-05600-00
Unavailable
65
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
66
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
67
CLIP, PIPE
(3J3-14139-00-00)
Unavailable
68
SHAFT, STARTER LVR
(3J3-14978-00-00)
Unavailable
69
PIPE, STARTER CON
(3J3-14988-01-00)
Unavailable
71
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
72
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
73
SCREW, PAN
98507-06014-00
Unavailable
74
WASHER, SPRING
92995-06100-00
Unavailable
