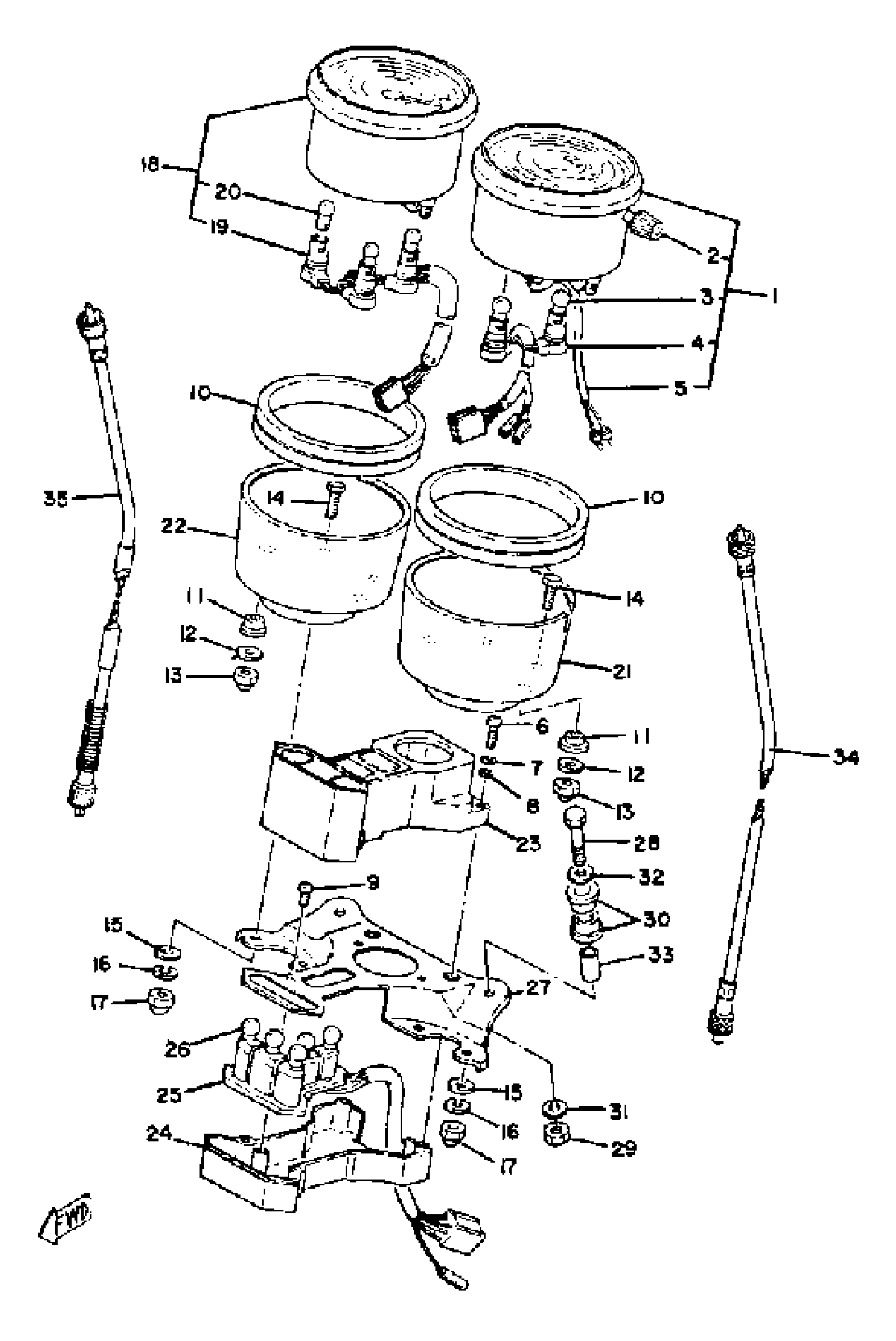

Yamaha XS850G (XS850) 1980 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

5H1-83570-A0-00

Unavailable

2

KNOB, TRIP METER

4SV-83578-00-00

$18.49

3

BULB (12V-3.4W)

123-83516-21-00

$4.26

4

SOCKET, METER

(3J6-83536-00-00)

Unavailable

5

. SENDER

2H7-83556-00-00

Unavailable

6

SCREW, PAN HEAD

98517-04020-00

$8.49

7

WASHER(6TA)

92907-04100-00

$8.49

8

WASHER(JF2)

92907-04600-00

$1.71

8

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

10

DAMPER

3H3-83513-00-00

$44.99

11

DAMPER, METER COVER FITTING

584-83523-00-00

Unavailable

12

. WASHER, PLAIN

92990-05200-00

Unavailable

13

NUT (CROWN)

95303-05800-00

Unavailable

14

BOLT

584-83546-00-00

$5.49

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

WASHER, SPRING

92995-06100-00

Unavailable

17

NUT (J17)

95380-06800-00

Unavailable

18

TACHOMETER ASSEMBLY

3J3-83540-A0-00

Unavailable

19

SOCKET CORD ASSEMBLY

(3J3-83520-01-00)

Unavailable

20

BULB (12V-3.4W)

123-83516-21-00

$4.26

21

COVER, SPEEDOMETER

584-83507-00-00

Unavailable

22

COVER, TACHOMETER

584-83508-00-00

Unavailable

23

PILOT BOX, UPPER

1J7-83568-71-00

Unavailable

24

PILOT BOX, LOWER

1J3-83569-71-00

Unavailable

25

SOCKET CORD ASSEMBLY

(3J3-83509-00-00)

Unavailable

26

BULB (12V-3.4W)

123-83516-21-00

$4.26

27

BRACKET, METER

(1J3-83519-00-00)

Unavailable

28

BOLT(8BC)

97017-06040-00

Unavailable

29

NUT, HEXAGON

95380-06600-00

Unavailable

30

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

WASHER, PLATE

90201-06380-00

Unavailable

33

COLLAR (877)

90387-06249-00

Unavailable

34

SPEEDOMETER CABLE ASSY

16M-83550-01-00

Unavailable

35

TACHOMETER CABLE

3J3-83560-00-00

Unavailable
