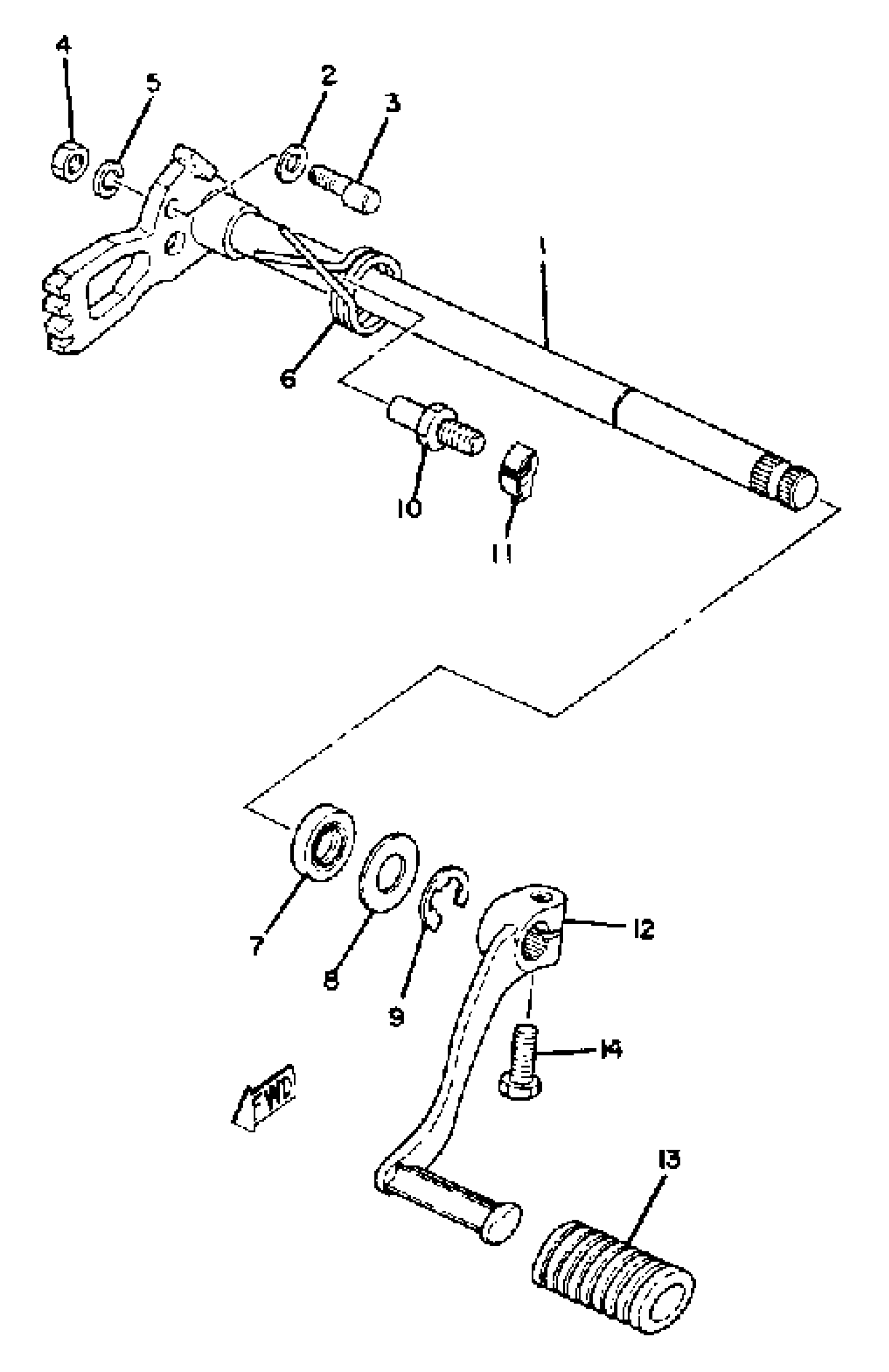

Yamaha XS850G (XS850) 1980 SHIFT CAM FORK Diagram

#

Description
Price

1

. SHIFT SHAFT ASSEMBLY1

1J7-18101-02-00

Unavailable

2

WASHER, PLATE

90201-06636-00

Unavailable

3

SCREW, SPEC''L SHAPE

90149-06142-00

Unavailable

4

NUT(6L2)

95333-08600-00

$2.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

SPRING TORSION 214181240000

90508-32052-00

$7.49

7

SEAL, OIL (30X)

93102-12321-00

$12.49

8

WASHER, PLATE (353)

90201-12575-00

$8.49

9

CIRCLIP

99006-10600-00

$9.49

10

BOLT (1J7)

90109-08441-00

$8.49

11

WASHER, LOCK

248-18139-09-00

Unavailable

12

PEDAL, SHIFT

2J2-18111-01-00

$51.99

13

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

14

BOLT, HEXAGON

97017-06020-00

$4.06
