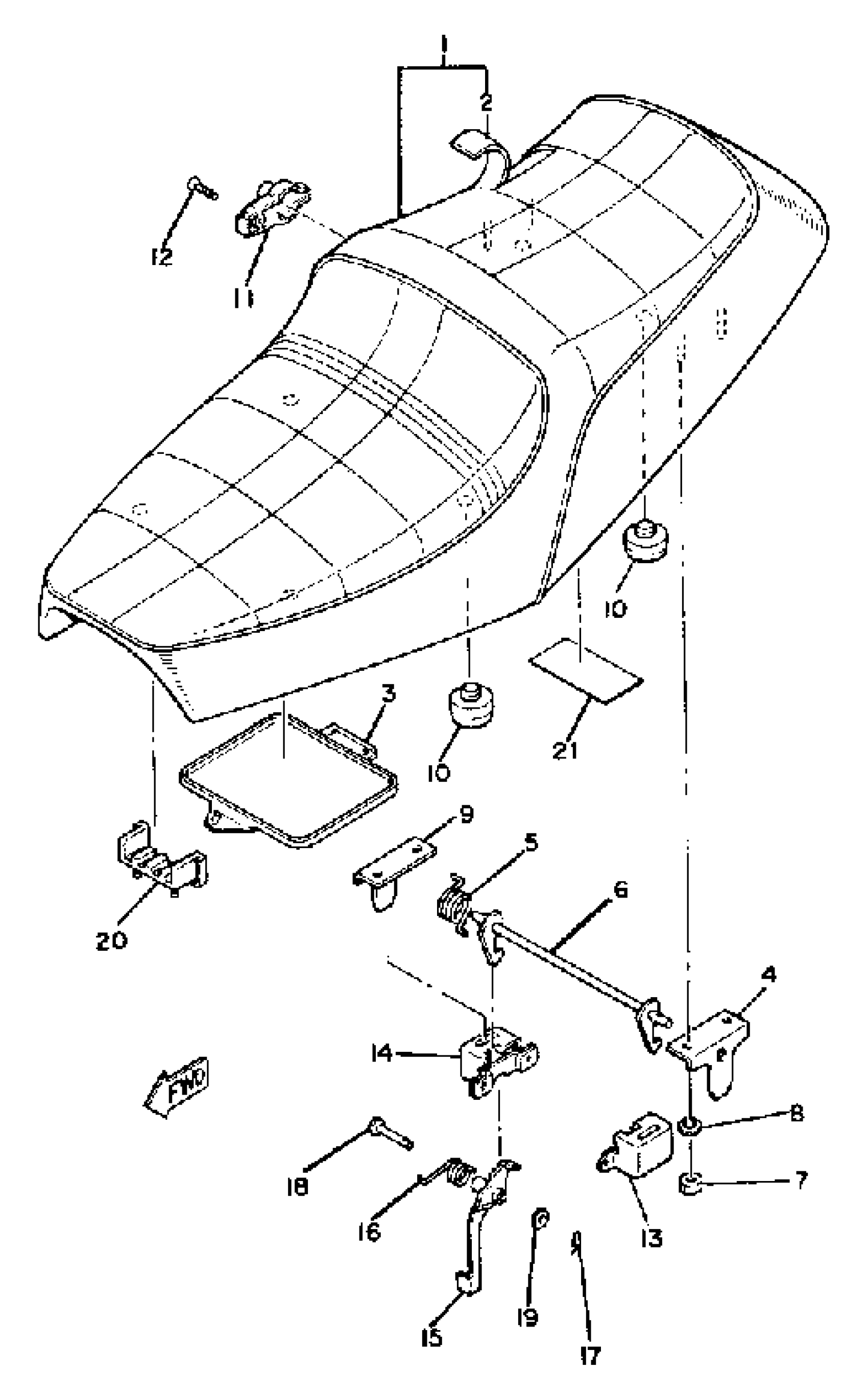

Yamaha XS850G (XS850) 1980 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

3J3-W2472-00-00

Unavailable

2

COVER, DOUBLE SEAT

(3J3-24731-00-00)

Unavailable

3

LID

2R6-28185-00-00

Unavailable

4

BRACKET, SEAT

3J3-24738-00-00

Unavailable

5

SPRING (3G1)

90508-20412-00

$7.49

6

HOOK, SEAT

3J3-24754-00-00

Unavailable

7

NUT, HEXAGON

95380-06600-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BRACKET, SEAT

(3J3-24748-00-00)

Unavailable

10

PAD, SEAT

1T4-24741-00-00

Unavailable

11

SEAT LOCK ASSY

3Y6-24705-00-00

Unavailable

12

SCREW, FLAT

98707-06030-00

$7.99

13

BRACKET, SEAT LVR 1

3J3-2475H-00-00

Unavailable

14

BRACKET, SEAT LVR 2

(3J3-2475J-00-00)

Unavailable

15

LEVER, SEAT

3J3-24776-00-00

Unavailable

16

SPRING

(3J3-24758-00-00)

Unavailable

17

CLIP (156-83525-00)

90468-10050-00

Unavailable

18

PIN, CLEVIS

91701-08028-00

Unavailable

19

.. WASHER, PLATE

92990-08600-00

Unavailable

20

DAMPER, SEAT

2H7-24724-00-00

Unavailable

21

PLATE, SPEC

(3J2-21683-01-00)

Unavailable
