MIDDLE DRIVE GEAR

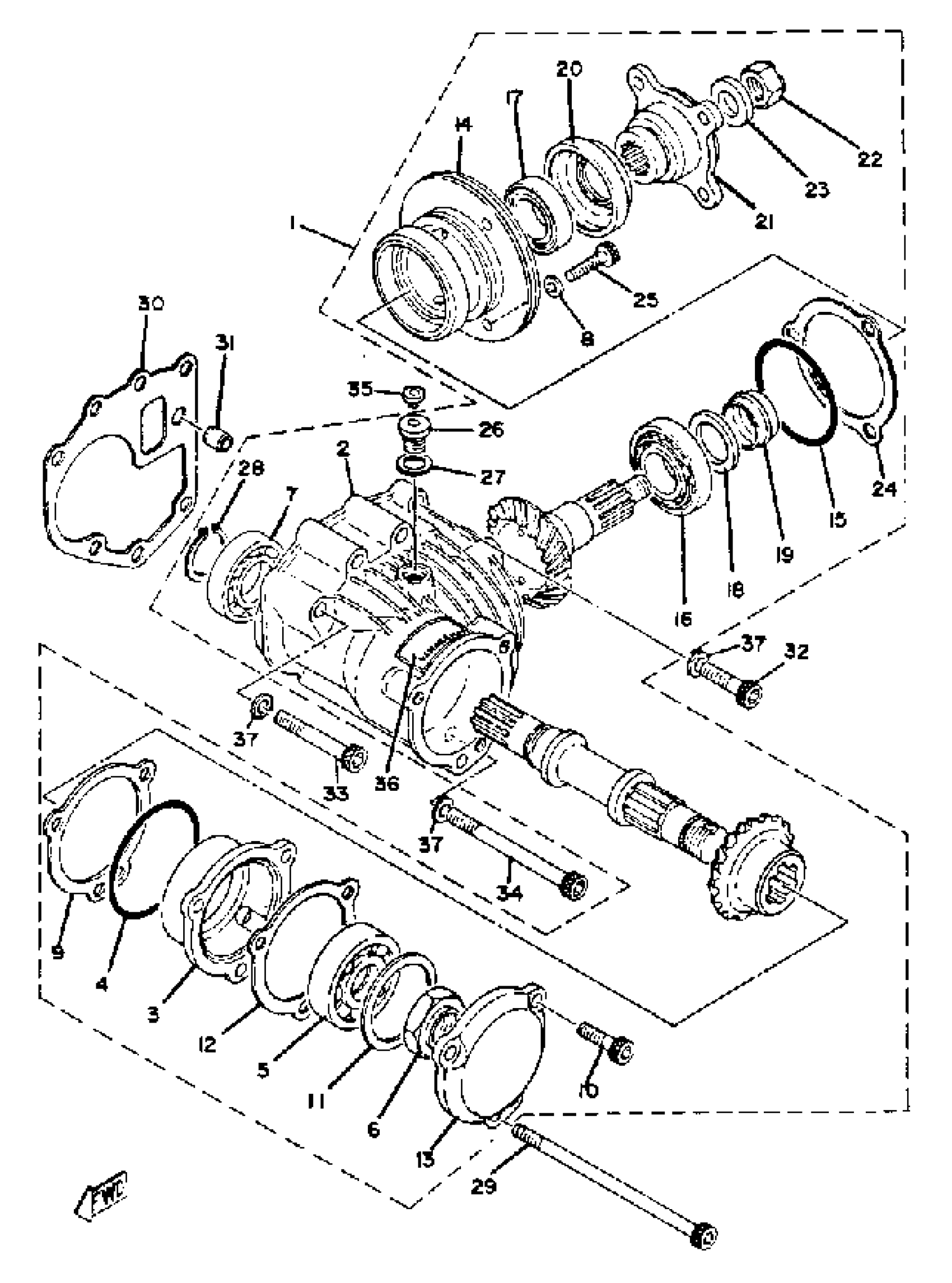

Yamaha XS850G (XS850) 1980 MIDDLE DRIVE GEAR Diagram
#
1
MIDDLE GR CASE ASSEMBLY
(3J2-17501-H0-00)
Unavailable
2
HOUSING, MIDDLE GR
(2H7-17511-00-00)
Unavailable
3
. HOUSING, BEARING
2H7-17521-00-00
Unavailable
4
O-RING (1J7)
93210-68347-00
Unavailable
6
. NUT, SPEC''L SHAPE
90179-24230-00
Unavailable
9
SHIM, PINION
(1J7-17531-Y0-00)
Unavailable
9
. SHIM, PINION
1J7-17531-Y0-15
Unavailable
12
GASKET,HOUSING CAP
1J7-17519-10-00
Unavailable
13
CAP, HOUSING
(2H7-17538-00-00)
Unavailable
14
HOUSING, BEARING
(2H7-17551-00-00)
Unavailable
15
O-RING (2H7)
93210-71360-00
Unavailable
16
BRG,TAPERED ROLLER 62MM KY
93332-00028-00
Unavailable
17
BRG,TAPERED ROLLER 52MM KY
93332-00024-00
Unavailable
18
WASHER, PLATE (1J7)
90201-25634-00
Unavailable
19
SPACER, EXPANSION
2H7-17571-01-00
Unavailable
20
OIL SEAL (35X63X16.5-1J7)
93101-35085-00
Unavailable
21
. FLANGE, MIDDLE GEAR
1J7-17555-Y0-00
Unavailable
22
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
23
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
24
. SHIM, PINION
2H7-17531-00-15
Unavailable
26
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
27
GASKET
214-11198-01-00
Unavailable
28
CIRCLIP(4A6)
99009-30400-00
Unavailable
29
BOLT,SOCKET HEAD
91317-08160-00
Unavailable
30
GASKET,MDL GR CASE
1J7-17518-10-00
Unavailable
31
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
32
BOLT, SOCKET
91314-08035-00
Unavailable
33
BOLT, SOCKET
91317-08060-00
Unavailable
34
BOLT, SOCKET HEAD
91316-08100-00
Unavailable
35
CAP, BOLT (371,447)
341-23469-00-00
Unavailable
36
LABEL, OIL CAUTION
1J7-46181-11-00
Unavailable
