Description

Price

1

SWITCH, HANDLE 2

2G2-83975-00-98

Unavailable

2

SCREW, PAN HEAD

98517-05030-00

$10.49

3

SCREW, PAN

98507-05040-00

$8.49

4

SWITCH, HANDLE 3

2G2-83973-00-98

Unavailable

5

SCREW, PAN HEAD

98517-05030-00

$10.49

6

BAND, SWITCH CORD

437-83936-01-00

$7.99

7

LEVER L

2H0-83912-31-00

$31.99

8

LEVER 2

4L0-83922-00-00

$46.99

9

SCREW (2L0)

90149-06131-00

$8.49

10

NUT HEXAGON 306839270000

90170-06010-00

$8.49

11

HOLDER, LEVER (L.H) (371,447)

341-82911-00-00

Unavailable

12

BOLT(1FG)

90109-06798-00

$8.49

13

O-RING (2H7)

93210-11368-00

$5.60

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

BOLT, HEXAGON

97013-06022-00

$0.90

16

WASHER, SPRING

92907-06100-00

Unavailable

17

BOLT (4L0)

90109-06577-00

Unavailable

18

BAND

341-26397-01-00

Unavailable

19

NUT, SELF-LOCKING

95617-06100-00

$8.49

20

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

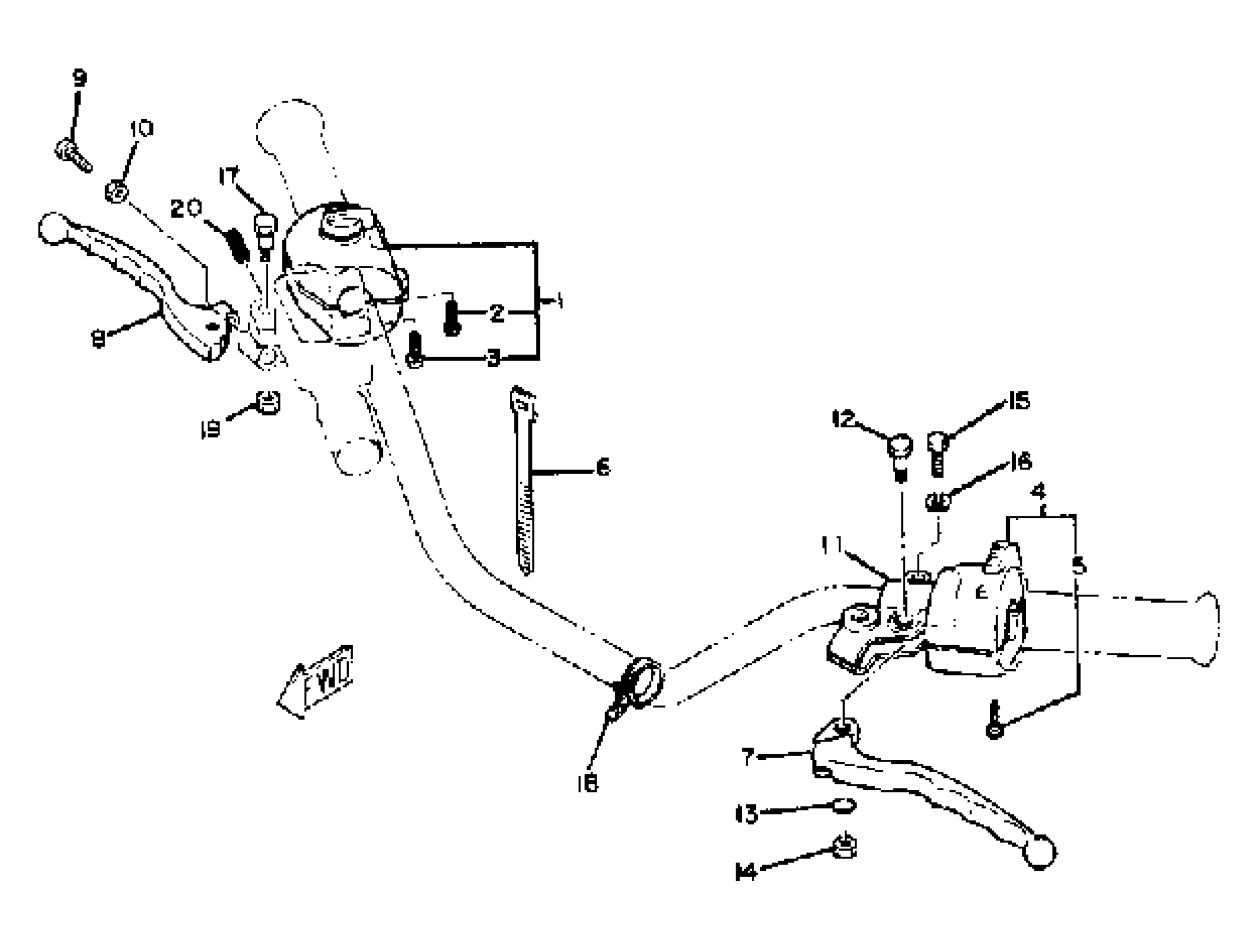

Yamaha XS850G (XS850) 1980 HANDLE SWITCH LEVER Diagram

SWITCH, HANDLE 2

SCREW, PAN HEAD

SCREW, PAN

SWITCH, HANDLE 3

SCREW, PAN HEAD

BAND, SWITCH CORD

LEVER L

LEVER 2

SCREW (2L0)

NUT HEXAGON 306839270000

HOLDER, LEVER (L.H) (371,447)

BOLT(1FG)

O-RING (2H7)

NUT, SELF-LOCKING

BOLT, HEXAGON

WASHER, SPRING

BOLT (4L0)

BAND

NUT, SELF-LOCKING

SPRING COMPRESSION306839240000
