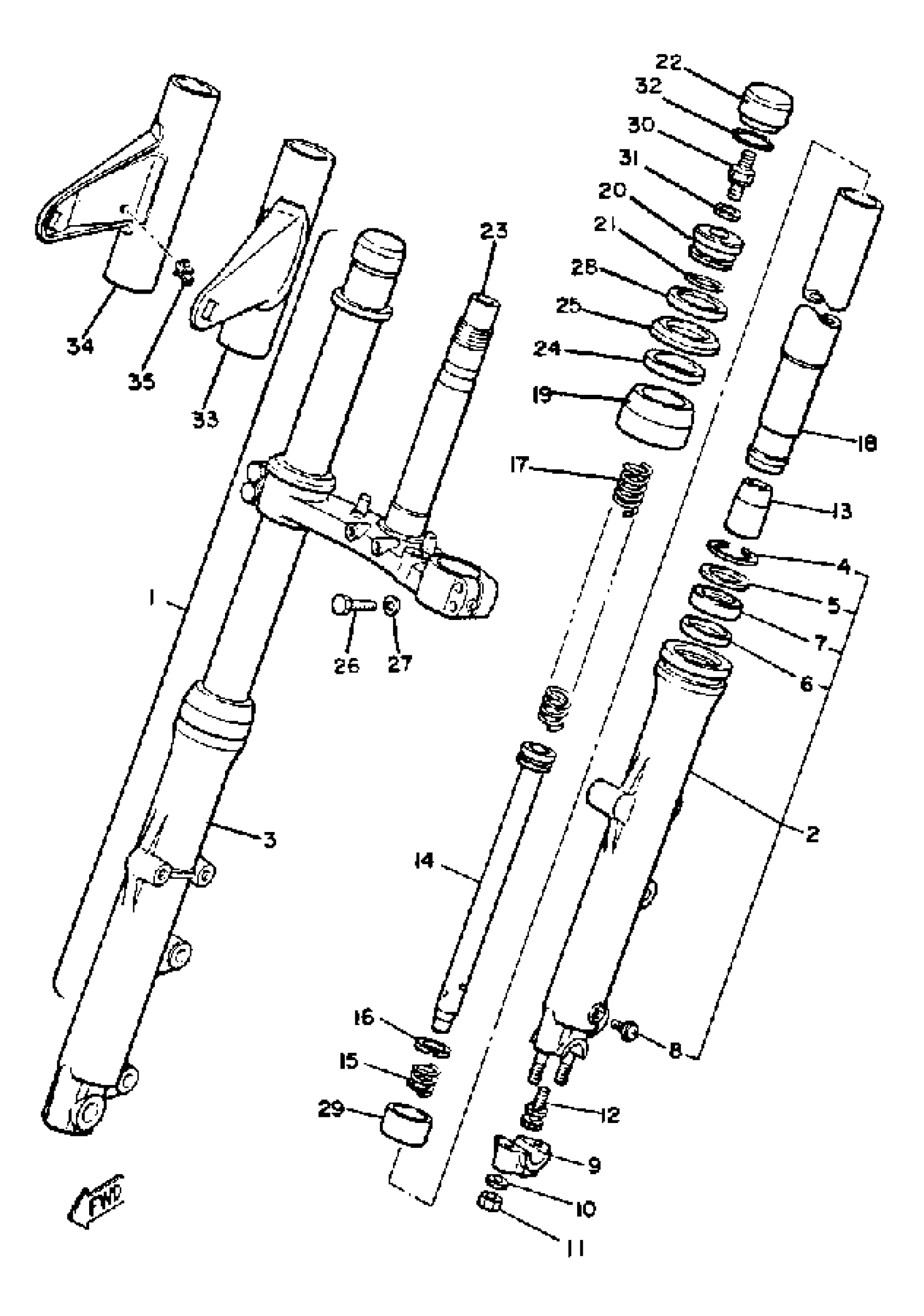

Yamaha XS850G (XS850) 1980 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3J3-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(3J3-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(3J3-23136-00-00)

Unavailable

4

CLIP, OIL SEAL

34X-23156-00-00

$8.99

5

WASHER, OIL SEAL

(3J6-23146-00-00)

Unavailable

6

O-RING

1KH-23147-00-00

$25.99

7

OIL SEAL

1KH-23145-00-00

$28.99

8

. PLUG, DRAIN

1E7-23119-00-00

Unavailable

9

HOLDER, AXLE

(1J7-23167-00-00)

Unavailable

10

.. WASHER, PLATE

92990-08600-00

Unavailable

11

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

12

BOLT

3M7-23181-00-00

$8.99

13

. SPACER, OIL LOCK

(1J3-23166-00-00)

Unavailable

14

CYLINDER, FRTFRK

(2G2-23170-00-00)

Unavailable

15

. SPRING, REBOUND

1J3-23151-00-00

Unavailable

16

. RING, PISTON FRTFRK

1T4-23157-00-00

Unavailable

17

SPRING, FRONT FORK

(2F3-23141-10-00)

Unavailable

17

SPRING, FRONT FORK

(3J3-23141-00-00)

Unavailable

18

. INNER TUBE 1

3J3-23110-00-00

Unavailable

19

. SEAL, DUST

1T4-23144-00-00

Unavailable

20

BOLT, CAP

(3J3-23111-00-00)

Unavailable

21

O-R1NG(N04)

93210-221A0-00

Unavailable

22

. CAP, FRONT FORK

2F3-23168-01-00

Unavailable

23

. UNDER BRACKET

3J3-23340-00-33

Unavailable

24

. GASKET

23W-23163-00-00

Unavailable

25

GUIDE, COVER LOWER

(3J3-23116-00-00)

Unavailable

26

. BOLT 1

3J3-23346-00-00

Unavailable

27

. WASHER, SPRING LWR

3J3-23159-00-00

Unavailable

28

. GUIDE, COVER UPPER

1T4-23115-00-00

Unavailable

29

METAL, SLIDE 2

(3J3-23135-00-00)

Unavailable

30

. AIR VALVE

5K7-23190-00-00

Unavailable

31

O-RING (26H)

93210-06632-00

Unavailable

32

. CIRCLIP

1J3-23183-01-00

Unavailable

33

COVER, UPPER 1

3J3-23121-00-93

Unavailable

34

COVER, UPPER 2

3J3-23131-00-93

Unavailable

35

CLAMP (1J7)

90464-16025-00

Unavailable
