Description

Price

1

DISC, BRAKE

1J3-25831-50-00

Unavailable

2

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

3

WASHER, LOCK

3H5-25834-00-00

Unavailable

4

CALIPER ASSEMBLY RH

3H5-25810-02-00

Unavailable

5

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

6

BOOT, CALIPER

1J3-25917-00-00

Unavailable

7

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

8

. BOLT, WASHER BASED

90105-08145-00

Unavailable

9

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

10

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

11

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

12

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

13

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

14

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

15

CALIPER ASSEMBLY LH

(3H5-25810-10-00)

Unavailable

16

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

17

BOOT, CALIPER

1J3-25917-00-00

Unavailable

18

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

19

. BOLT, WASHER BASED

90105-08145-00

Unavailable

20

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

21

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

22

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

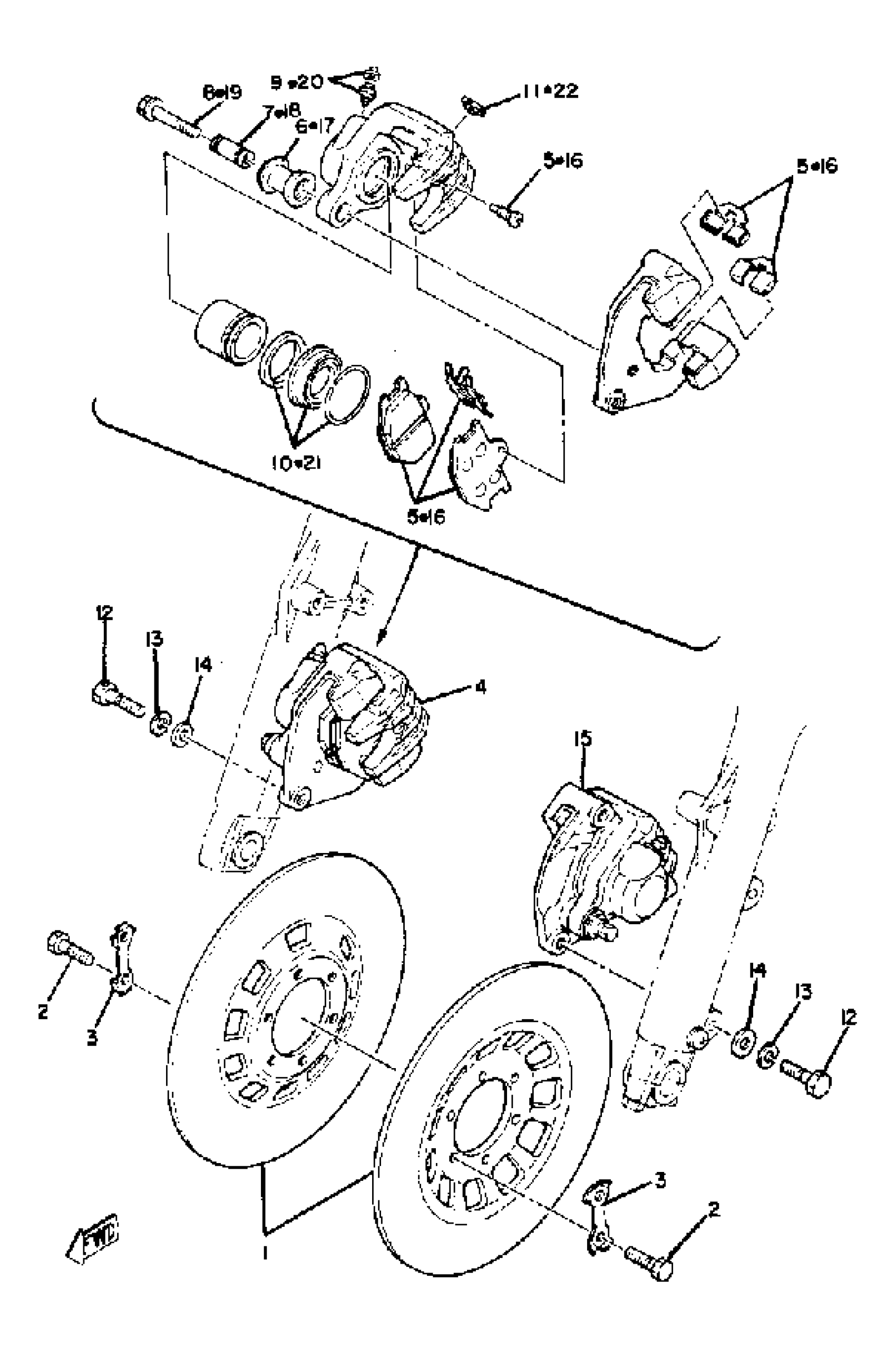

Yamaha XS850G (XS850) 1980 FRONT BRAKE CALIPER Diagram

DISC, BRAKE

BOLT, HEXAGON (1L9)

WASHER, LOCK

CALIPER ASSEMBLY RH

BRAKE PAD KIT

BOOT, CALIPER

. SLEEVE, CALIPER

. BOLT, WASHER BASED

BLEED SCREW KIT

CALIPER SEAL KIT

. CAP, INDICATOR

BOLT, WASHER BASED(3VD)

YBS67-10 WASHER, SPRING

958-69527-00 WASHER, PLAIN

CALIPER ASSEMBLY LH

BRAKE PAD KIT

BOOT, CALIPER

. SLEEVE, CALIPER

. BOLT, WASHER BASED

BLEED SCREW KIT

CALIPER SEAL KIT

. CAP, INDICATOR
