Description

Price

1

FRAME

(3J3-21110-02-33)

Unavailable

2

BOLT, FLANGE

95814-10040-00

$4.72

3

NUT, U

95617-10100-00

$8.49

4

BOLT

90109-12501-00

Unavailable

5

NUT, HEXAGON SMALL

95317-12700-00

$8.49

6

WASHER, SPEC''L SHAP

(90209-10147-00)

Unavailable

7

STAY, ENGINE 3

2G2-21316-00-00

Unavailable

8

BRACKET, FRT LWR 2

2G2-21418-00-00

Unavailable

9

NUT(6L2)

95333-08600-00

$2.49

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

DAMPER, RUBBER 1

2G2-21485-00-00

Unavailable

12

DAMPER 2

2G2-21486-00-00

Unavailable

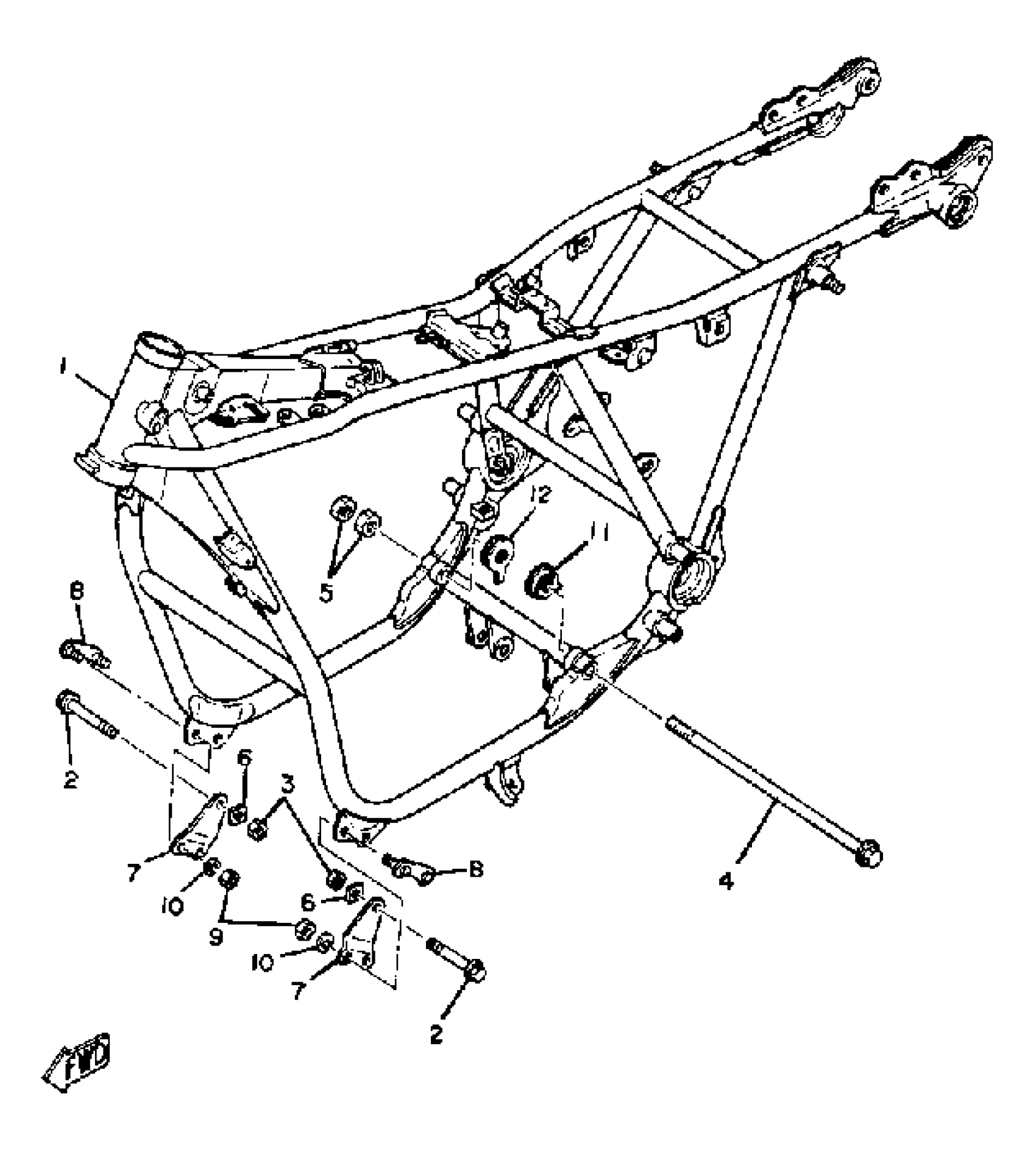

Yamaha XS850G (XS850) 1980 FRAME Diagram

FRAME

BOLT, FLANGE

NUT, U

BOLT

NUT, HEXAGON SMALL

WASHER, SPEC''L SHAP

STAY, ENGINE 3

BRACKET, FRT LWR 2

NUT(6L2)

YBS67-8 WASHER, SPRING

DAMPER, RUBBER 1

DAMPER 2
