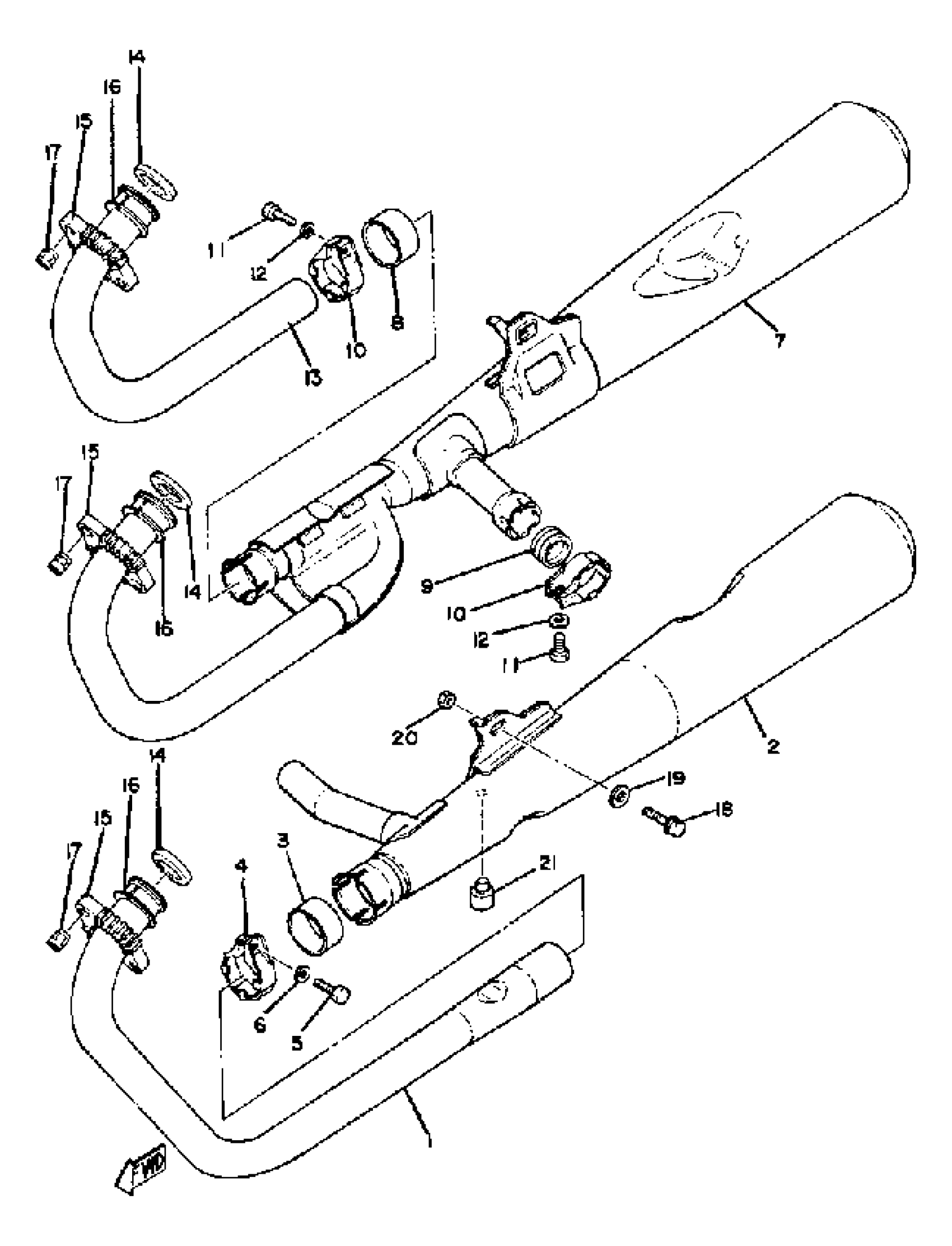

Yamaha XS850G (XS850) 1980 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

(3J3-14611-00-00)

Unavailable

2

MUFFLER L

3J3-14711-02-00

Unavailable

3

GASKET, MUFF

1J7-14714-10-00

Unavailable

4

BAND, silence 4

26H-14797-00-00

Unavailable

5

BOLT (682)

97013-08025-00

$8.49

6

.. WASHER, PLATE

92990-08600-00

Unavailable

7

MUFFLER ASSEMBLY R

3J3-14720-02-00

Unavailable

8

GASKET, MUFF

1J7-14714-10-00

Unavailable

9

GASKET, EXHAUST 4

3JJ-14653-00-00

$42.99

10

BAND, silence 4

26H-14797-00-00

Unavailable

11

BOLT (682)

97013-08025-00

$8.49

12

.. WASHER, PLATE

92990-08600-00

Unavailable

13

PIPE, EXHAUST 3

1T4-14631-10-00

Unavailable

14

GASKET, EXHAUST PIPE

4BE-14613-00-00

$9.99

15

NUT, RING

(4H1-14612-00-00)

Unavailable

16

FLANGE, EXST PIPE

1J7-14614-00-00

Unavailable

17

NUT (371)

90179-08004-00

Unavailable

18

BOLT, FLANGE

95814-10040-00

Unavailable

19

WASHER, PLATE (2Y4)

90201-10714-00

Unavailable

20

NUT, SPEC''L SHAPE

90179-10276-00

Unavailable

21

STOPPER MAIN STAND

278-27114-00-00

Unavailable
