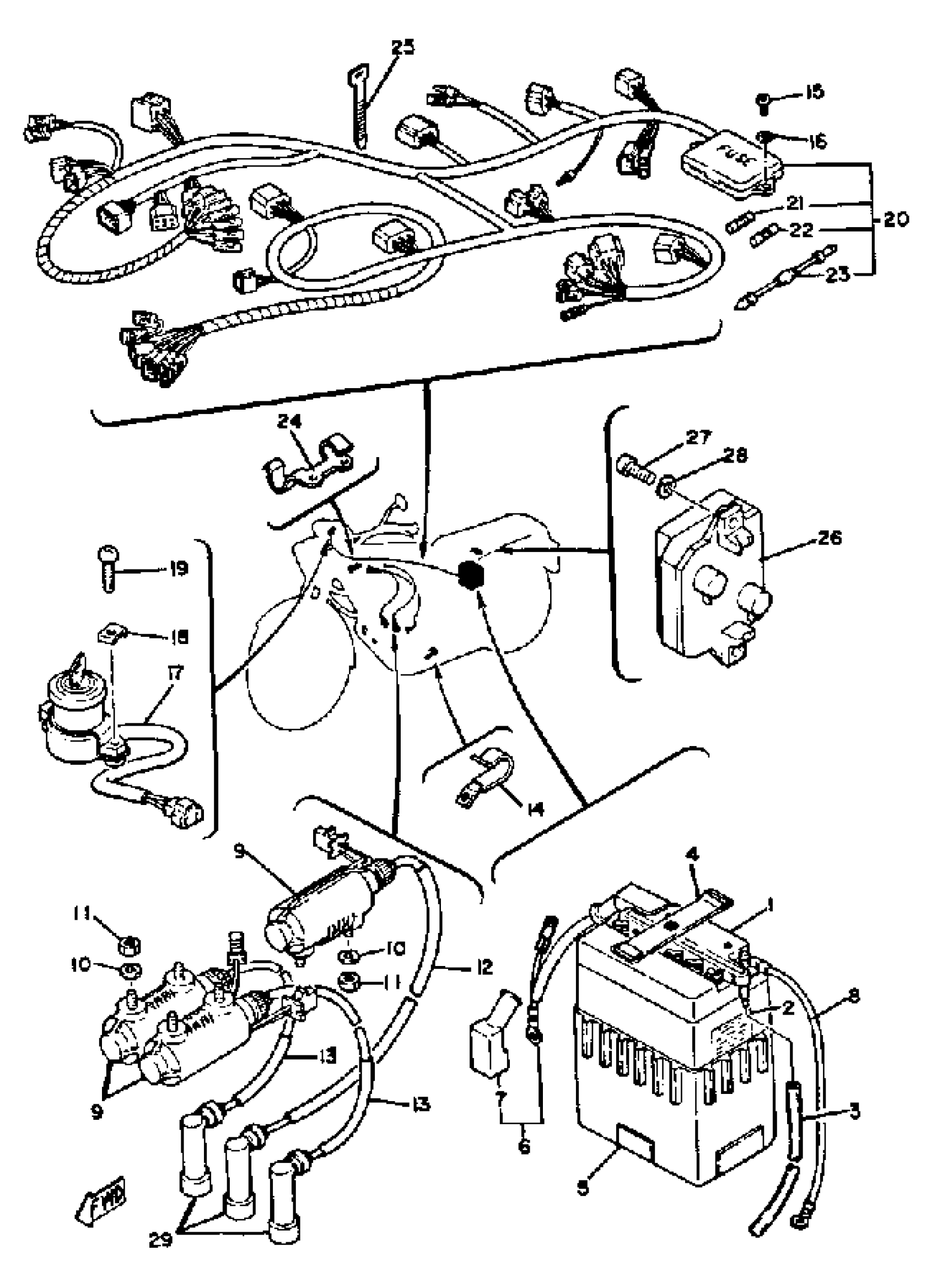

Yamaha XS850G (XS850) 1980 ELECTRICAL 1 Diagram

#

Description
Price

1

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

HOSE

90445-08380-00

Unavailable

4

BAND,BATTERY

7H3-82131-00-00

$17.49

5

SEAT, BATTERY

447-82122-00-00

Unavailable

6

WIRE, PLUS LEAD

1J7-82115-00-00

Unavailable

7

COVER, LEAD WIRE

(1J7-82119-00-00)

Unavailable

8

WIRE, MINUS LEAD

1J7-82116-00-00

Unavailable

9

IGNITION COIL ASSY

4GR-81958-00-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT(650)

95380-06700-00

$8.49

12

CORD, high tension 2

41R-82342-00-00

Unavailable

13

CORD, HIGH TENSION 1

4X7-82341-00-00

$80.99

14

CLAMP(4MX)

90465-06376-00

$9.49

15

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

16

WASHER, PLAIN (646)

92990-05600-00

Unavailable

17

MAIN SWITCH ASSEMBLY

2F3-82508-50-00

Unavailable

18

WASHER, SPECIAL

533-82517-00-00

Unavailable

19

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

20

WIRE HARNESS ASSEMBLY

(3J3-82590-50-00)

Unavailable

21

FUSE

1A0-82151-00-00

Unavailable

22

FUSE

1A0-82161-00-00

Unavailable

23

RECTIFIER 2

3H5-81980-00-00

Unavailable

24

CLAMP

(1J7-82594-01-00)

Unavailable

25

BAND, SWITCH CORD

437-83936-11-00

Unavailable

26

IGNITOR UNIT ASSEMBLY 1

2F3-82305-11-00

Unavailable

27

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

28

WASHER, PLATE

90201-06020-00

Unavailable

29

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

29

PLUG CAP ASSY

1J7-82370-00-00

Unavailable
