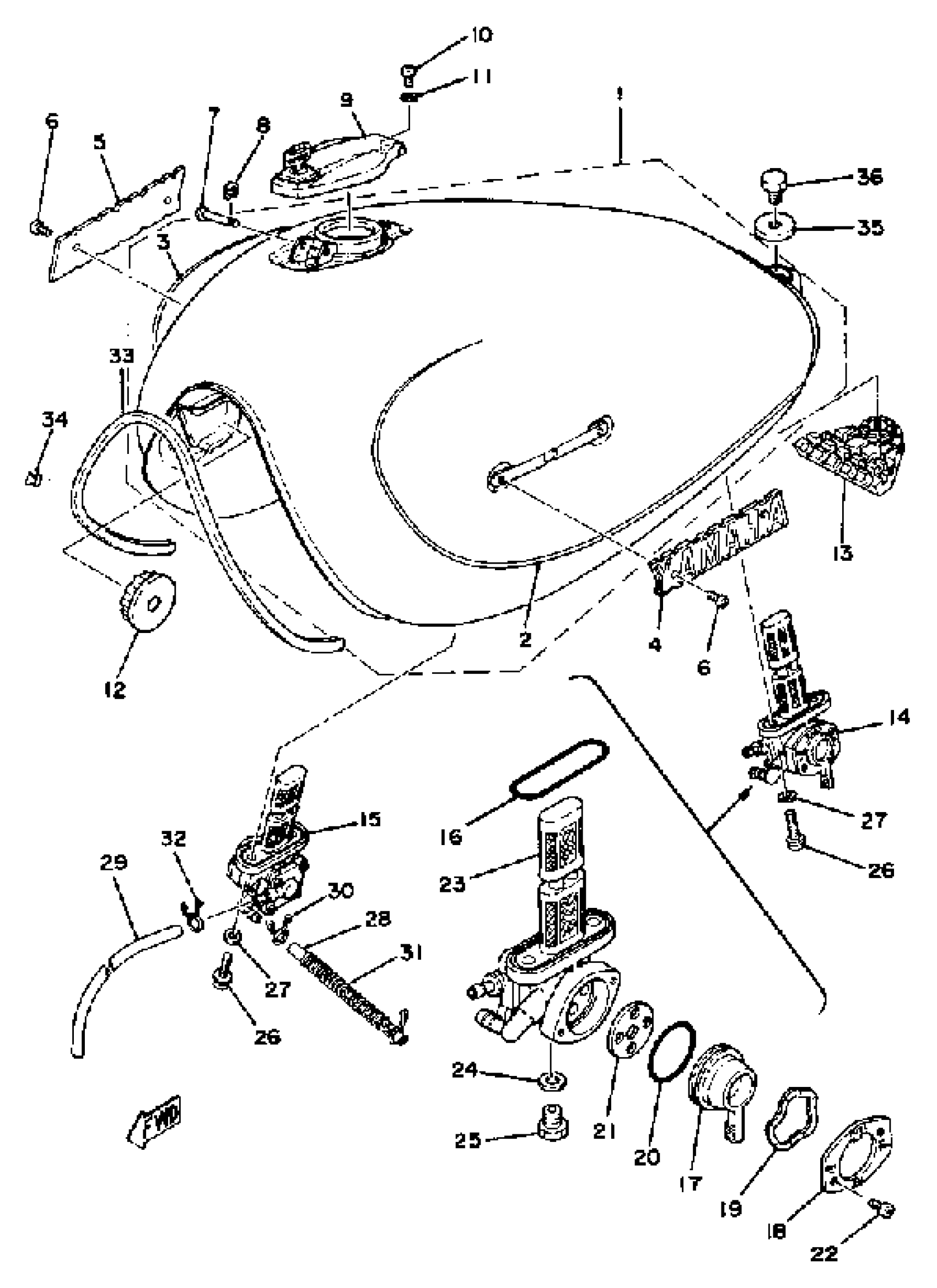

Yamaha XS750SF (XS750S) 1979 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

2G2-24110-01-4E

Unavailable

1

FUEL TANK

(2G2-24110-01-E9)

Unavailable

1

FUEL TANK

2G2-24110-01-H9

Unavailable

2

GRAPHIC, FUEL TNK 1

(2G2-24244-00-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(2G2-24245-00-00)

Unavailable

4

EMBLEM 1

2G2-24161-00-00

Unavailable

5

EMBLEM 2

2G2-24162-00-00

Unavailable

6

SCREW (2F0)

90152-04006-00

$10.49

7

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

8

CIRCLIP (604)

93430-02001-00

$8.49

9

CAP ASSY

4R0-24602-01-00

Unavailable

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

DAMPER, LOCATING 1

1J7-24181-01-00

Unavailable

13

DAMPER, TANK LOCATING 2

1J7-24182-01-00

$34.99

14

FUEL COCK ASSEMBLY 1

2G2-24500-05-00

Unavailable

14

HOSE (L450)

90445-10144-00

Unavailable

15

UNAVAILABLE IN PRICE BOOK (99999-01071) (2G2-24510-0)

2G2-24510-05-

Unavailable

15

HOSE (L450)

90445-10144-00

Unavailable

16

O-RING

2G2-24512-00-00

Unavailable

17

LEVER, COCK

(2G2-24524-00-00)

Unavailable

17

LEVER, COCK

(2G2-24524-10-00)

Unavailable

18

PLATE, LVR FITTING

(2G2-24525-00-00)

Unavailable

18

. PLATE, LVR FITTING

2G2-24525-10-00

Unavailable

19

. WASHER, WAVE

16G-24518-00-00

Unavailable

20

O-RING

2G2-24534-00-00

Unavailable

21

VALVE

16G-24523-00-00

Unavailable

22

SCREW, OVAL HEAD

(98601-03010-00)

Unavailable

24

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

25

. PLUG, DRAIN

2G2-24543-00-00

Unavailable

26

SCREW 366241430000

90149-06008-00

Unavailable

27

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

28

HOSE (L450)

90445-10144-00

Unavailable

29

HOSE (L200)

90445-07176-00

Unavailable

30

CLIP

90467-090A2-00

Unavailable

31

SPRING, COMPRESSION

90504-06023-00

Unavailable

32

CLIP (1J7)

90467-07029-00

Unavailable

33

PLATE, MOLD

2G2-24189-00-00

Unavailable

34

CLIP

90468-03063-00

Unavailable

35

WASHER

90209-08008-00

Unavailable

36

BOLT(62E)

97013-08012-00

Unavailable
