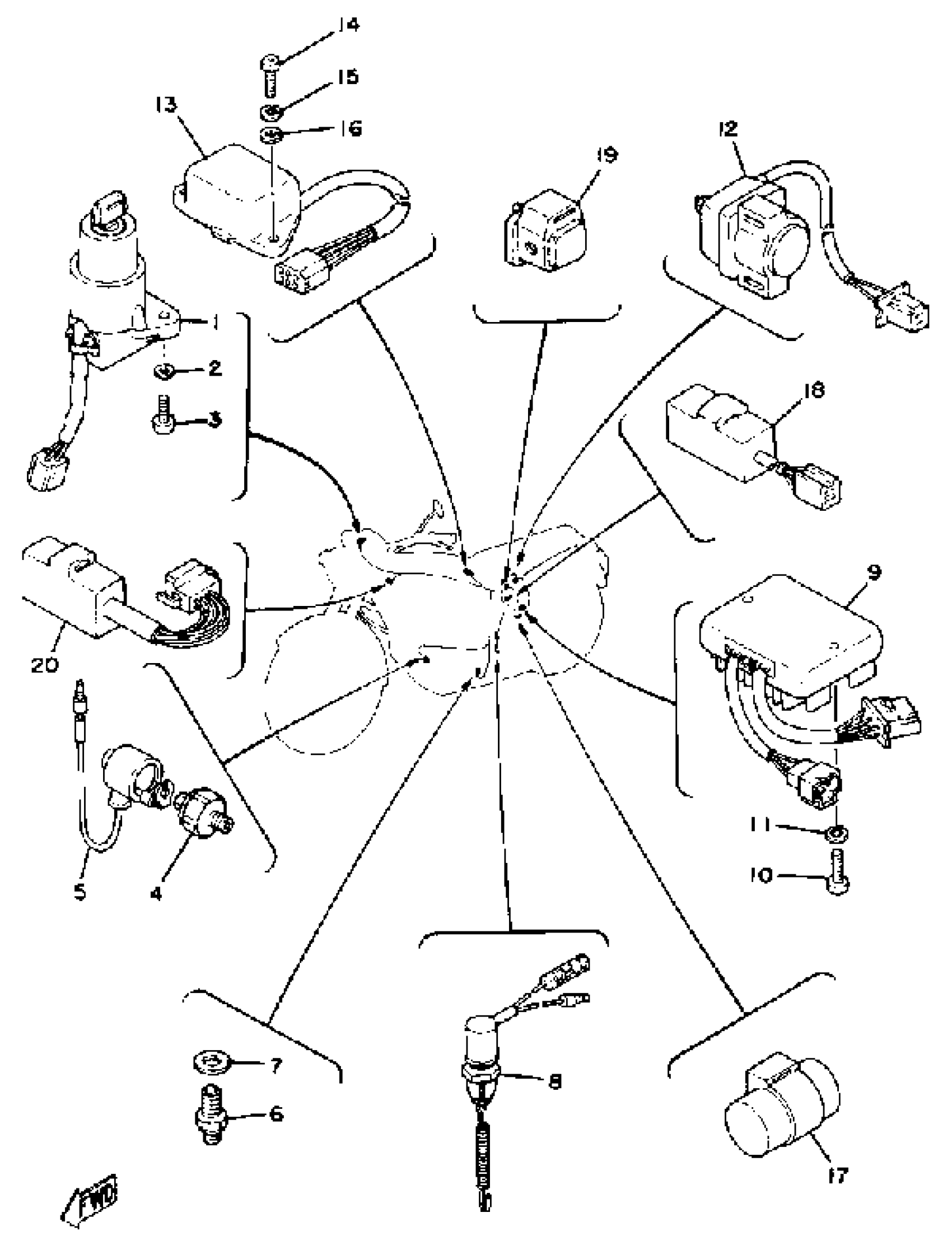

Yamaha XS750SF (XS750S) 1979 ELECTRICAL 2 Diagram

#

Description
Price

1

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

2

WASHER, PLAIN (646)

92990-06600-00

$2.80

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

5

WIRE, LEAD

(1J7-82507-00-00)

Unavailable

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

7

GASKET (5R6)

90430-10171-00

$3.18

8

STOP SWITCH ASSY

2F1-82530-03-00

$44.99

9

RECTIFIER/REG ASSEMBLY

1T4-81960-A0-00

Unavailable

10

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

11

WASHER, SPRING

92995-06100-00

Unavailable

12

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

Unavailable

13

RESERVE LIGHTING UNIT ASSEMBLY

2F9-84308-00-00

Unavailable

14

SCREW PAN HEAD

98580-06020-00

$8.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

$2.80

17

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

18

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

19

RELAY ASSEMBLY

2H7-81950-10-00

Unavailable

20

CHECKER, LIGHT

2G2-84708-01-00

Unavailable
