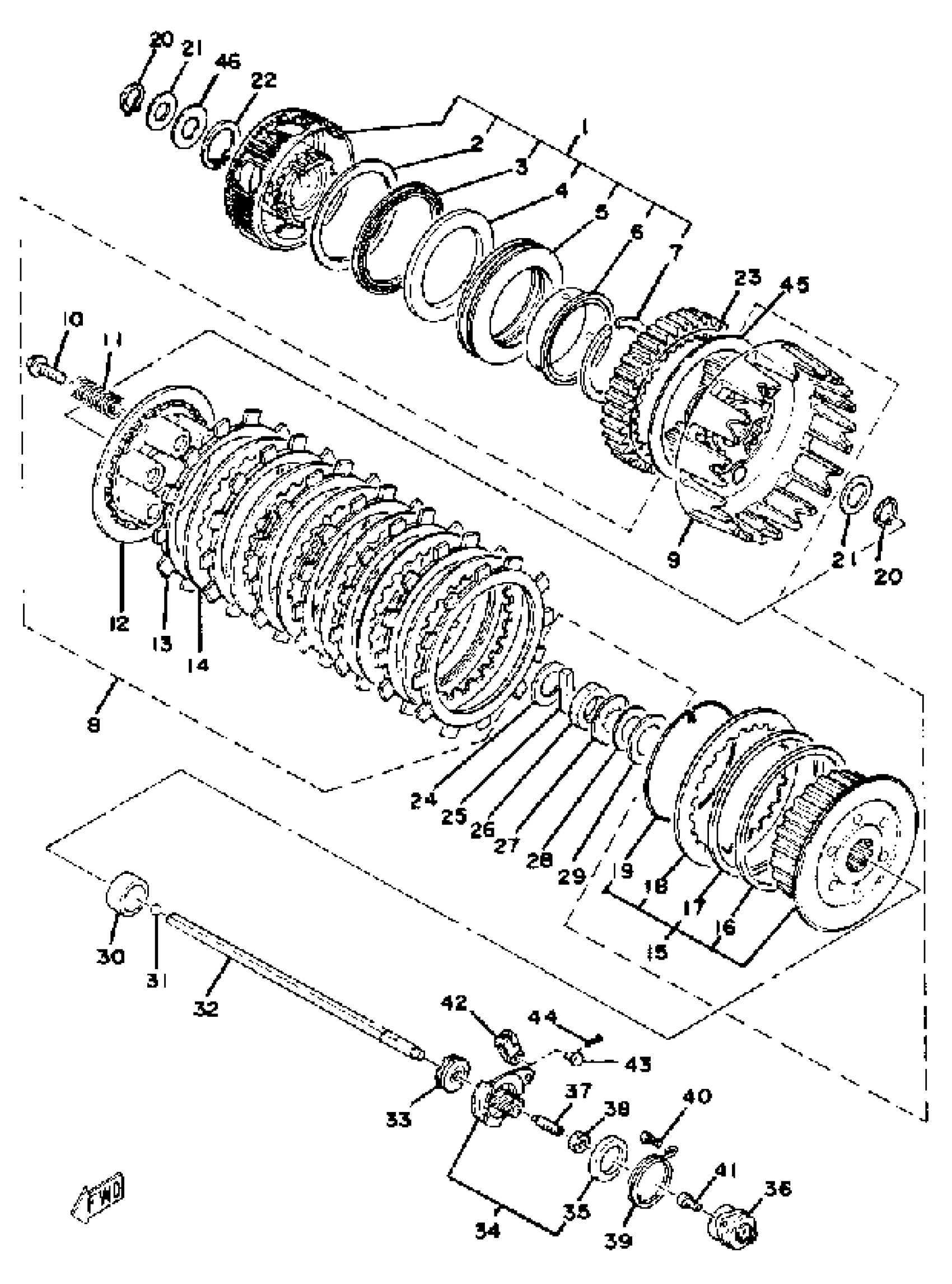

Yamaha XS750SF (XS750S) 1979 CLUTCH Diagram
#
1
CLUTCH DAMPER ASSEMBLY
(2F3-16306-01-00)
Unavailable
2
WASHER, PLATE
(90201-76604-00)
Unavailable
3
BEARING, FLAT #40
(93340-27601-00)
Unavailable
4
WASHER, PLATE
(90201-69603-00)
Unavailable
5
SPRING, DAMPER
(1J7-16318-00-00)
Unavailable
6
COLLAR
(90387-64672-00)
Unavailable
7
. CIRCLIP, OUTER
93440-64047-00
Unavailable
8
CLUTCH ASSEMBLY
(1T5-16301-02-00)
Unavailable
9
. CLUTCH HOUSING ASSEMBLY
1J7-16310-03-00
Unavailable
12
. PLATE, PRESSURE 1
1J7-16351-00-00
Unavailable
15
. CLUTCH BOSS ASSEMBLY
1T5-16370-00-00
Unavailable
16
PLATE, SEAT
1J7-16384-00-00
Unavailable
17
.. SPRING, CLUTCH BOSS
1J7-16383-01-00
Unavailable
19
RING, CLUTCH BOSS
1J7-16385-00-00
Unavailable
20
CIRCLIP(1AR)
99009-20400-00
Unavailable
21
WASHER, PLATE
90201-21599-00
Unavailable
22
CIRCLIP, OUTER
93440-31068-00
Unavailable
23
GEAR, PRI DRIVEN
(2F3-16151-01-00)
Unavailable
24
WASHER, PLATE
90201-22625-00
Unavailable
25
ROD, PUSH 1
1J7-16356-01-00
Unavailable
26
NUT, HEXAGON
90170-24203-00
Unavailable
27
WASHER, LOCK
90215-21130-00
Unavailable
28
WASHER, CONICAL SPR
90208-25021-00
Unavailable
29
WASHER PLATE 371115580000
90201-25291-00
Unavailable
30
SPACER
(90560-25160-00)
Unavailable
31
BALL
93505-16006-00
Unavailable
32
ROD, PUSH 2
1J7-16357-01-00
Unavailable
33
OIL SEAL, SD-TYPE
93102-08205-00
Unavailable
34
PUSH LEVER ASSEMBLY
1J7-16340-01-00
Unavailable
35
SEAL, DUST
214-16347-01-00
Unavailable
36
BALL SCRW HSNG ASSEMBLY (256-16343-01)
1J7-16304-00-00
Unavailable
37
BOLT SET 256163430100
90113-08021-00
Unavailable
38
NUT
90179-08179-00
Unavailable
39
SPRING, TORSION
90508-18313-00
Unavailable
40
HOOK, SPRING
132-16346-00-00
Unavailable
41
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
42
JOINT
214-16389-00-00
Unavailable
43
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
44
. PIN, COTTER
91401-10015-00
Unavailable
45
WASHER, PLATE
90201-99693-00
Unavailable
46
SHIM
2F3-16391-00-00
Unavailable
