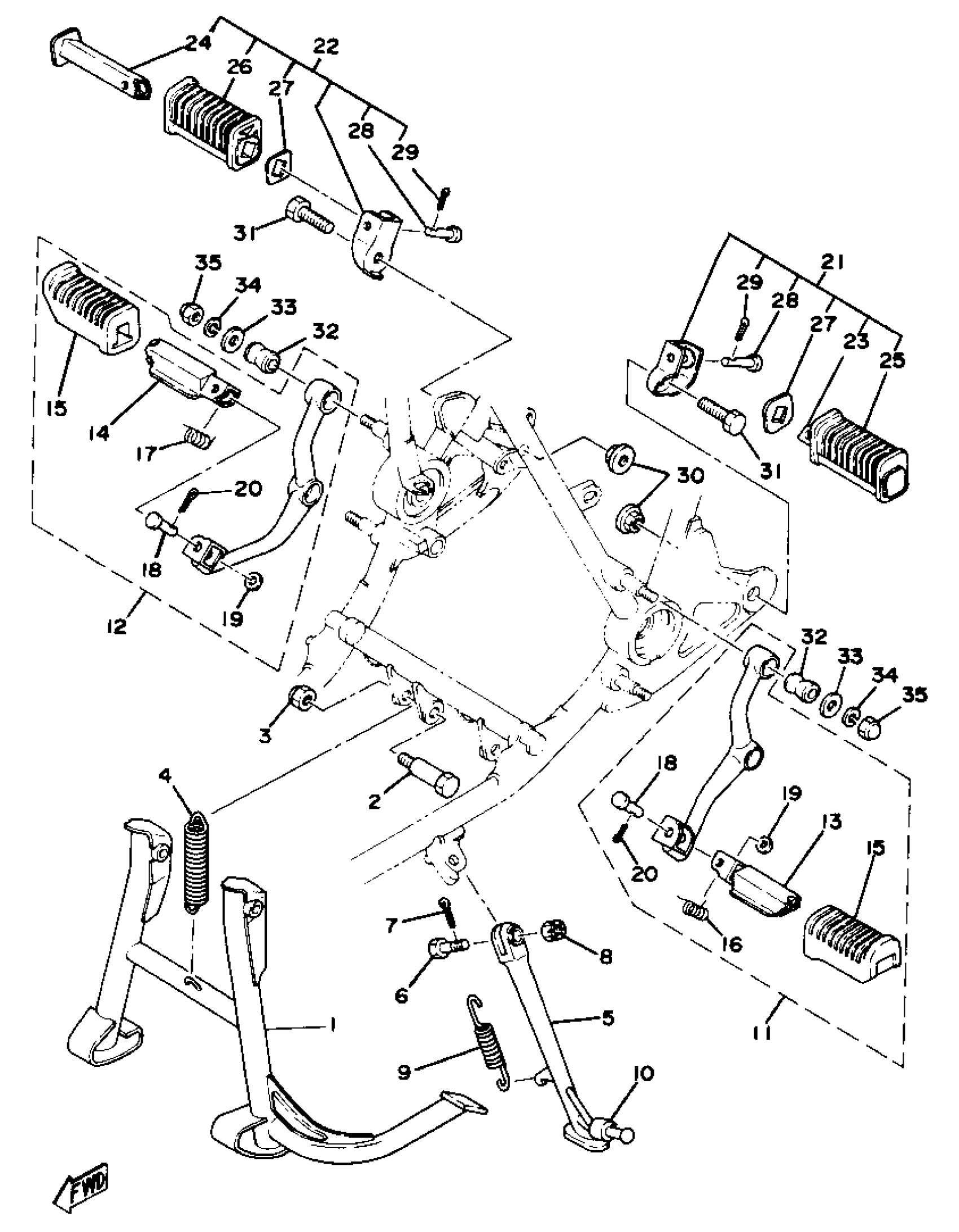

Yamaha XS750SE (XS750S) 1978 STAND - FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

2G2-27111-01-00

Unavailable

2

BOLT

90109-10440-00

Unavailable

3

NUT, U

95617-10100-00

$8.49

4

SPRING, TENSION

90506-40145-00

Unavailable

5

STAND, SIDE

(2G2-27311-01-00)

Unavailable

6

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

7

PIN, COTTER

91490-20025-00

$1.99

8

NUT,CASTLE

90171-10049-00

Unavailable

9

SPRING, TENSION (1J7)

90506-28146-00

$17.99

10

STOPPER

278-27314-00-00

Unavailable

11

FRT FOOTREST ASSEMBLY L

2G2-27410-00-00

Unavailable

12

FRT FOOTREST ASSEMBLY R

2G2-27420-00-00

Unavailable

13

FOOTREST

1J7-27451-00-00

Unavailable

14

. FOOTREST

1J7-27461-00-00

Unavailable

15

COVER, FOOTREST

4L0-27423-00-00

$49.99

16

. SPRING, TORSION

90508-20154-00

Unavailable

17

SPRING TORSION 371274560000

90508-20155-00

Unavailable

18

PIN, WITH HOLE (2G2)

90240-08063-00

Unavailable

19

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

20

PIN COTTER

91490-30025-00

Unavailable

21

RR FOOTREST ASSEMBLY 1

1T4-27430-00-00

Unavailable

22

RR FOOTREST ASSEMBLY 2

1T4-27440-00-00

Unavailable

23

FOOTREST, REAR 1

447-27431-00-00

Unavailable

24

FOOTREST, REAR 2

447-27441-00-00

Unavailable

25

. COVER, RR FOOTREST

1J7-27433-00-00

Unavailable

26

. COVER, RR FOOTREST

1J7-27444-00-00

Unavailable

27

WASHER 447274370000

90209-18070-00

Unavailable

28

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

29

PIN, COTTER

91490-16020-00

Unavailable

30

NUT

(2G2-27436-00-00)

Unavailable

31

BOLT

7JY-23471-00-00

Unavailable

32

DAMPER, FOOTREST

256-27414-00-00

Unavailable

33

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

34

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

35

NUT, CROWN(3BM)

90176-10073-00

Unavailable
