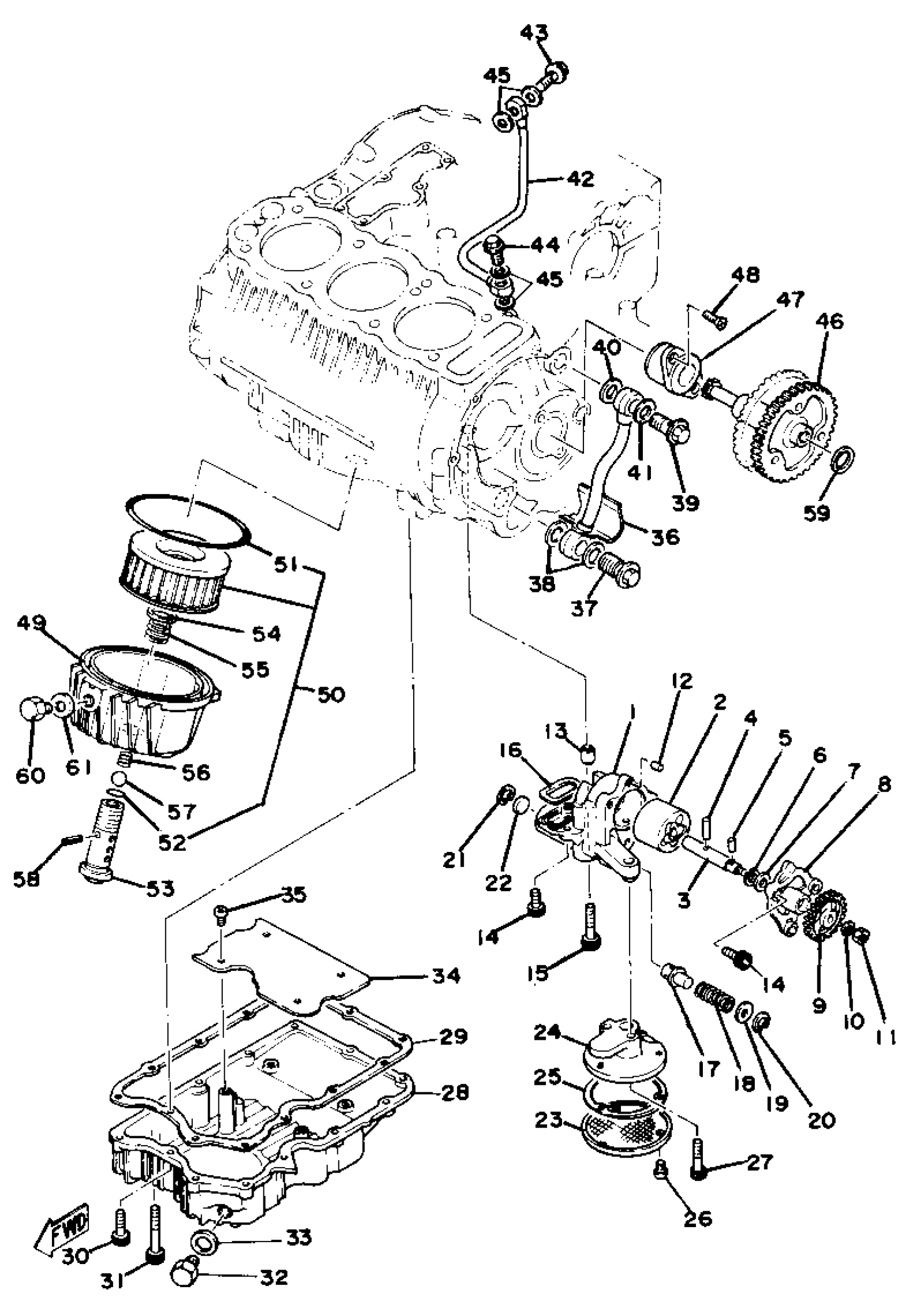

Yamaha XS750SE (XS750S) 1978 OIL PUMP - OIL CLEANER Diagram

#

Description

Price

1

COVER, PUMP

(2F3-13316-01-00)

Unavailable

1

. HOUSING, ROTOR

2F3-13336-02-00

Unavailable

1

HOUSING ROTOR

(99999-01081-00)

Unavailable

2

ROTOR ASSEMBLY 1

2F3-13310-01-00

Unavailable

3

COVER, PUMP

(2F3-13306-00-00)

Unavailable

4

PIN,DOWEL

93603-17070-00

$4.14

5

PIN,DOWEL (603)

93603-12007-00

$2.55

6

CIRCLIP (341)

93440-11024-00

$7.49

7

WASHER, PLATE

(90201-11154-00)

Unavailable

8

COVER, PUMP

(2F3-13316-01-00)

Unavailable

8

. HOUSING, ROTOR

2F3-13336-02-00

Unavailable

8

HOUSING ROTOR

(99999-01081-00)

Unavailable

9

GEAR, PUMP DRIVEN 2

(1J7-13326-02-00)

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

PIN, DOWEL

93603-07073-00

Unavailable

13

PIN, DOWEL

99530-12016-00

Unavailable

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

BOLT,SOCKET

91317-06040-00

Unavailable

16

SEAL

1J7-13338-00-00

Unavailable

17

PLUNGER, RELIEF

1J7-13483-00-00

Unavailable

18

SPRING, RELIEF

1J7-13484-00-00

Unavailable

19

WASHER, PLATE

(90201-04594-00)

Unavailable

20

CIRCLIP(24H)

99009-17500-00

Unavailable

21

CIRCLIP, R-TYPE

(93420-19047-00)

Unavailable

22

PLUG, SPEC''L SHAPE

90338-19079-00

Unavailable

23

STRAINER, OIL

2F3-13411-00-00

Unavailable

24

HOUSING, STRAINER

(1J7-13412-01-00)

Unavailable

25

SEAL, OIL STRAINER

1J7-13415-00-00

Unavailable

26

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

27

BOLT,SOCKET

91317-06035-00

Unavailable

28

COVER, STRAINER

1J7-13417-01-00

Unavailable

29

GASKET,STRNR COVER

1J7-13414-10-00

Unavailable

30

BOLT,SOCKET

91317-06025-00

Unavailable

31

BOLT,SOCKET

91317-06055-00

Unavailable

32

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

33

GASKET

214-11198-01-00

Unavailable

34

PLATE, BAFFLE LOWER

(1J7-13337-01-00)

Unavailable

35

SCREW PAN HEAD

98580-06010-00

Unavailable

36

PIPE, DELIVERY 2

2F3-13171-00-00

Unavailable

37

BOLT, UNION

(90401-18040-00)

Unavailable

38

GASKET (1J7)

90430-18130-00

Unavailable

39

BOLT, UNION

(90401-10054-00)

Unavailable

40

WASHER PLATE 341839090000

90201-10128-00

Unavailable

41

GASKET

90430-16048-00

Unavailable

42

PIPE, DELIVERY 1

2G2-13161-00-00

Unavailable

43

BOLT, UNION (371-13166-00)

90401-10013-00

Unavailable

44

BOLT, UNION (16G)

90401-10084-00

Unavailable

45

GASKET (5R6)

90430-10171-00

Unavailable

46

GEAR, PUMP DRIVEN

(1J7-13325-01-00)

Unavailable

47

HOUSING

(1J7-13313-00-00)

Unavailable

48

SCREW, OVAL HEAD

98603-06018-00

Unavailable

49

COVER, OIL ELEMENT

2H7-13447-00-00

Unavailable

50

ELEMENT, OIL CLEANER

1J7-13441-10-00

Unavailable

51

O-RING (3Y2)

93211-19413-00

Unavailable

52

O-RING (1J7)

93210-16314-00

Unavailable

53

BY-PASS VALVE ASSEMBLY

1J7-13340-00-00

Unavailable

54

WASHER, PLATE (1L9)

90201-21608-00

Unavailable

55

SPRING, COMPRESSION (1J7)

90501-18433-00

Unavailable

56

SPRING, COMPRESSION (1J7)

90501-12413-00

Unavailable

57

BALL, HALF

93501-02018-00

Unavailable

58

PIN,SPRING

91690-20018-00

Unavailable

59

WASHER PLATE 328171160000

90201-20276-00

Unavailable

60

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

61

GASKET

214-11198-01-00

Unavailable
