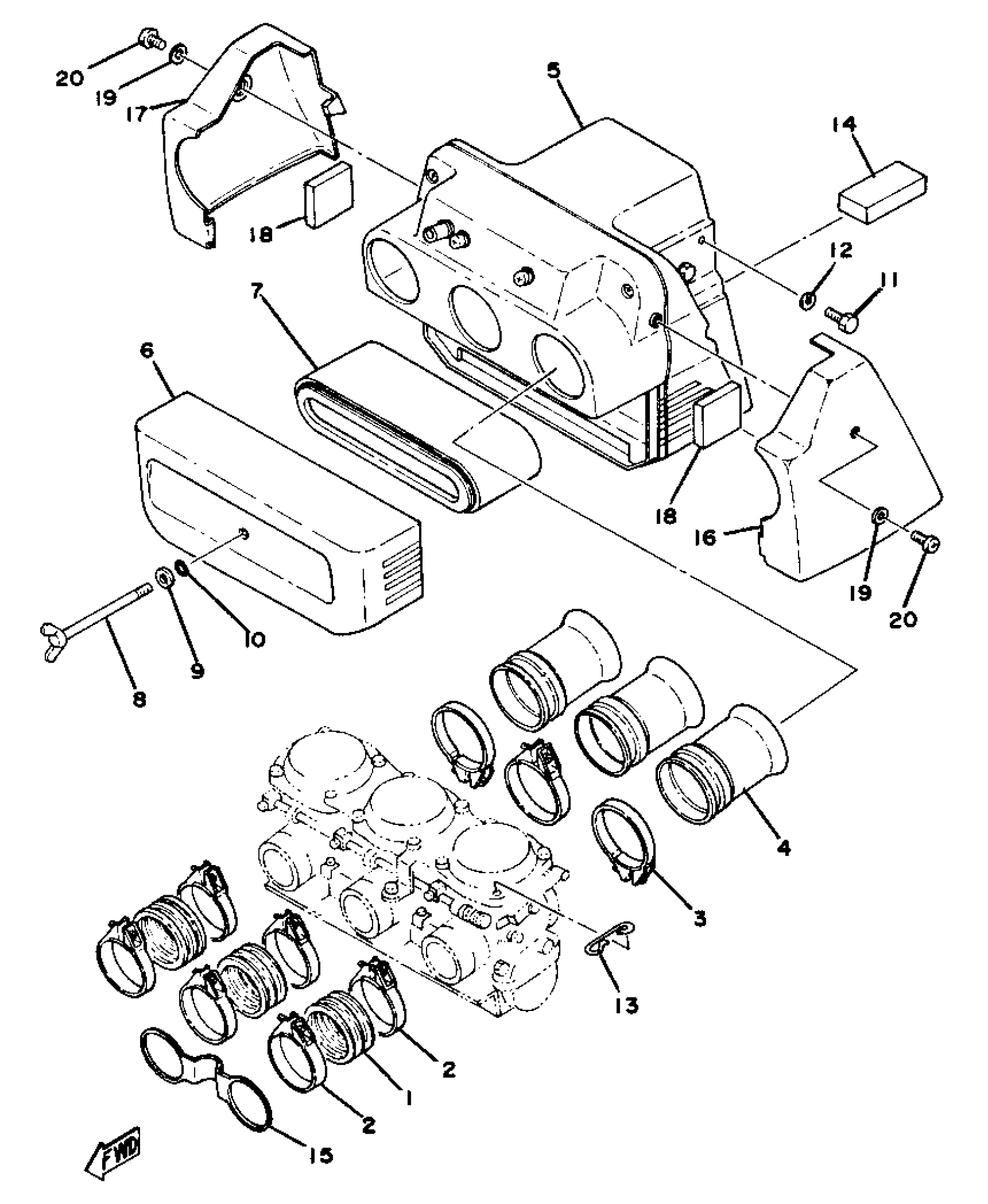

Yamaha XS750SE (XS750S) 1978 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR

2F3-13586-01-00

Unavailable

2

HOSE CLAMP ASSY

90450-54008-00

$7.49

3

HOSE CLAMP ASSY

90450-58002-00

$16.99

4

JOINT, AIR CLNR 1

2F3-14453-00-00

Unavailable

5

AIR CLEANER CASE

(2G2-W1441-01-00)

Unavailable

6

CAP, CLEANER CASE 2

2F3-14422-00-00

Unavailable

7

ELEMENT, AIR CLEANER

4E2-14451-00-00

$48.99

8

BOLT, WING

90122-06006-00

Unavailable

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

O-RING

93210-06257-00

Unavailable

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

CLIP

(90468-20083-00)

Unavailable

14

SEAL

(2F3-14452-00-00)

Unavailable

15

CLAMP

(90465-08120-00)

Unavailable

16

COVER 1

2G2-14417-00-00

Unavailable

17

COVER 2

2G2-14418-00-00

Unavailable

18

DAMPER 1

(2G2-14425-00-00)

Unavailable

19

WASHER PLATE 829771780000

90201-05033-00

Unavailable

20

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable
