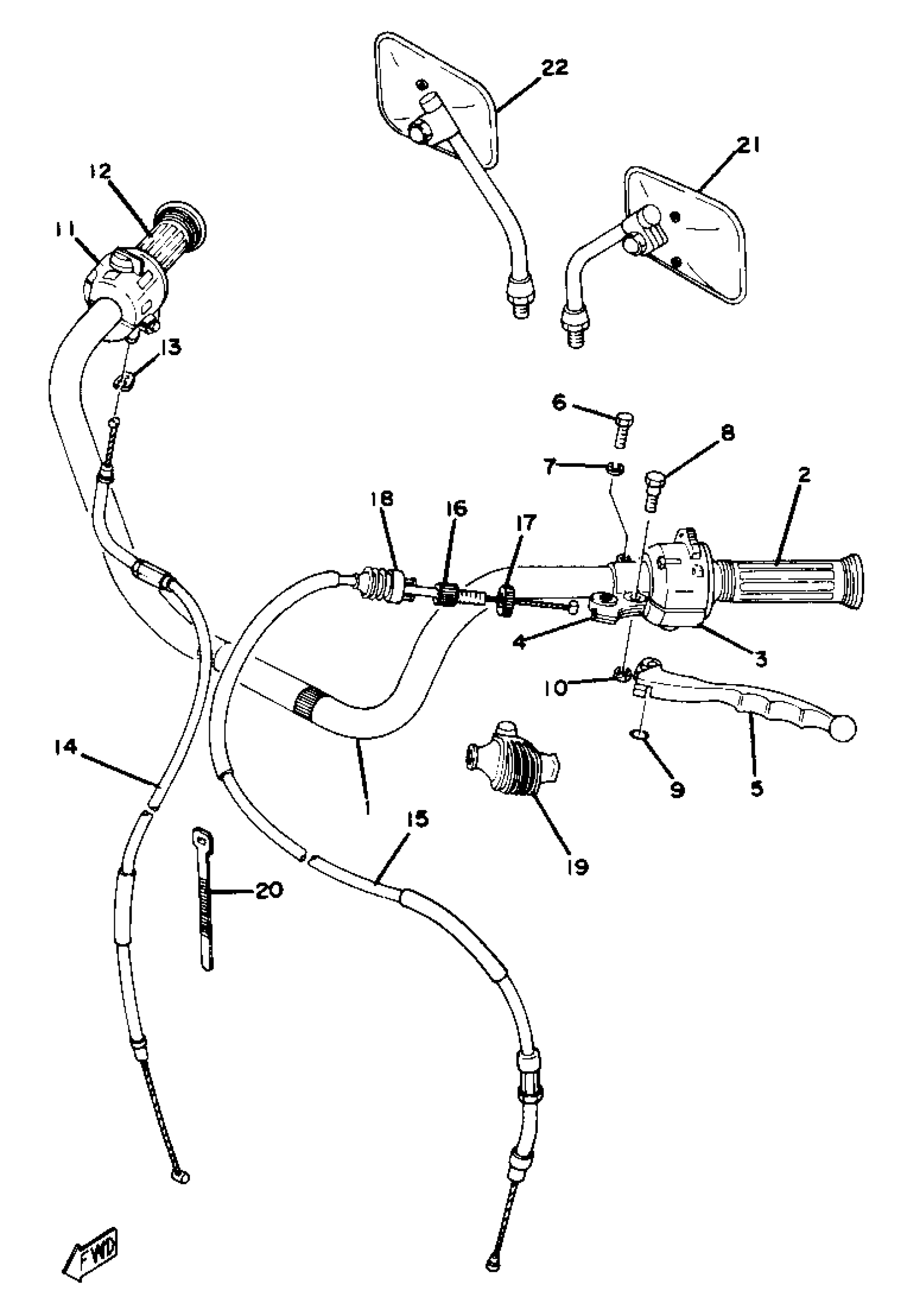

Yamaha XS750SE (XS750S) 1978 HANDLE - WIRE Diagram

#

Description
Price

1

HANDLEBAR

3H3-26111-00-00

Unavailable

2

GRIP LH

2H7-26241-01-00

$11.99

3

SWITCH, HANDLE 3

2G2-83973-00-98

Unavailable

4

HOLDER, LEVER (L.H) (371,447)

341-82911-00-00

Unavailable

5

LEVER L

2H0-83912-31-00

$31.99

6

BOLT, HEXAGON

97013-06022-00

$0.90

7

WASHER, SPRING

92995-06100-00

Unavailable

8

BOLT(1FG)

90109-06798-00

$8.49

9

O-RING (2H7)

93210-11368-00

$5.60

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

SWITCH, HANDLE 3

2G2-83963-00-98

Unavailable

12

HOLDER,

584-26393-02-00

Unavailable

13

HOLDER,

584-26393-02-00

Unavailable

14

CABLE, THROTTLE 1

2G2-26311-02-00

Unavailable

15

CABLE, CLUTCH

4H1-26335-00-00

Unavailable

16

BOLT

90123-08002-00

Unavailable

17

NUT

90179-08030-00

Unavailable

18

BOOT, WIRE

1E6-26342-00-00

Unavailable

19

COVER, LEVER

1E6-26372-00-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable

21

REAR VIEW MIRROR ASSY (LEFT)

2G2-26290-11-00

Unavailable

22

REAR VIEW MIRROR ASSY (RIGHT)

2G2-26290-01-00

Unavailable
