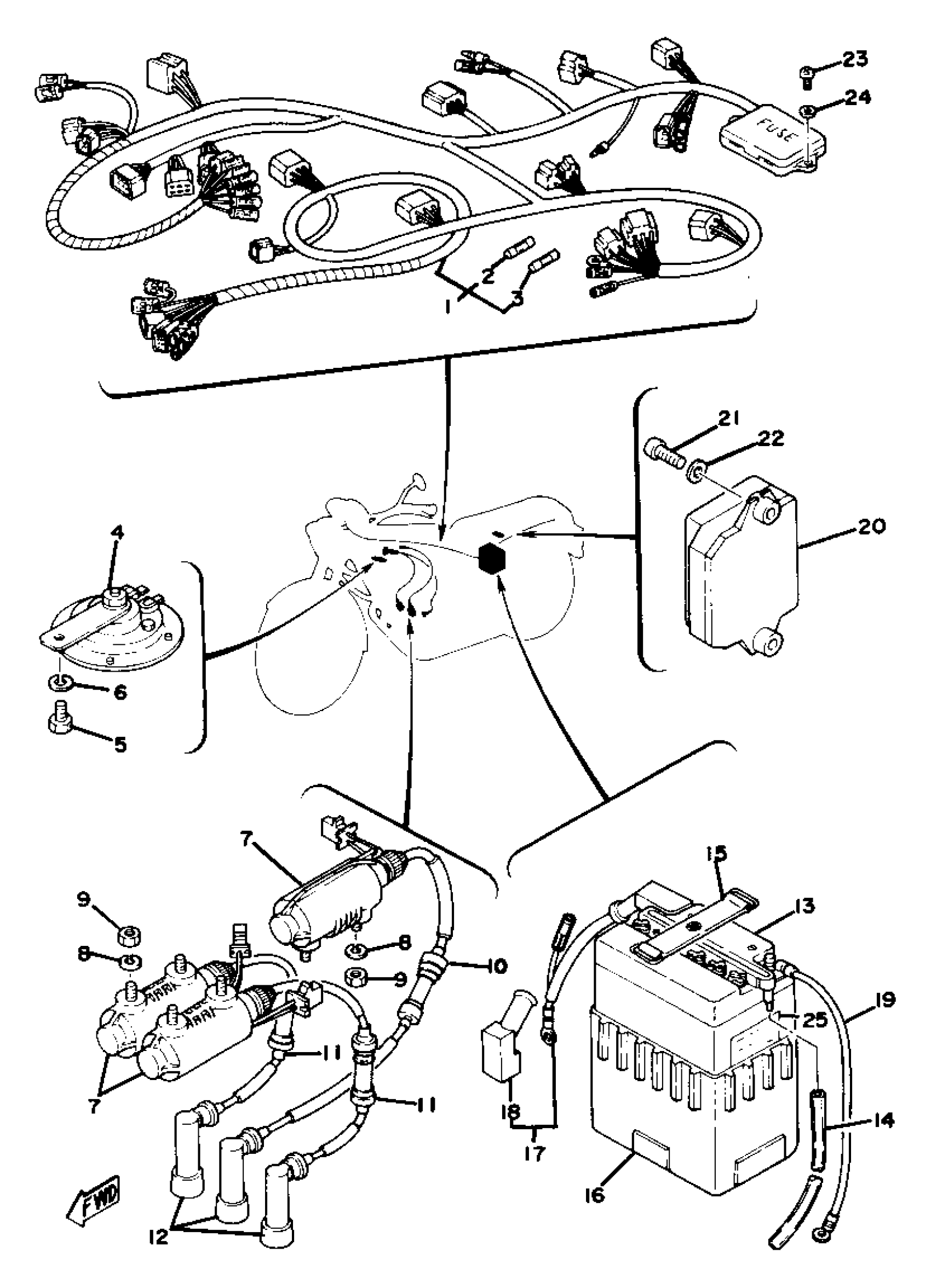

Yamaha XS750SE (XS750S) 1978 ELECTRICAL 1 Diagram

#

Description
Price

1

WIRE HARNESS ASSEMBLY

2G2-82590-51-00

Unavailable

2

FUSE

1A0-82161-00-00

$7.99

3

FUSE

1A0-82151-00-00

$16.49

4

HORN

1J7-83371-22-00

Unavailable

5

BOLT(JA9)

90101-08691-00

$4.29

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

IGNITION COIL ASSY

4GR-81958-00-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

NUT(650)

95380-06700-00

$8.49

10

CORD, HIGH TENS 1

2F3-82341-00-00

Unavailable

11

CORD, HIGH TENS 3

2F3-82343-00-00

Unavailable

12

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

13

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

14

PIPE, BREATHER

(2G2-82112-00-00)

Unavailable

15

BAND,BATTERY

7H3-82131-00-00

$17.49

16

SEAT, BATTERY

447-82122-00-00

Unavailable

17

WIRE, PLUS LEAD

1J7-82115-00-00

Unavailable

18

COVER, LEAD WIRE

(1J7-82119-00-00)

Unavailable

19

WIRE, MINUS LEAD

1J7-82116-00-00

Unavailable

20

IGNITOR UNIT ASSEMBLY 1

2F3-82305-11-00

Unavailable

21

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

22

WASHER, PLATE

90201-06020-00

Unavailable

23

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

24

WASHER, PLAIN (646)

92990-05600-00

Unavailable

25

LABEL, BATTERY

40A-82141-G0-00

Unavailable
