CYLINDER HEAD - CYLINDER

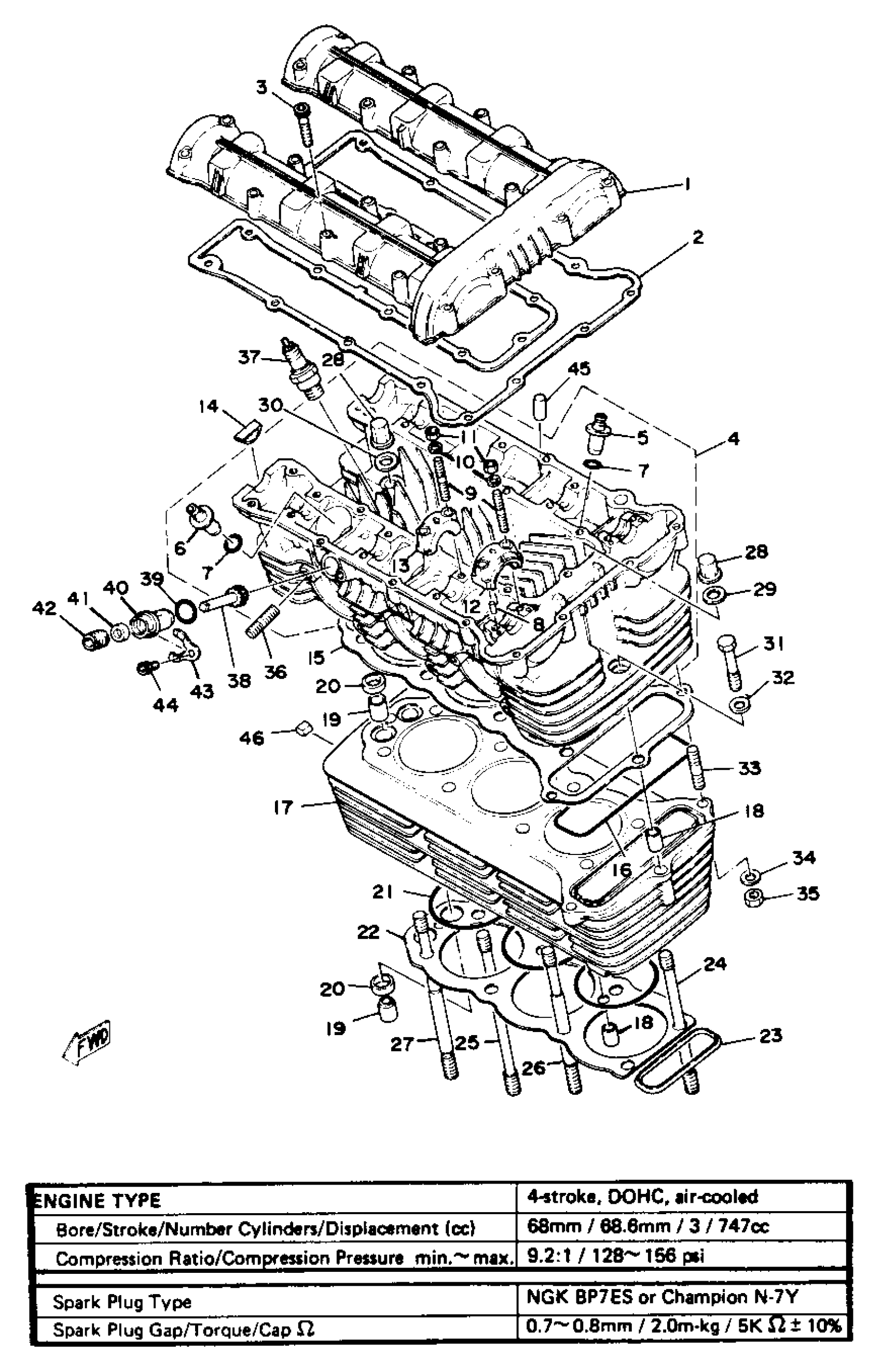

Yamaha XS750SE (XS750S) 1978 CYLINDER HEAD - CYLINDER Diagram
#
1
COVER, CYLINDER.HEAD 1
(2G2-11191-00-00)
Unavailable
2
GASKET, CYLINDER HEAD COVER
1J7-11193-10-00
Unavailable
3
BOLT,SOCKET
91317-06035-00
Unavailable
4
CYLINDER HEAD ASSEMBLY
(2G2-11110-00-00)
Unavailable
5
. GDE, INTK VLV 1 O/S
1J7-11133-10-00
Unavailable
6
. GDE, EXST VLV 1 O/S
1J7-11134-10-00
Unavailable
8
. PIN, DOWEL
93603-09004-00
Unavailable
11
GSKTKT TE XS750E
(2G2-W0001-90-00)
Unavailable
11
GASKTKIT XS750SESF
(2K1-W0001-01-00)
Unavailable
11
NUT, HEXAGON
95380-06600-00
Unavailable
12
. CAP, CAMSHAFT 1
1J7-12173-10-00
Unavailable
13
. CAP, CAMSHAFT 2
1J7-12183-10-00
Unavailable
14
PLUG
1J7-11138-00-00
Unavailable
15
GASKET, CYL HEAD 1
2F3-11181-10-00
Unavailable
16
SEAL, CYLINDER 1
1J7-11355-00-00
Unavailable
17
CYLINDER
(2G2-11310-00-00)
Unavailable
18
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
19
PIN, DOWEL
99530-14016-00
Unavailable
20
SEAL, CYLINDER 3
1J7-11357-00-00
Unavailable
21
O-RING (1J7)
93210-74316-00
Unavailable
22
GASKET, CYLINDER
1J7-11351-12-00
Unavailable
23
SEAL, CYLINDER 2
1J7-11356-00-00
Unavailable
24
BOLT, STUD
90116-10273-00
Unavailable
25
BOLT, STUD
90116-10274-00
Unavailable
26
BOLT, CYLINDER HOLDING 3
2F3-11363-00-00
Unavailable
27
BOLT, CYLINDER HOLDING 4
2F3-11364-00-00
Unavailable
28
NUT, CROWN(2GG)
90176-10075-00
Unavailable
29
WASHER, PLATE 3711117500
90201-10124-00
Unavailable
30
WASHER PLATE 256111740000
90201-10131-00
Unavailable
31
BOLT
97013-08045-00
Unavailable
32
WASHER, PLATE (33N)
90201-084G3-00
Unavailable
33
BOLT, STUD
90116-08161-00
Unavailable
34
WASHER, PLATE (33N)
90201-084G3-00
Unavailable
35
GSKTKT TE XS750E
(2G2-W0001-90-00)
Unavailable
35
GASKTKIT XS750SESF
(2K1-W0001-01-00)
Unavailable
35
NUT(6L2)
95333-08600-00
Unavailable
36
BOLT, STUD
90116-08271-00
Unavailable
37
CHAMPION N7YC 4PK
CMP-N7YC0-00-00
Unavailable
37
BPR7ES NGK - 4/PACK
BPR-7ES00-40-00
Unavailable
38
GEAR, DRIVEN
1J7-17841-00-00
Unavailable
39
O-RING (341)
93210-15171-00
Unavailable
40
. HOUSING, TACH GEAR
2F3-17811-00-00
Unavailable
41
OIL SEAL (7X13X4-256)
93104-07036-00
Unavailable
42
ADAPTER
256-17848-00-00
Unavailable
43
STOPPER
1J7-17812-00-00
Unavailable
44
BOLT,SOCKET
91317-06012-00
Unavailable
45
PLUG, BLIND
16G-13569-00-00
Unavailable
46
ABSORBER
434-11161-00-00
Unavailable
