- XS750SE (XS750S) 1978
BRAKE PEDAL - REAR MASTER CYLINDER

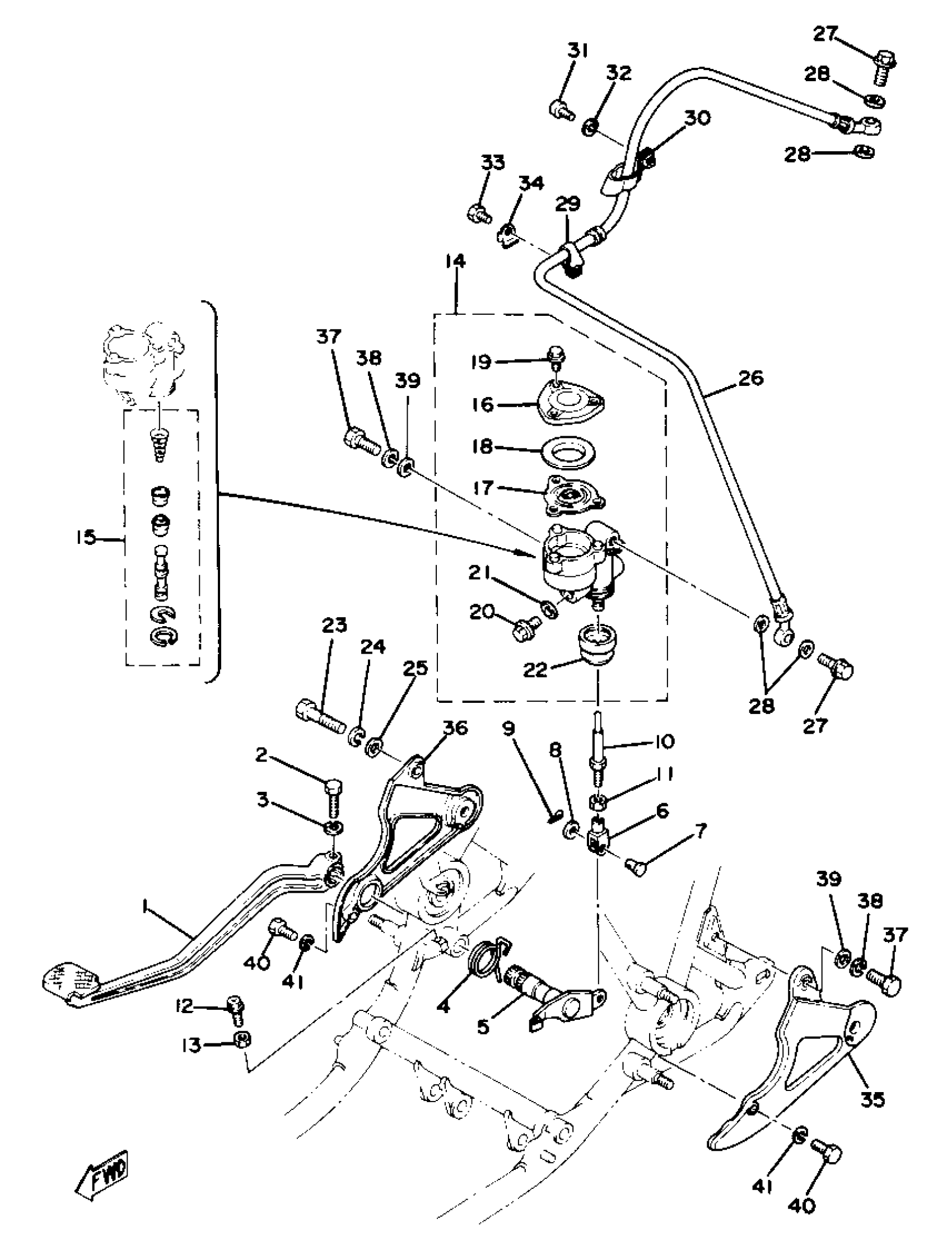

Yamaha XS750SE (XS750S) 1978 BRAKE PEDAL - REAR MASTER CYLINDER Diagram
#
1
PEDAL, BRAKE
2G2-27211-00-00
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
4
SPRING, TORSION
(90508-40379-00)
Unavailable
5
SHAFT, BRAKE PEDAL
(2G2-27212-01-00)
Unavailable
6
JOINT
47X-27222-00-00
Unavailable
9
PIN, COTTER
91490-16020-00
Unavailable
10
ROD, BRAKE
1J7-27231-00-00
Unavailable
11
. NUT
95380-08700-00
Unavailable
14
MSTR CYLINDER ASSEMBLY
1J7-25850-52-00
Unavailable
15
CYLINDER KIT, REAR MASTER
1J3-W0042-50-00
Unavailable
16
. CAP, RESERVOIR
1J3-25852-52-00
Unavailable
17
. DIAPHRAGM RESERVOR
1J3-25854-51-00
Unavailable
18
. BUSH, DIAPHRAGM
1J3-25855-51-00
Unavailable
19
. SCREW, HEXAGON
90153-05014-00
Unavailable
20
. SCREW, hexagon
90153-10015-00
Unavailable
21
. WASHER, plate
90201-10610-00
Unavailable
22
. BOOT, MASTER CYLINDER
1J3-25862-50-00
Unavailable
23
BOLT(3HN)
97017-08045-00
Unavailable
24
WASHER(JN5)
92907-08100-00
Unavailable
25
WASHER(6TA)
92907-08600-00
Unavailable
26
HOSE, BRAKE
1J7-25874-01-00
Unavailable
27
BOLT, UNION(3GM)
90401-10159-00
Unavailable
28
WASHER, PLATE(481)
90201-10118-00
Unavailable
29
CLAMP
(90461-10023-00)
Unavailable
30
CLAMP
(90461-12021-00)
Unavailable
31
SCREW, PAN
98507-06014-00
Unavailable
32
WASHER, SPRING
92907-06100-00
Unavailable
33
BOLT, HEXAGON
97017-06012-00
Unavailable
34
WASHER, LOCK
(90215-06128-00)
Unavailable
35
BRACKET 2
(2G2-27442-02-00)
Unavailable
36
BRACKET 3
(2G2-27443-02-00)
Unavailable
37
BOLT, HEXAGON
97017-08025-00
Unavailable
38
WASHER(JN5)
92907-08100-00
Unavailable
39
WASHER(6TA)
92907-08600-00
Unavailable
40
BOLT, HEXAGON
97017-06020-00
Unavailable
41
WASHER, SPRING
92995-06100-00
Unavailable
