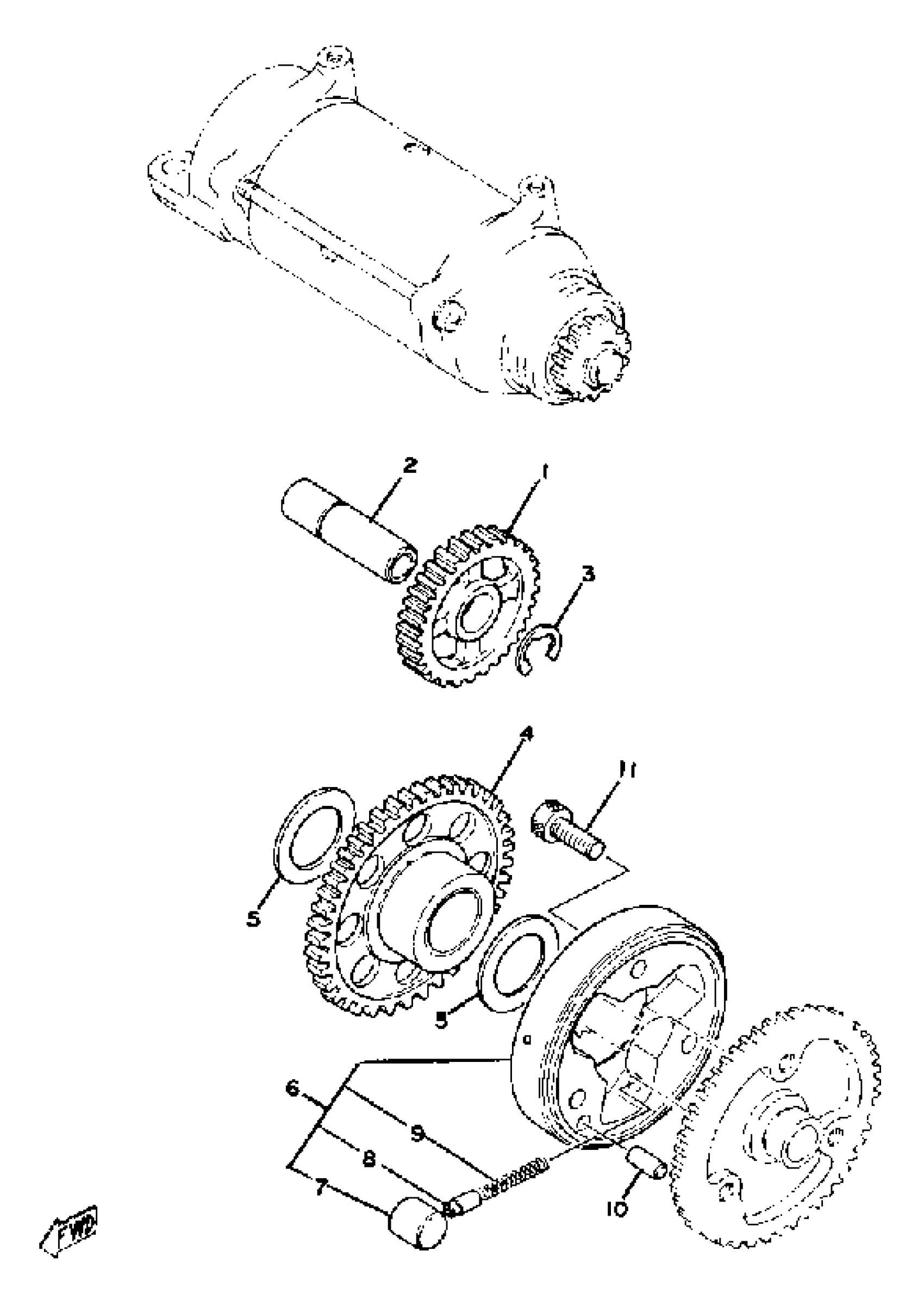

Yamaha XS750SE-31121 (XS750SE-311211) 1978 STARTING MOTOR UNIT Diagram

#

Description
Price

1

GEAR, IDLER 1

1J7-15512-01-00

Unavailable

2

SHAFT 1

1J7-15521-00-00

Unavailable

3

CIRCLIP, E-TYPE

99001-15600-00

Unavailable

4

GEAR, IDLER 2

(1J7-15517-01-00)

Unavailable

5

WASHER PLATE 371115580000

90201-25291-00

$10.49

6

STR CLUTCH OTR ASSEMBLY

(1J7-15580-01-00)

Unavailable

7

PIN, DOWEL (1J7)

93615-17125-00

$16.99

8

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

9

. SPRING, COMPRESSION (341-15584-02)

90501-03298-00

Unavailable

10

PIN,DOWEL(296)

93606-14081-00

$4.24

11

BOLT, SOCKET

91317-08020-00

$8.49
