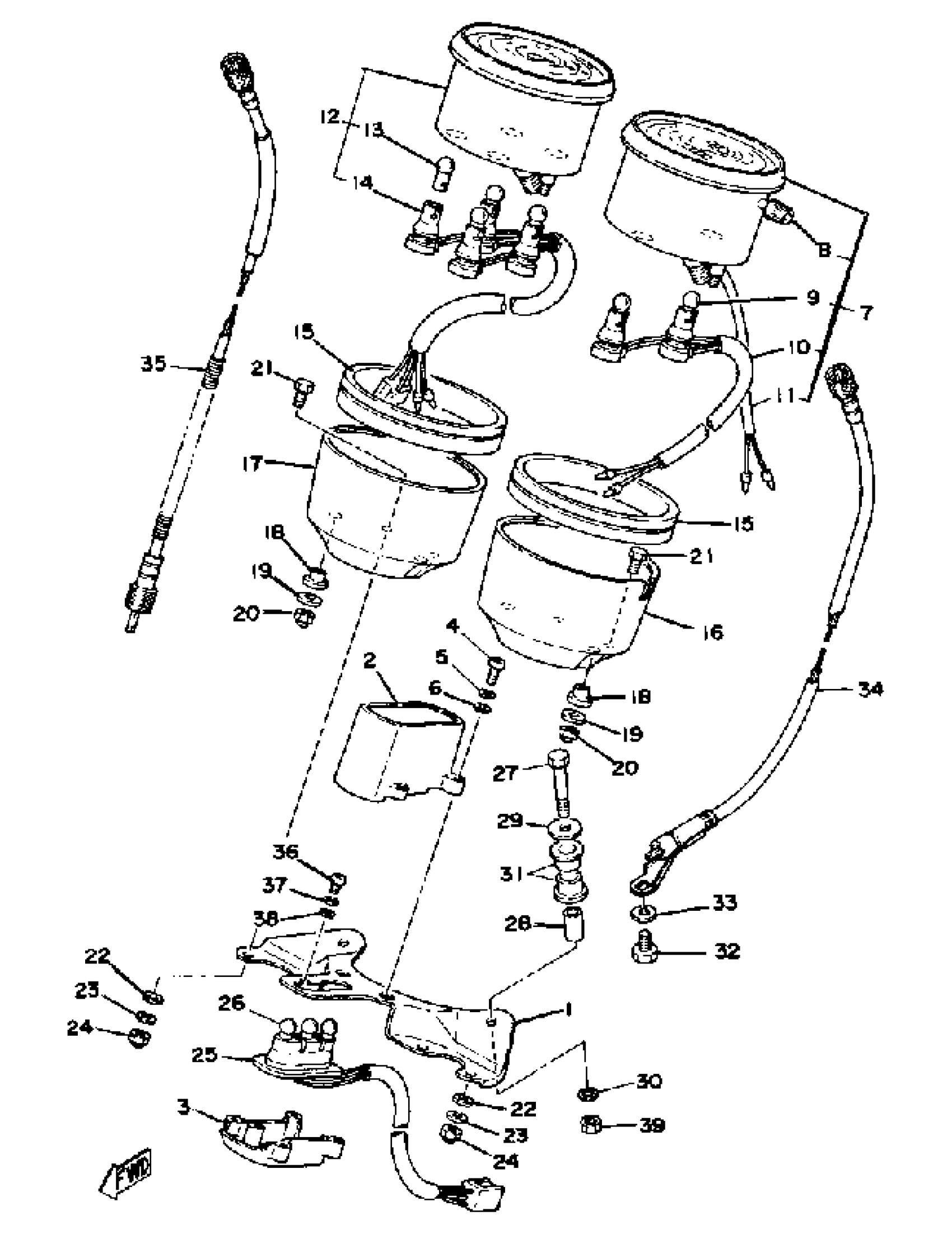

Yamaha XS750SE-31121 (XS750SE-311211) 1978 SPEEDOMETER-TACHOMETER Diagram

#

Description
Price

1

BRACKET, METER

2G2-83519-00-00

Unavailable

2

PILOT BOX, UPPER

2G2-83568-A0-00

Unavailable

3

PILOT BOX, LOWER

2G2-83569-A0-00

Unavailable

4

SCREW, PAN HEAD

98517-04012-00

$3.88

5

WASHER(6TA)

92907-04100-00

$8.49

6

WASHER(JF2)

92907-04600-00

$1.71

7

SPEEDOMETER ASSEMBLY

2G2-83570-A0-00

Unavailable

8

KNOB, TRIP METER

4SV-83578-00-00

$18.49

9

BULB (12V-3.4W)

123-83516-21-00

$4.26

10

SOCKET, METER

(584-83536-01-00)

Unavailable

11

. SENDER

1J3-83556-01-00

Unavailable

12

TACHOMETER ASSEMBLY

2K1-83540-F0-00

Unavailable

13

BULB (12V-3.4W)

123-83516-21-00

$4.26

14

SOCKET CORD ASSEMBLY

(2G2-83520-00-00)

Unavailable

15

DAMPER

3H3-83513-00-00

$44.99

16

COVER, SPEEDOMETER

2J2-83507-00-00

Unavailable

17

COVER, TACHOMETER

2J2-83508-00-00

Unavailable

18

DAMPER, METER COVER FITTING

584-83523-00-00

Unavailable

19

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

20

NUT (CROWN)

95303-05800-00

Unavailable

21

BOLT

584-83546-00-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

NUT (J17)

95380-06800-00

Unavailable

25

SOCKET CORD ASSEMBLY

3G1-83509-00-00

Unavailable

26

BULB (12V-3.4W)

123-83516-21-00

$4.26

27

BOLT(8BC)

97017-06040-00

Unavailable

28

COLLAR (877)

90387-06249-00

Unavailable

29

WASHER, PLATE

90201-06380-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

32

SCREW, HEXAGON

90153-06004-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

SPEEDOMETER CABLE

5K5-83550-00-00

Unavailable

35

TACHOMETER CABLE

2G2-83560-00-00

Unavailable

36

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

37

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

38

WASHER, PLAIN (646)

92990-04600-00

Unavailable

39

NUT, HEXAGON

95380-06600-00

Unavailable
