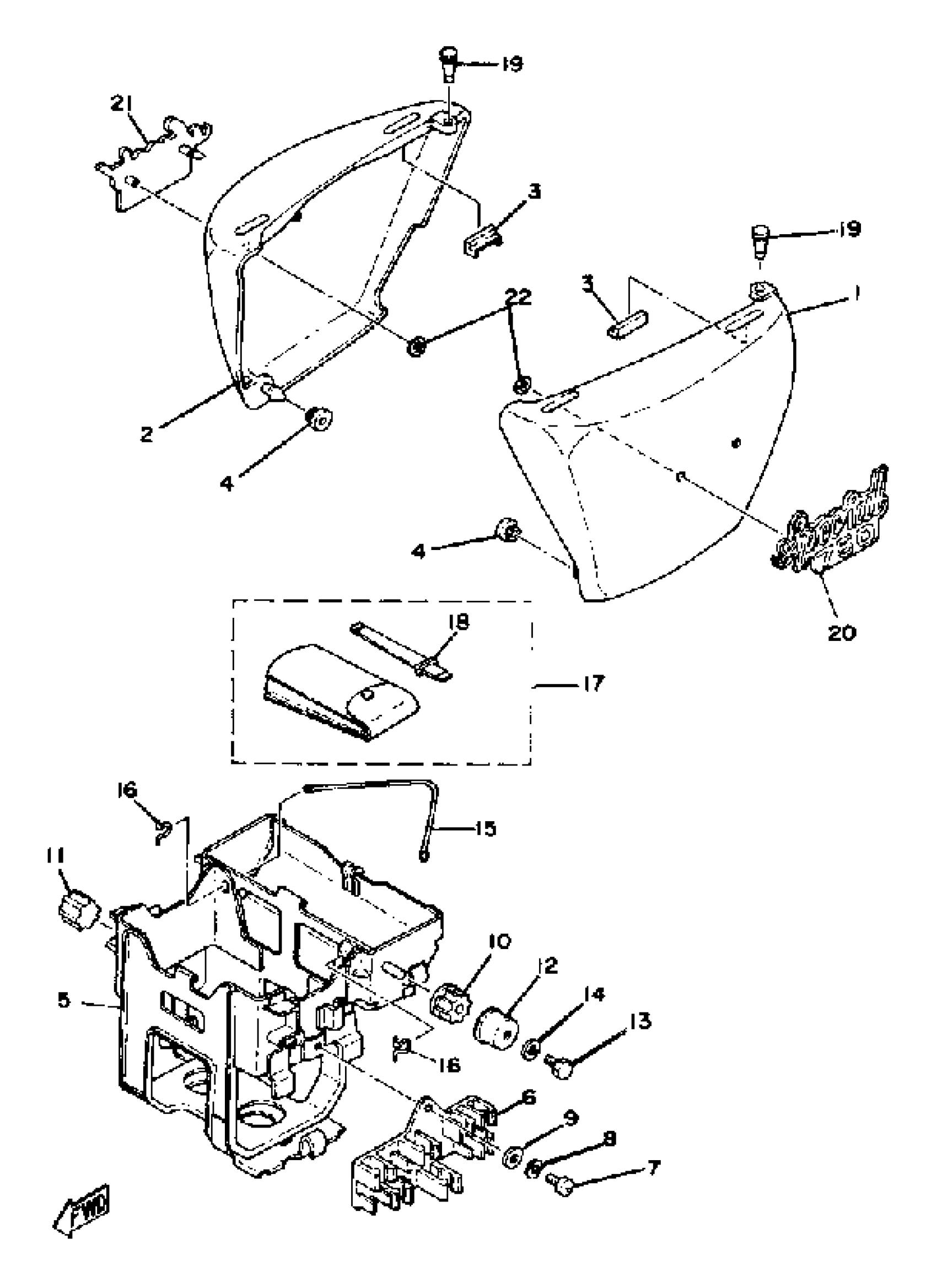

Yamaha XS750SE-31121 (XS750SE-311211) 1978 SIDE COVER - BATTERY BOX Diagram

#

Description

Price

1

COVER, SIDE 1

2G2-21711-00-H6

Unavailable

1

COVER, SIDE 1

2G2-21711-00-H9

Unavailable

2

COVER, SIDE 2

(2G2-21721-00-H6)

Unavailable

2

COVER, SIDE 2

2G2-21721-00-H9

Unavailable

3

DAMPER, SIDE COVER

360-21717-01-00

Unavailable

4

GROMMET(41Y)

90480-01401-00

$8.49

5

BOX

(3J3-21170-01-00)

Unavailable

6

HOLDER, KNOB

(1J7-21794-00-00)

Unavailable

7

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

DAMPER

1J7-21746-00-00

Unavailable

11

DAMPER, SIDE COVER

2J2-21729-00-00

$5.49

12

BRACKET, DAMPER

(1J7-21798-00-00)

Unavailable

13

BOLT(3JP)

97017-06010-00

$3.76

14

WASHER, SPRING

92995-06100-00

Unavailable

15

BAND, TOOL

256-21376-00-00

Unavailable

16

HOOK, TOOL BAND

256-21366-00-00

Unavailable

17

TOOL KIT

3J3-W2810-00-00

Unavailable

18

. GAUGE, OIL LEVEL

1J7-2815A-00-00

Unavailable

19

GROMMET (1J7)

90480-05201-00

Unavailable

20

EMBLEM 1

2G2-21781-00-00

Unavailable

21

EMBLEM 2

2G2-21782-00-00

Unavailable

22

NUT, SPRING (1L9)

90183-04012-00

Unavailable
