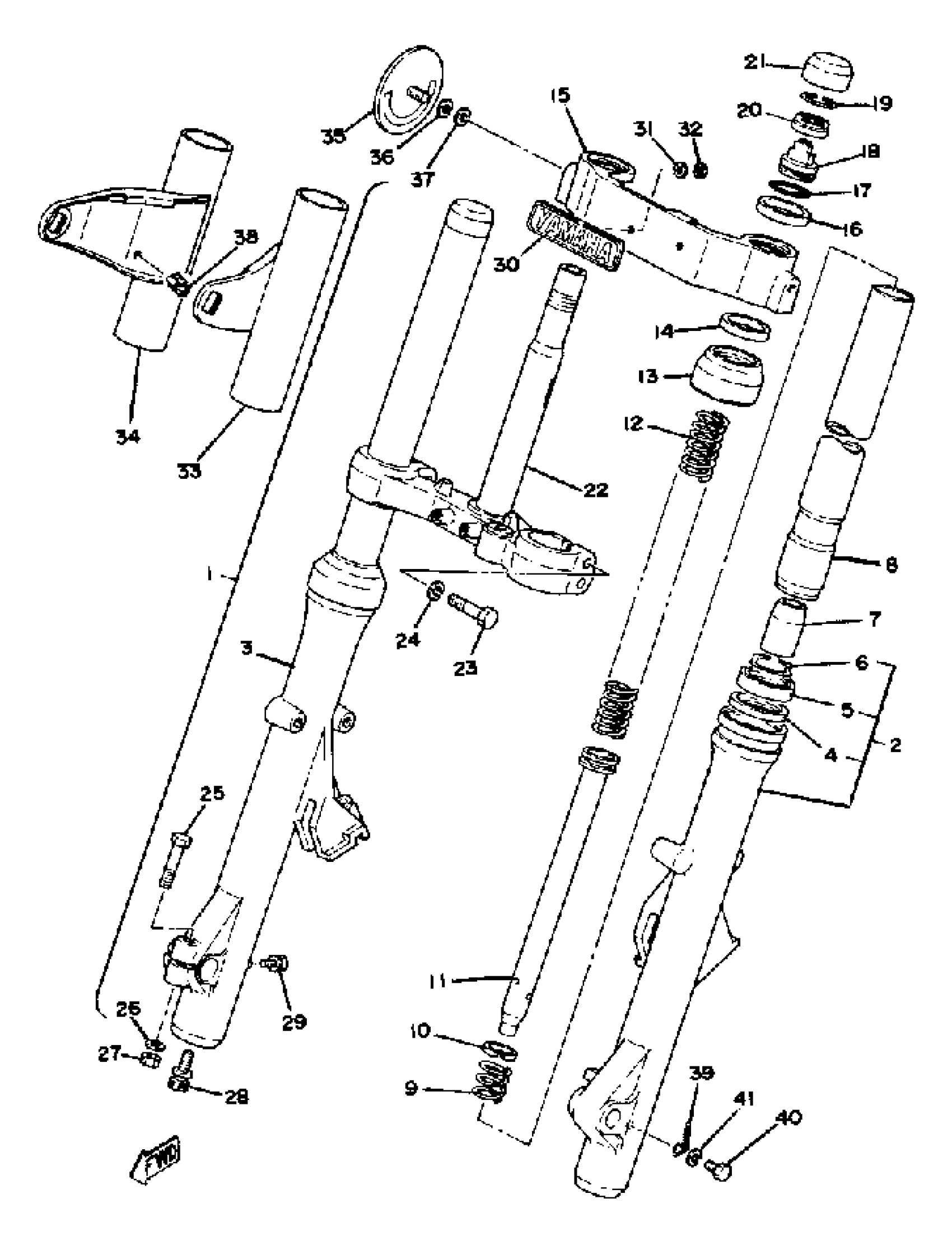

Yamaha XS750SE-31121 (XS750SE-311211) 1978 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY
(2G2-23101-01-00)
Unavailable
2
. TUBE, OUTER 1
2G2-23126-00-00
Unavailable
3
TUBE, OUTER 2
(2G2-23136-01-00)
Unavailable
7
. SPACER, OIL LOCK
(1J3-23166-00-00)
Unavailable
8
. INNER TUBE 1
2G2-23110-00-00
Unavailable
9
. SPRING, REBOUND
1J3-23151-00-00
Unavailable
10
. RING, PISTON FRONT FORK (2F3-23157-00)
1T4-23157-01-00
Unavailable
11
CYLINDER, FRTFRK
(2G2-23170-00-00)
Unavailable
12
SPRING, FRONT FORK
(2G2-23141-00-00)
Unavailable
13
. SEAL, DUST
1T4-23144-00-00
Unavailable
14
. GASKET
23W-23163-00-00
Unavailable
15
. COVER, OUTER 1
2G2-23122-00-00
Unavailable
16
. GUIDE, COVER UPPER
1T4-23115-00-00
Unavailable
17
O-R1NG(N04)
93210-221A0-00
Unavailable
18
. SPRING, ADJUSTER
2F3-2311A-00-00
Unavailable
19
. CIRCLIP
1J3-23183-01-00
Unavailable
20
. BOLT, CAP
2F3-23111-00-00
Unavailable
21
. CAP, FRONT FORK
2F3-23168-01-00
Unavailable
22
. UNDER BRACKET
2G2-23340-00-90
Unavailable
23
BOLT
97014-08040-00
Unavailable
24
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
25
BOLT(3HN)
97017-08045-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
27
NUT(6L2)
95333-08600-00
Unavailable
28
BOLT
3M7-23181-00-00
Unavailable
29
PLUG, DRAIN
2A6-23119-00-00
Unavailable
30
. EMBLEM
2M0-23395-00-00
Unavailable
31
WASHER PLATE 174283160000
90202-04003-00
Unavailable
32
NUT, SPRING (1L9)
90183-04012-00
Unavailable
