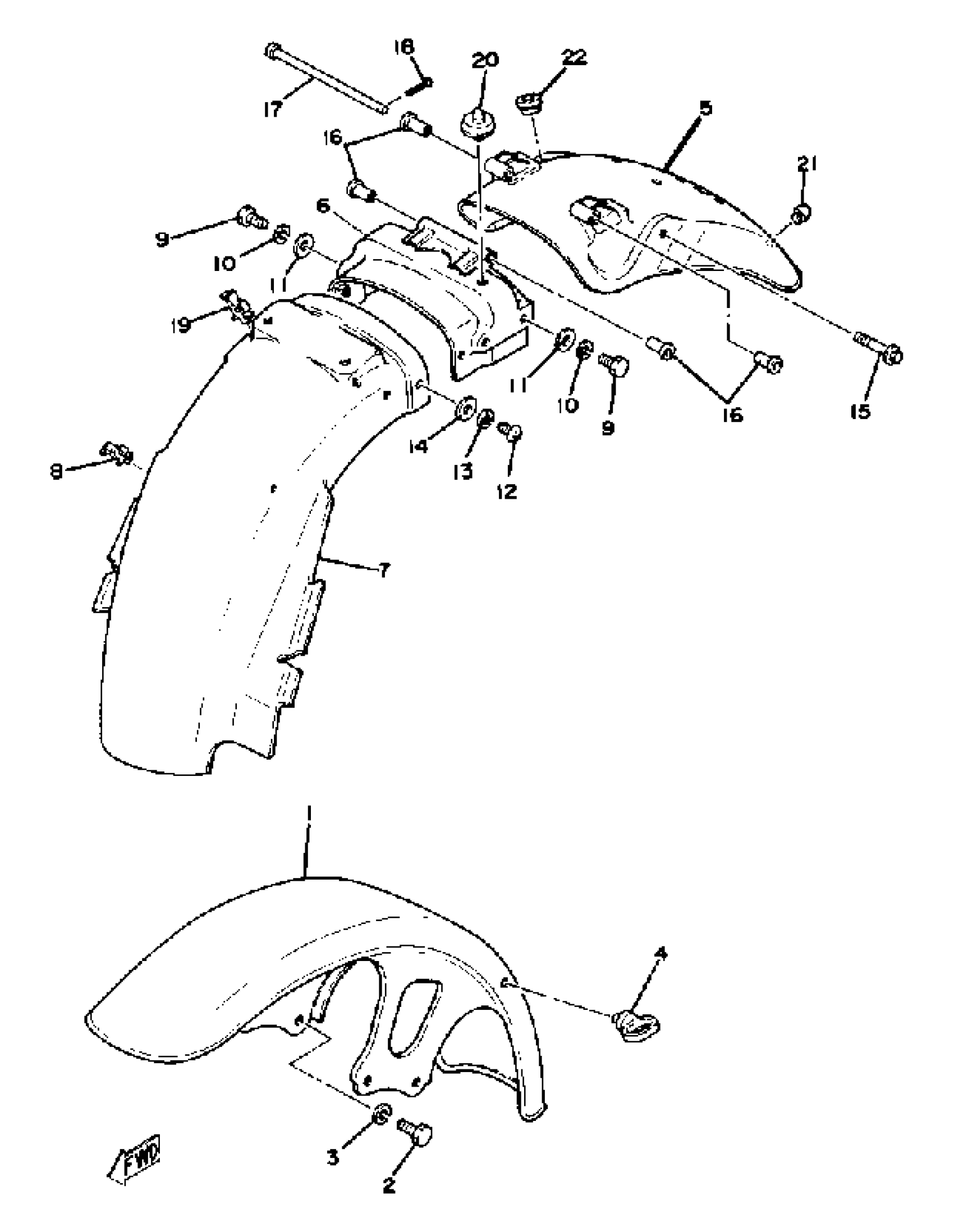

Yamaha XS750SE-31121 (XS750SE-311211) 1978 FRONT FENDER-REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3H3-21511-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

(2G2-21610-00-93)

Unavailable

6

STAY, FENDER 1

(1J7-21613-00-00)

Unavailable

7

GUARD, MUD

(3J2-21629-01-00)

Unavailable

8

CLAMP (1J7)

90464-16021-00

$12.49

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

SCREW PAN HEAD

98580-06010-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

WASHER, PLATE

90201-06M08-00

Unavailable

15

BOLT, FLANGE

95814-08040-00

$4.72

16

COLLAR

90387-06159-00

Unavailable

17

PIN, CLEVIS

(91701-06152-00)

Unavailable

18

PIN, COTTER

91490-16020-00

Unavailable

19

CLAMP (1J7)

90464-16025-00

Unavailable

20

DAMPER

1J7-21649-01-00

Unavailable

21

DAMPER 2

2MG-21639-00-00

Unavailable

22

GROMMET(2UJ)

90480-16501-00

Unavailable
