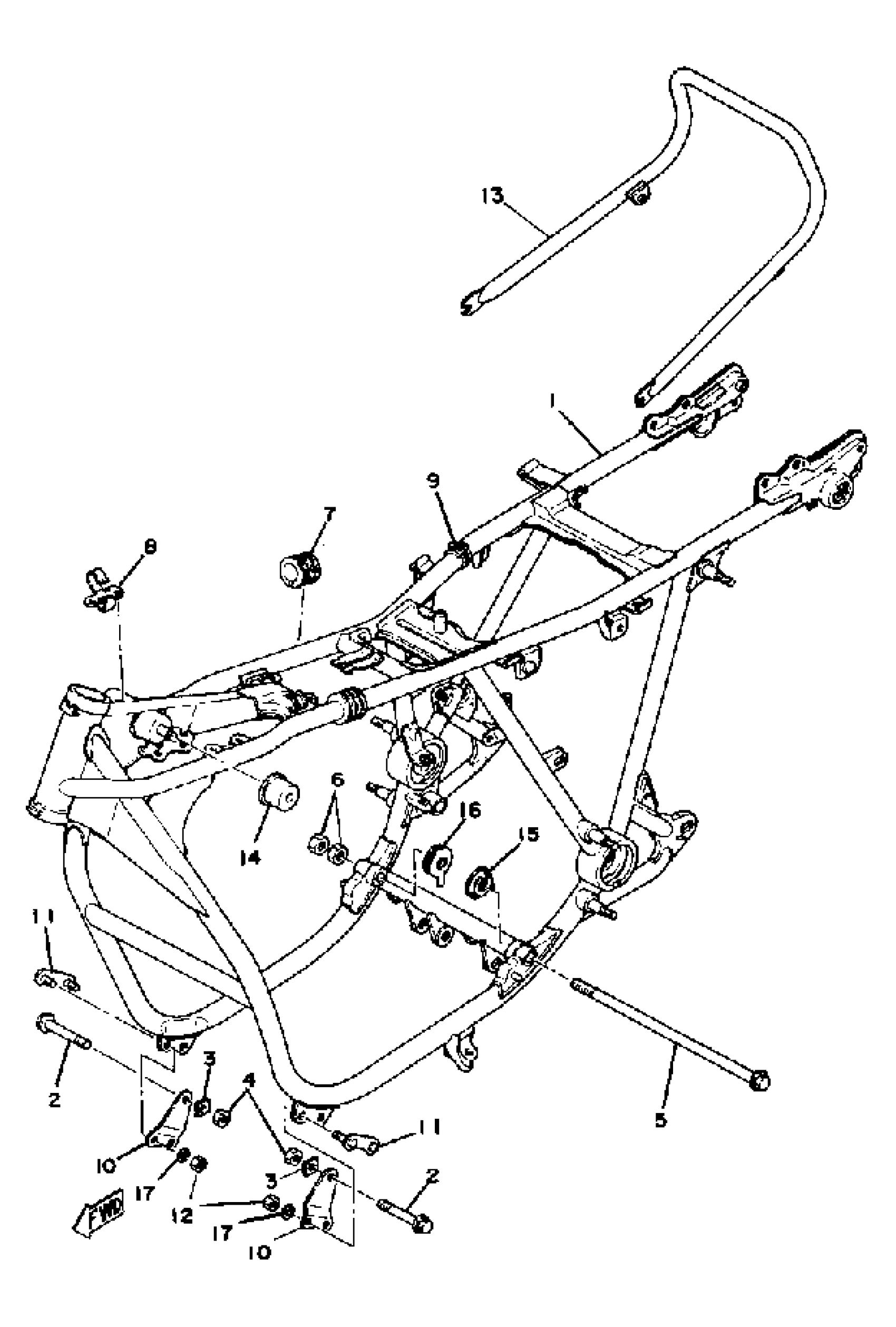

Yamaha XS750SE-31121 (XS750SE-311211) 1978 FRAME Diagram

#

Description
Price

1

FRAME

(2G2-21110-01-33)

Unavailable

2

BOLT, FLANGE

95814-10040-00

$4.72

3

WASHER, SPEC''L SHAP

(90209-10147-00)

Unavailable

4

NUT, U

95617-10100-00

$8.49

5

BOLT

90109-12501-00

Unavailable

6

NUT, HEXAGON SMALL

95317-12700-00

$8.49

7

DAMPER, TANK LOCATING 3

1J7-24183-02-00

Unavailable

8

CLAMP

(2G2-82594-00-00)

Unavailable

9

BAND, SWITCH CORD

437-83936-11-00

$4.63

10

STAY, ENGINE 3

2G2-21316-00-00

Unavailable

11

BRACKET, FRT LWR 2

2G2-21418-00-00

Unavailable

12

NUT(6L2)

95333-08600-00

$2.49

13

STAY, REAR

2G2-21645-00-00

Unavailable

14

BRACKET, TANK FTNG

2G2-21347-00-00

Unavailable

15

DAMPER, RUBBER 1

2G2-21485-00-00

Unavailable

16

DAMPER 2

2G2-21486-00-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
