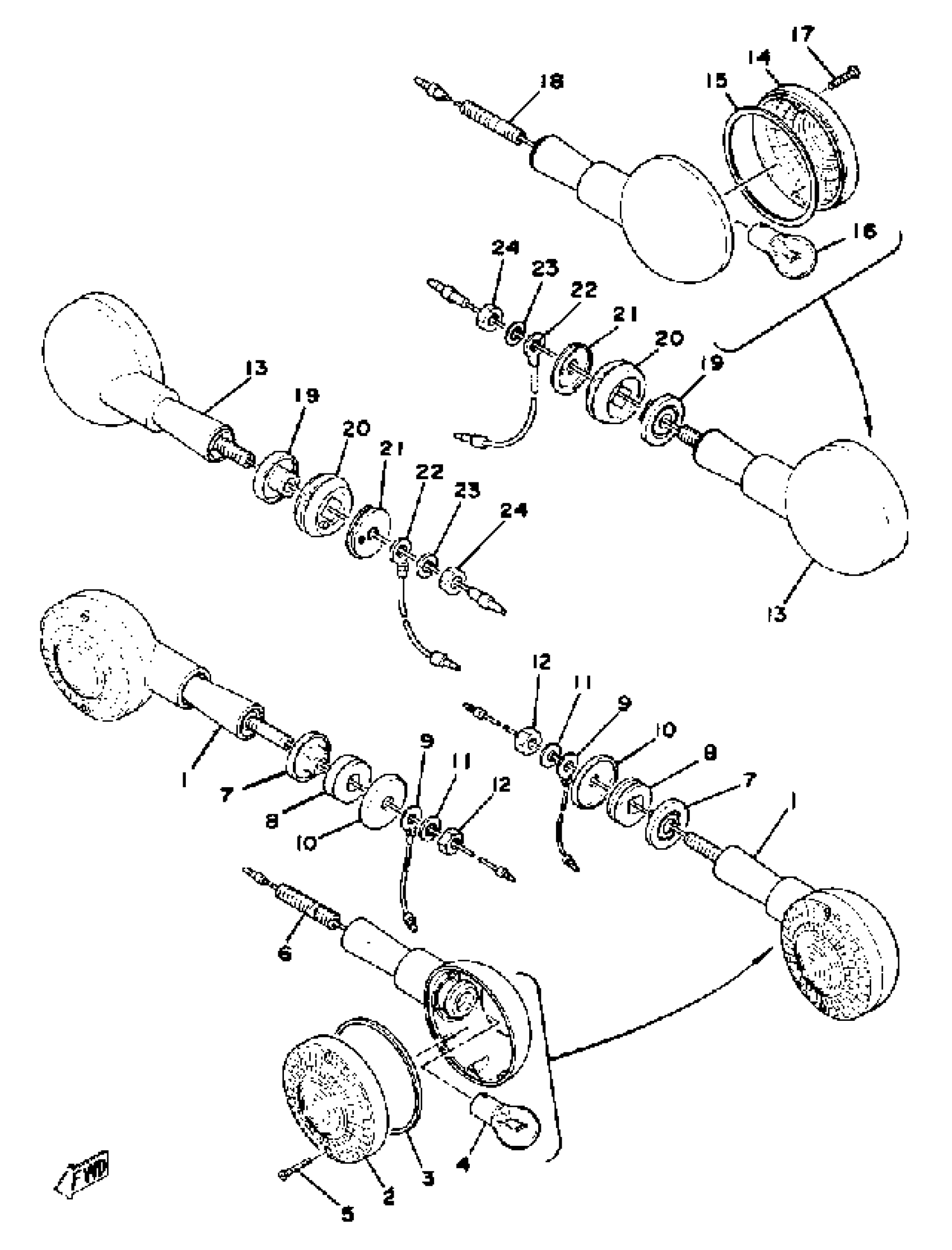

Yamaha XS750SE-31121 (XS750SE-311211) 1978 FLASHER LAMP Diagram

#

Description
Price

1

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

Unavailable

2

LENS, FLASHER

341-83312-70-00

Unavailable

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

6

. BOLT, STUD

341-83367-09-00

Unavailable

7

COLLAR, FLASHER 1

341-83316-02-00

$6.99

8

DAMPER, FLASHER (371)

341-83321-01-00

$7.99

9

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

10

WASHER

90209-08008-00

$7.49

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

NUT(6L2)

95333-08600-00

$2.49

13

R FLSHR LITE ASSEMBLY

341-83330-21-93

Unavailable

14

LENS, FLASHER

341-83312-70-00

Unavailable

15

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

18

. BOLT, STUD

360-83367-09-00

Unavailable

19

COLLAR, FLASHER 1

341-83316-02-00

$6.99

20

DAMPER, FLASHER

1E6-83321-00-00

Unavailable

21

WASHER

1E6-83348-00-00

Unavailable

22

WIRE, EARTH LEAD 2

3FU-83364-00-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

24

NUT(6L2)

95333-08600-00

$2.49
