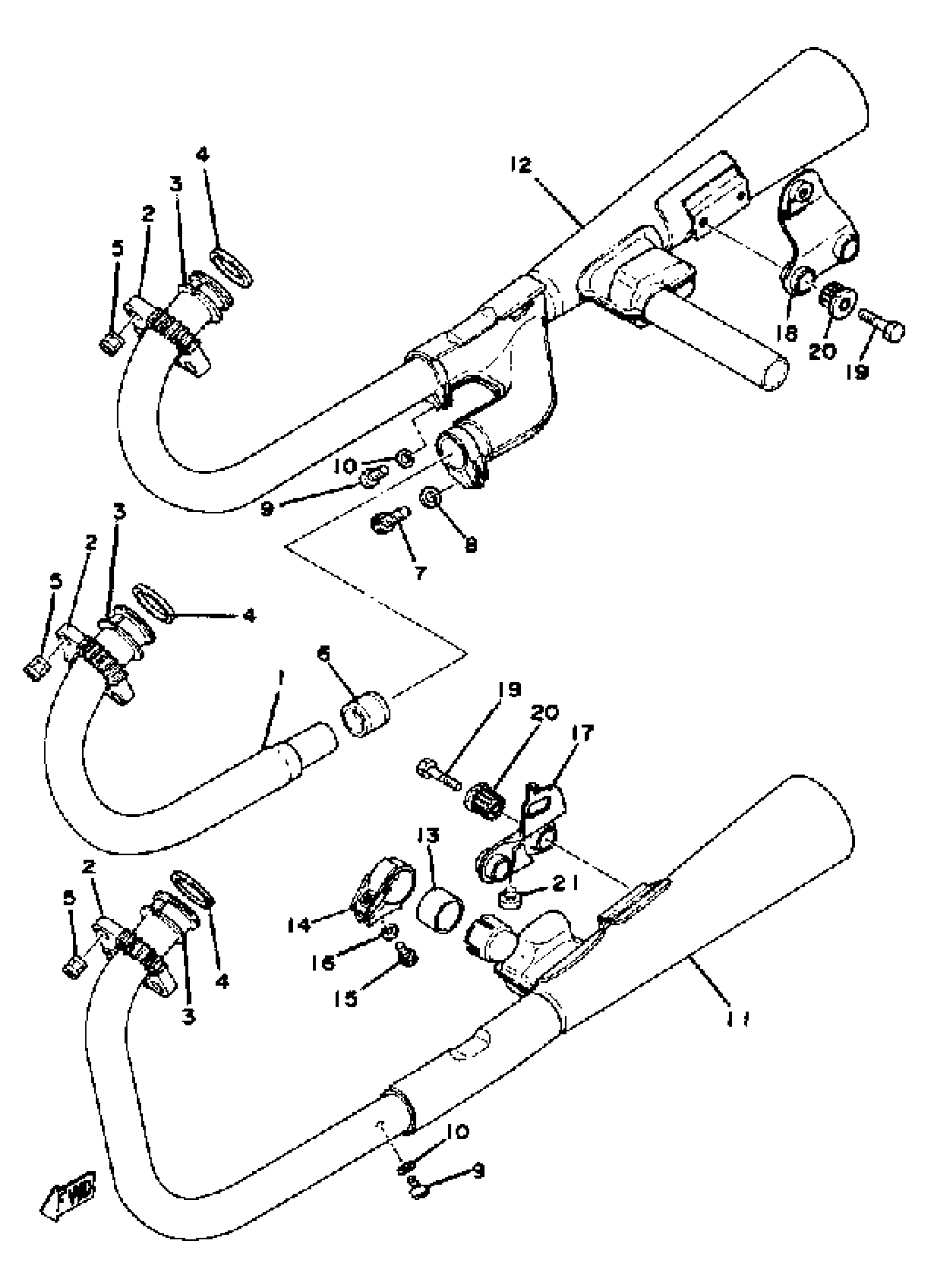

Yamaha XS750SE-31121 (XS750SE-311211) 1978 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST R

2G2-14621-00-00

Unavailable

2

NUT, RING

(4H1-14612-00-00)

Unavailable

3

FLANGE, EXST PIPE

1J7-14614-00-00

Unavailable

4

GASKET, EXHAUST PIPE

4BE-14613-00-00

$8.66

5

NUT (371)

90179-08004-00

$7.10

6

GASKET, MUFFLER

3YF-14714-00-00

$27.78

7

BOLT, SOCKET

91317-08025-00

$5.81

8

.. WASHER, PLATE

92990-08600-00

$2.17

9

SCREW, PAN

98507-06014-00

$5.76

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

MUFFLER

2G2-14701-01-00

Unavailable

12

MUFFLER 2

2G2-14702-01-00

Unavailable

13

GASKET, EXHAUST 4

3JJ-14653-00-00

$37.50

14

BAND, SILENCER

1L9-14788-00-00

Unavailable

15

BOLT,SOCKET

91317-06025-00

$1.91

16

WASHER, PLAIN (646)

92990-06600-00

$1.84

17

STAY, MUFFLER 1

(2G2-14771-02-00)

Unavailable

18

STAY, MUFFLER 2

(2G2-14781-02-00)

Unavailable

19

BOLT, HEXAGON

97321-08038-00

Unavailable

20

DAMPER, ENG MOUNT 1

1A1-15316-00-00

Unavailable

21

STOPPER, MAIN STAND

371-27114-00-00

Unavailable
