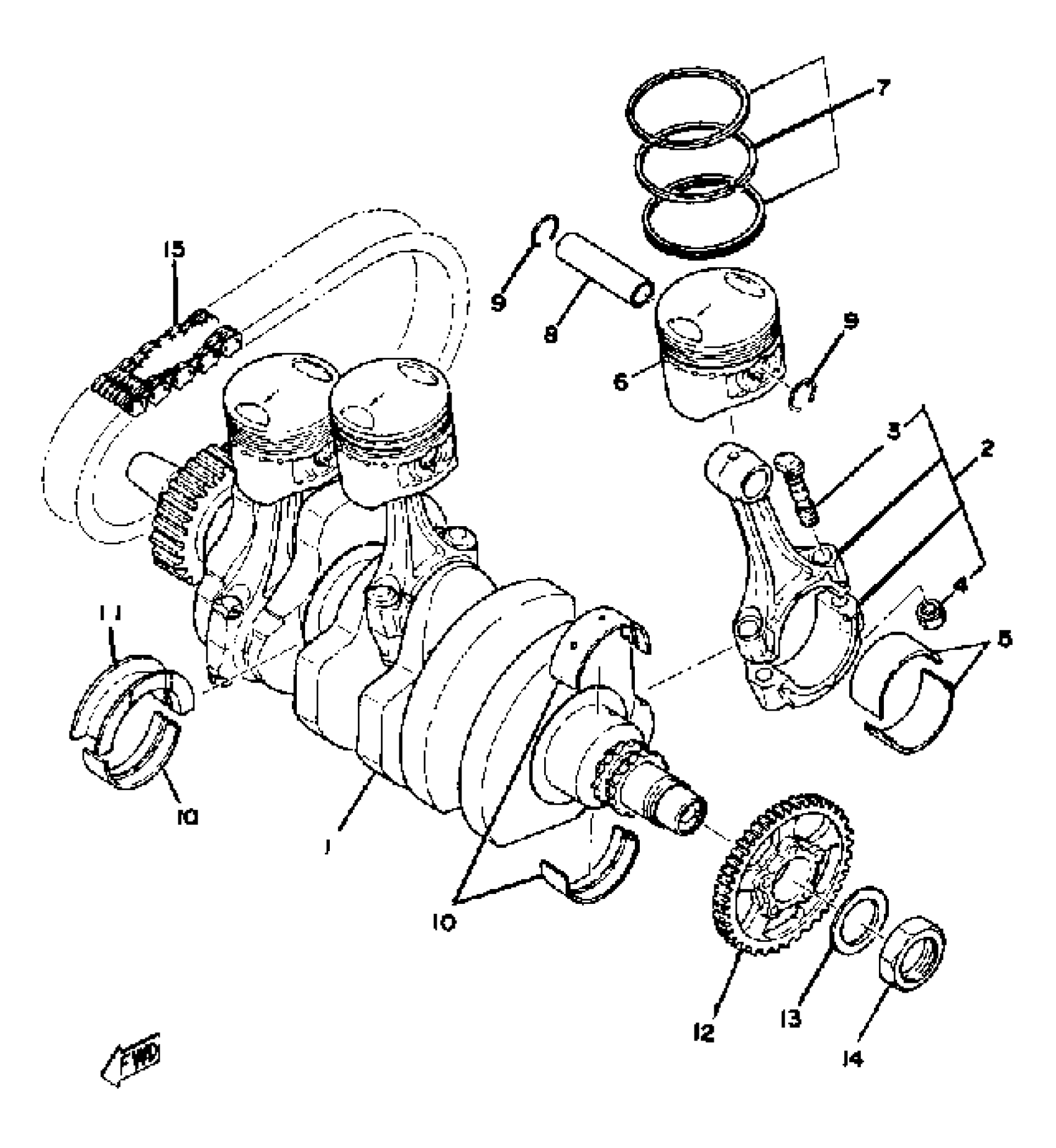

Yamaha XS750SE-31121 (XS750SE-311211) 1978 CRANK-PISTON Diagram

#

Description

Price

1

CRANKSHAFT

2K3-11411-09-00

Unavailable

2

CONNECTING ROD ASSEMBLY

1J7-Y1165-01-00

Unavailable

3

. BOLT, CON ROD

1J7-11654-00-00

Unavailable

4

. NUT, HEXAGON

90170-09192-00

Unavailable

5

PLANE BRNG, CON ROD

2F3-11656-00-00

Unavailable

5

PLANE BRNG, CON ROD

2F3-11656-10-00

Unavailable

5

PLANE BRNG, CON ROD

2F3-11656-20-00

Unavailable

5

PLANE BRNG, CON ROD

2F3-11656-30-00

Unavailable

5

PLANE BRNG, CON ROD

2F3-11656-40-00

Unavailable

6

PISTON KIT STD

(2F3-11630-03-00)

Unavailable

6

PISTON KIT 1ST

(2F3-11630-13-00)

Unavailable

6

PISTON KIT 2ND

(2F3-11630-23-00)

Unavailable

6

PISTON KIT 3RD

(2F3-11630-33-00)

Unavailable

6

PISTON KIT 4TH

(2F3-11630-43-00)

Unavailable

6

PISTON STD

2F3-11631-04-96

Unavailable

6

PISTON 1 O/S 0.25

2F3-11635-04-00

Unavailable

6

PISTON 2 O/S 0.50

2F3-11636-04-00

Unavailable

6

PISTON 3 O/S 0.75

(2F3-11637-04-00)

Unavailable

6

PISTON 4 O/S 1.00

(2F3-11638-04-00)

Unavailable

7

PISTON RINGSET STD (2F3-11610-02)

2F3-11610-03-00

Unavailable

7

PISTON RINGSET 1ST (2F3-11610-12)

2F3-11610-13-00

Unavailable

7

PISTON RINGSET 2ND (2F3-11610-22)

2F3-11610-23-00

Unavailable

7

PISTON RINGSET 3RD

(2F3-11610-33-00)

Unavailable

7

PISTON RINGSET 4TH (2F3-11610-42)

2F3-11610-43-00

Unavailable

8

PIN, PISTON

1J7-11633-00-00

Unavailable

9

CLIP (1J7)

90468-12069-00

Unavailable

10

PLANE BRNG, CRSF 1

1J7-11416-10-00

Unavailable

10

PLANE BRNG, CRSF 1

1J7-11416-10-00

Unavailable

10

PLANE BRNG, CRSF 1

1J7-11416-20-00

Unavailable

10

PLANE BRNG, CRSF 1

1J7-11416-30-00

Unavailable

10

PLANE BRNG, CRSF 1

1J7-11416-40-00

Unavailable

11

PLANE BRNG, CRSF 2

1J7-11417-00-00

Unavailable

11

PLANE BRNG, CRSF 2

1J7-11417-10-00

Unavailable

11

PLANE BRNG, CRSF 2

(1J7-11417-30-00)

Unavailable

11

PLANE BRNG, CRSF 2

(1J7-11417-30-00)

Unavailable

11

PLANE BRNG, CRSF 2

(1J7-11417-40-00)

Unavailable

12

GEAR, PUMP DRIVE

(1J7-13324-00-00)

Unavailable

13

WASHER, PLATE

90201-26600-00

Unavailable

14

NUT, HEXAGON

(90170-26191-00)

Unavailable

15

CHAIN, PRIMARY

1J7-16139-04-00

Unavailable
