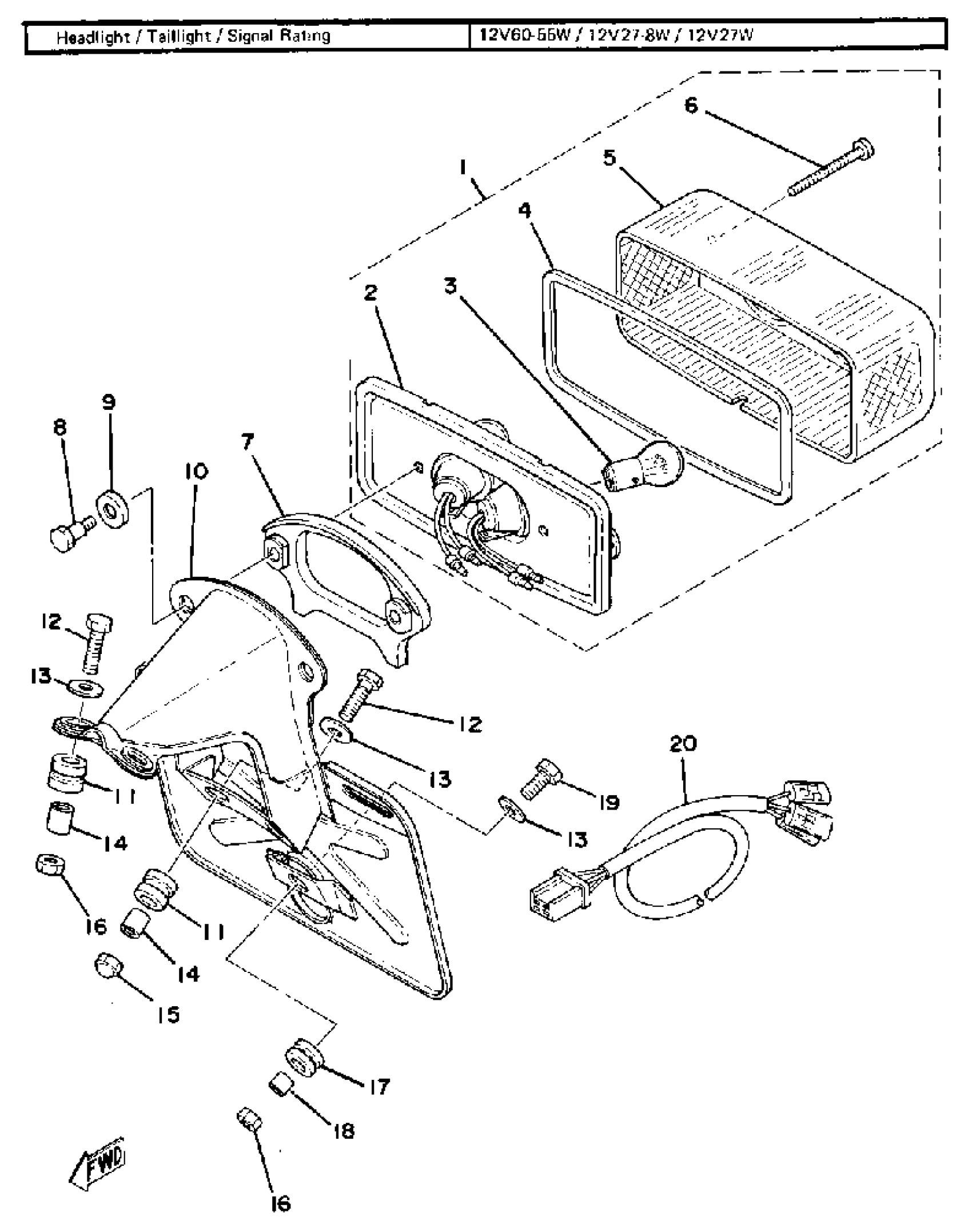

Yamaha XS750F (XS750) 1979 TAIL LAMP Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

2A2-84710-60-00

Unavailable

2

. BASE, TAILLIGHT

(1A0-84711-60-00)

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

. GASKET, TAIL LENS

1A0-84723-60-00

Unavailable

5

. LENS, TAILLIGHT

1A0-84721-60-00

Unavailable

6

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

7

SHEET, BASE

1A0-84712-60-00

Unavailable

8

BOLT, TAILLAMP

1A0-84726-60-00

Unavailable

9

WASHER, SPECIAL

2H7-84754-00-00

$10.99

10

BRACKET, LICENSE

(2F3-84751-60-33)

Unavailable

11

GROMMET 839774310000

90480-14023-00

$7.49

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

WASHER, PLATE

90201-06380-00

$0.60

14

COLLAR

90387-07020-00

$8.49

15

NUT (J17)

95380-06800-00

$8.49

16

NUT, HEXAGON

95380-06600-00

Unavailable

17

GROMMET

(90480-13016-00)

Unavailable

18

COLLAR(8R4)

90387-062N2-00

Unavailable

19

BOLT(8CP)

97017-06014-00

Unavailable

20

CORD, TAILLIGHT

(2F3-84717-00-00)

Unavailable
