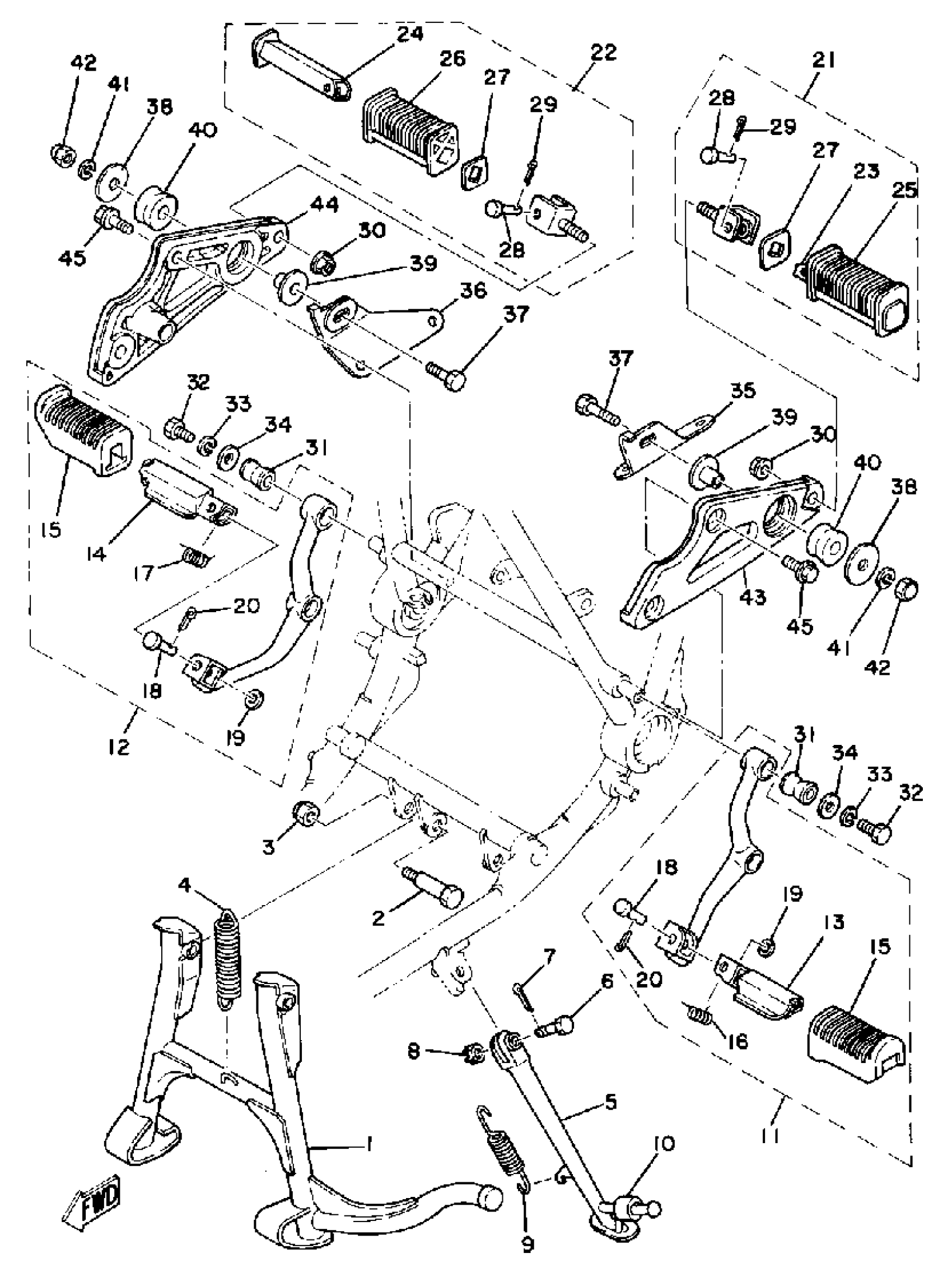

Yamaha XS750F (XS750) 1979 STAND - FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

2G2-27111-01-00

Unavailable

2

BOLT

90109-10440-00

Unavailable

3

NUT, U

95617-10100-00

$8.49

4

SPRING, TENSION

90506-40145-00

Unavailable

5

STAND, SIDE

(1T5-27311-00-00)

Unavailable

6

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

7

PIN, COTTER

91490-20025-00

$1.99

8

NUT,CASTLE

90171-10049-00

Unavailable

9

SPRING, TENSION (1J7)

90506-28146-00

$17.99

10

STOPPER

278-27314-00-00

Unavailable

11

FRT FOOTREST ASSEMBLY L

2G2-27410-00-00

Unavailable

12

FRT FOOTREST ASSEMBLY R

2G2-27420-00-00

Unavailable

13

FOOTREST

1J7-27451-00-00

Unavailable

14

. FOOTREST

1J7-27461-00-00

Unavailable

15

COVER, FOOTREST

4L0-27423-00-00

$49.99

16

. SPRING, TORSION

90508-20154-00

Unavailable

17

SPRING TORSION 371274560000

90508-20155-00

Unavailable

18

PIN, WITH HOLE (2G2)

90240-08063-00

Unavailable

19

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

20

PIN COTTER

91490-30025-00

Unavailable

21

RR FOOTREST ASSEMBLY 1

2H7-27430-00-00

Unavailable

22

RR FOOTREST ASSEMBLY 2

2H7-27440-00-00

Unavailable

23

FOOTREST, REAR 1

447-27431-00-00

Unavailable

24

FOOTREST, REAR 2

447-27441-00-00

Unavailable

25

. COVER, RR FOOTREST

1J7-27433-00-00

Unavailable

26

. COVER, RR FOOTREST

1J7-27444-00-00

Unavailable

27

WASHER 447274370000

90209-18070-00

Unavailable

28

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

29

PIN, COTTER

91490-16020-00

Unavailable

30

NUT(4KG)

90179-10658-00

Unavailable

31

DAMPER, FOOTREST

256-27414-00-00

Unavailable

32

BOLT, HEXAGON

97013-08016-00

Unavailable

33

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

34

WASHER, PLATE (4W3)

90201-086A3-00

Unavailable

35

BRACKET 2

(2Y4-27442-00-00)

Unavailable

36

BRACKET 3

(2Y4-27443-00-00)

Unavailable

37

BOLT (21V)

90101-10568-00

Unavailable

38

WASHER, PLATE (2Y4)

90201-10714-00

Unavailable

39

COLLAR (2H7)

90387-10636-00

Unavailable

40

DAMPER, FOOTREST

(2Y4-27414-00-00)

Unavailable

41

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

42

NUT, CAP (371)

90176-10009-00

Unavailable

43

BRACKET, FOOTREST 1

(2Y4-27412-00-00)

Unavailable

44

BRACKET, FOOTREST 2

(2Y4-27422-00-00)

Unavailable

45

BOLT (4W3)

90105-10186-00

Unavailable
