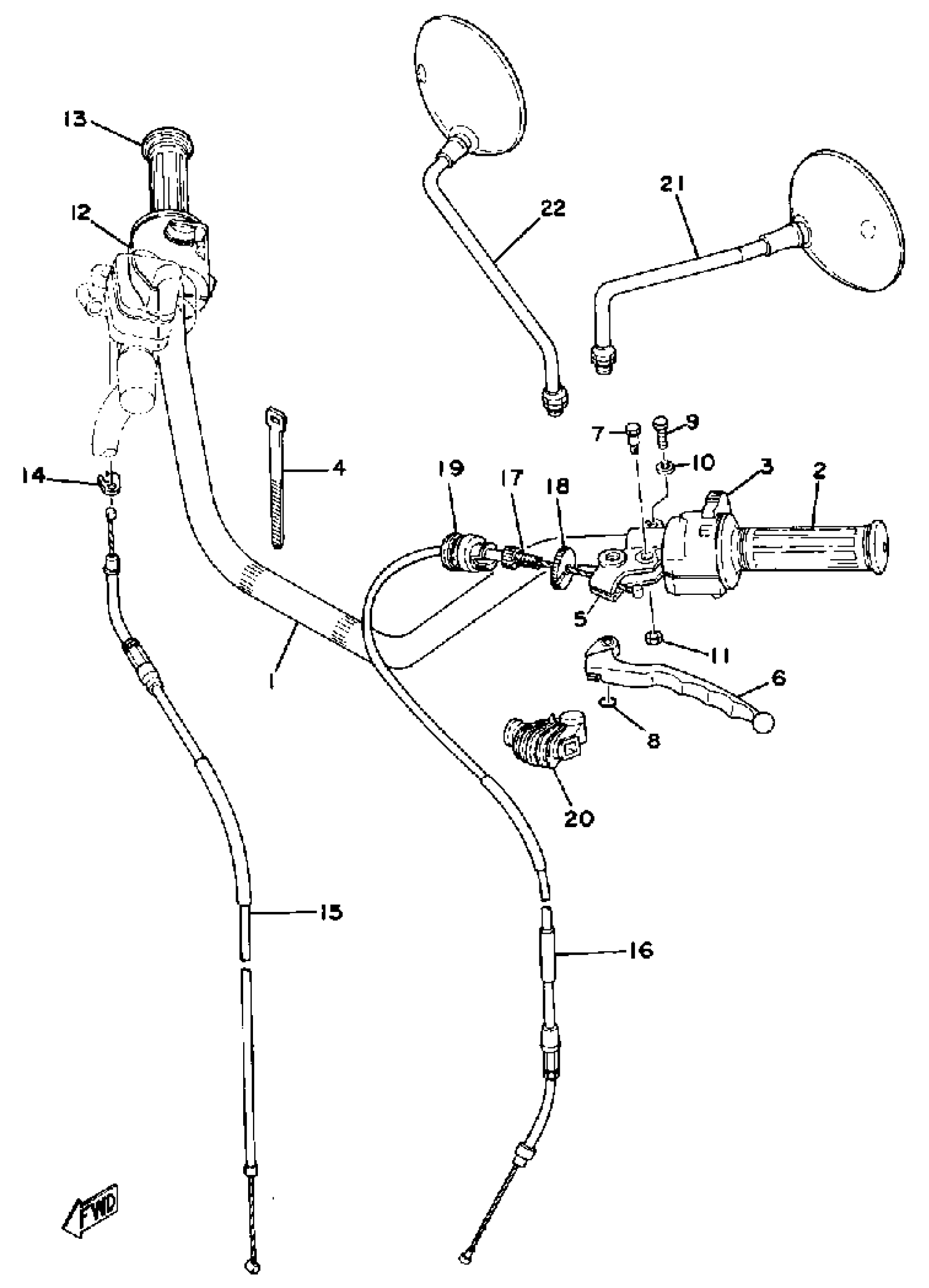

Yamaha XS750F (XS750) 1979 HANDLE - WIRE Diagram

#

Description
Price

1

HANDLEBAR

4H9-26111-00-00

Unavailable

2

GRIP LH

2H7-26241-01-00

$11.99

3

SWITCH, HANDLE 3

2G2-83973-00-98

Unavailable

4

BAND, SWITCH CORD

437-83936-01-00

$7.99

5

HOLDER, LEVER (L.H) (371,447)

341-82911-00-00

Unavailable

6

LEVER L

2H0-83912-31-00

$31.99

7

BOLT(1FG)

90109-06798-00

$8.49

8

O-RING (2H7)

93210-11368-00

$5.60

9

BOLT, HEXAGON

97013-06022-00

$0.90

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

SWITCH, HANDLE 2

2G2-83975-00-98

Unavailable

13

GRIP ASSY

2H7-26240-01-00

$18.49

14

HOLDER,

584-26393-02-00

Unavailable

15

CABLE, THROTTLE 1

1T4-26311-01-00

Unavailable

16

CABLE, CLUTCH

1T4-26335-00-00

Unavailable

17

BOLT

90123-08002-00

Unavailable

18

NUT

90179-08030-00

Unavailable

19

BOOT, WIRE

1E6-26342-00-00

Unavailable

20

COVER, LEVER

1E6-26372-00-00

Unavailable

21

MIRROR ASSEMBLY LH

4G0-26290-10-00

Unavailable

22

MIRROR ASSEMBLY RH

2H7-26290-00-00

Unavailable
