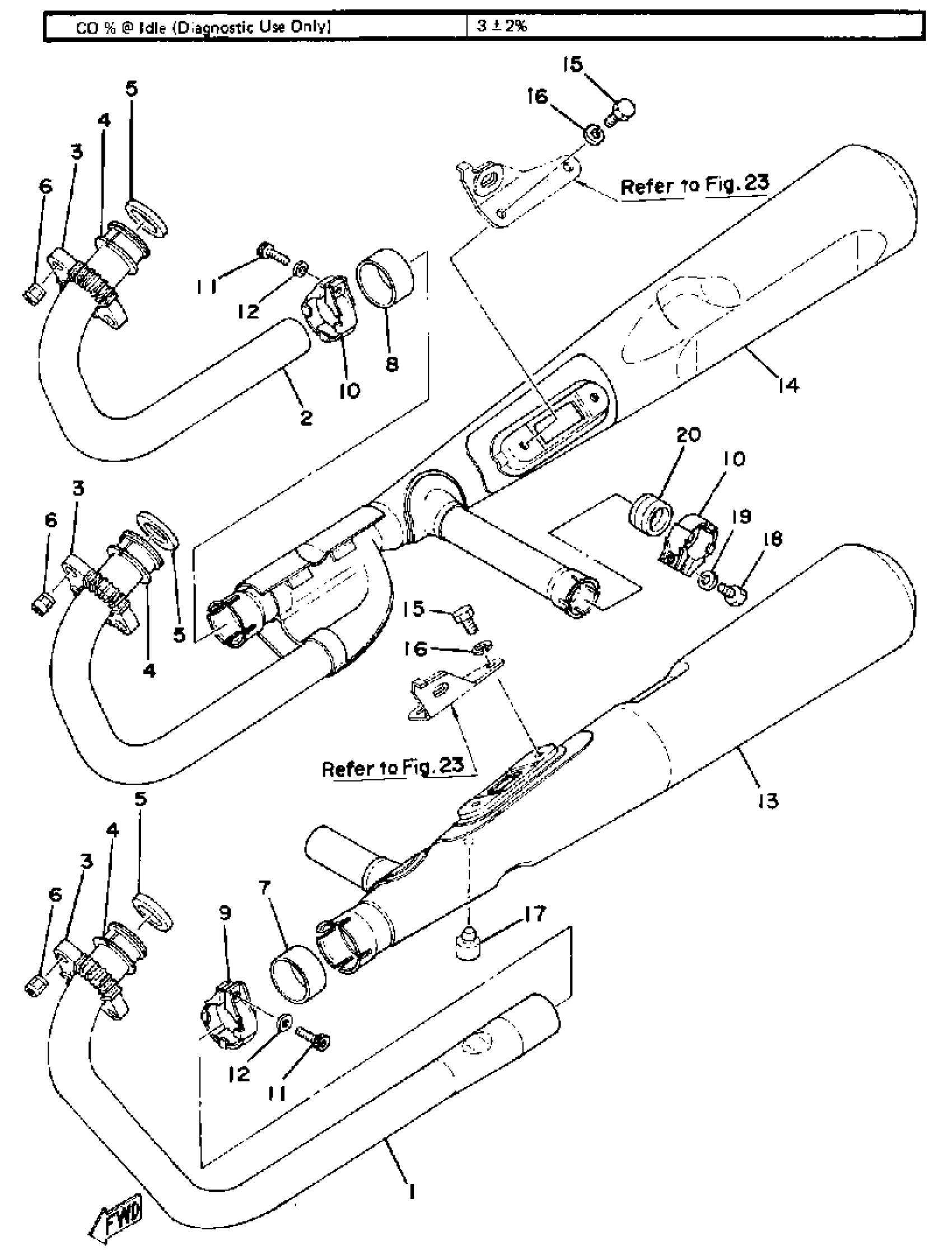

Yamaha XS750F (XS750) 1979 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST L
1T4-14611-01-00
Unavailable
2
PIPE, EXHAUST 3
1T4-14631-10-00
Unavailable
3
NUT, RING
(4H1-14612-00-00)
Unavailable
4
FLANGE, EXST PIPE
1J7-14614-00-00
Unavailable
7
GASKET, MUFF
1T4-14714-10-00
Unavailable
8
GASKET, MUFF
1J7-14714-10-00
Unavailable
9
BAND, SILENCER
1T4-14788-00-00
Unavailable
10
BAND, SILENCER
1L9-14788-00-00
Unavailable
13
MUFFLER L
2F3-14711-80-00
Unavailable
14
MUFFLER 2
(2K3-14702-00-00)
Unavailable
16
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
17
STOPPER MAIN STAND
278-27114-00-00
Unavailable
18
BOLT, HEXAGON
97017-06025-00
Unavailable
20
GASKET, EXHAUST 4
3JJ-14653-00-00
Unavailable
