Description

Price

1

MAIN SWITCH ASSEMBLY

2F3-82508-50-00

Unavailable

2

WASHER, SPECIAL

533-82517-00-00

Unavailable

3

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

4

WASHER, PLATE (371)

90201-06412-00

$5.60

5

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

6

WIRE, LEAD

(1J7-82507-00-00)

Unavailable

7

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

8

GASKET (5R6)

90430-10171-00

$3.18

9

STOP SWITCH ASSY

2F1-82530-03-00

$44.99

10

RECTIFIER/REG ASSEMBLY

1T4-81960-A0-00

Unavailable

11

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

12

WASHER, SPRING

92995-06100-00

Unavailable

13

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

Unavailable

14

RESERVE LIGHTING UNIT ASSEMBLY

2F9-84308-00-00

Unavailable

15

SCREW PAN HEAD

98580-06020-00

$8.49

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

19

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

20

RELAY ASSEMBLY

2H7-81950-10-00

Unavailable

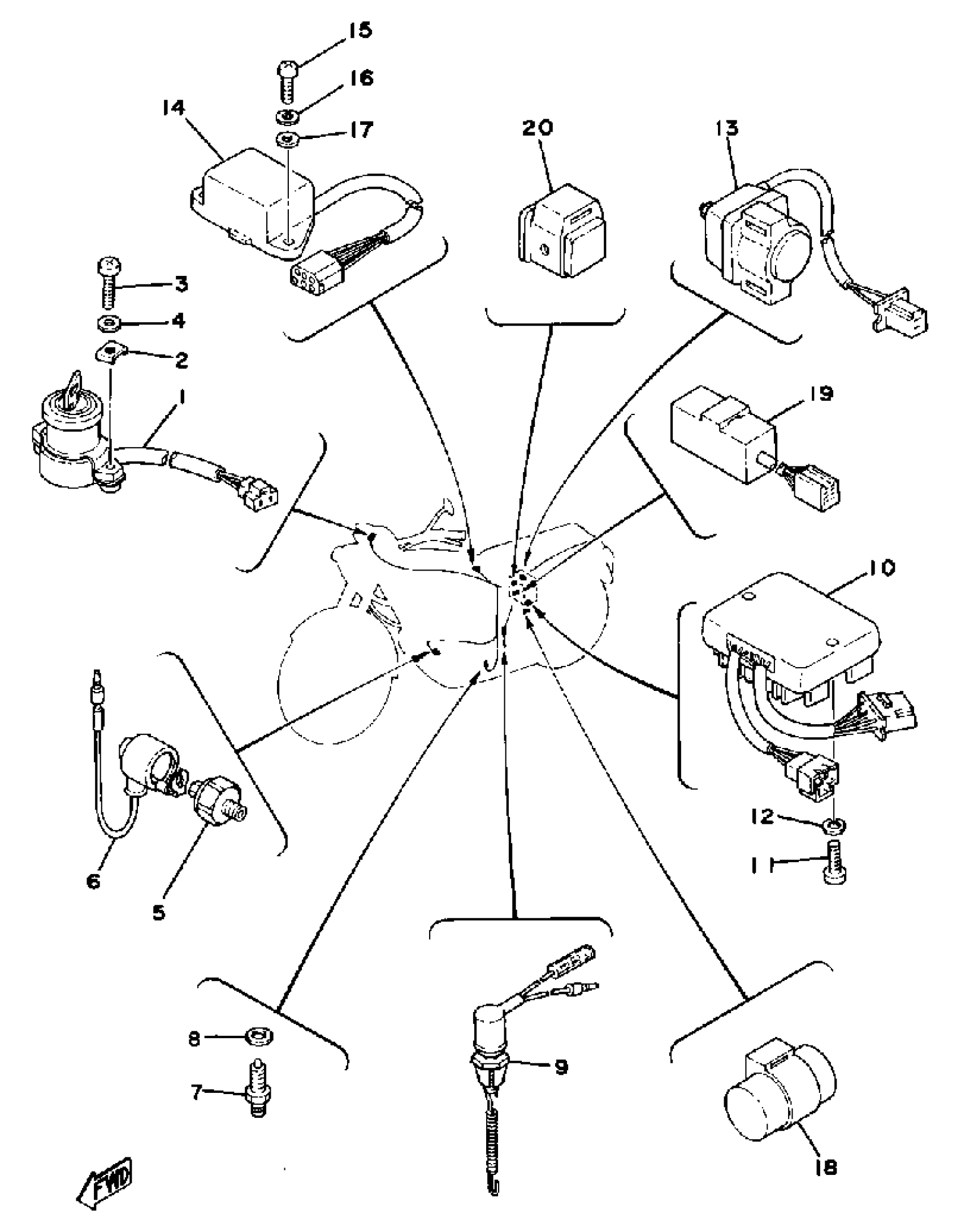

Yamaha XS750F (XS750) 1979 ELECTRICAL 2 Diagram

MAIN SWITCH ASSEMBLY

WASHER, SPECIAL

SCREW, PAN HEAD(4MY)

WASHER, PLATE (371)

OIL PRESSURE SWITCH ASSEMBLY

WIRE, LEAD

NEUTRAL SWITCH ASSY

GASKET (5R6)

STOP SWITCH ASSY

RECTIFIER/REG ASSEMBLY

SCREW, PAN HEAD (76T)

WASHER, SPRING

STARTER SWITCH ASSEMBLY

RESERVE LIGHTING UNIT ASSEMBLY

SCREW PAN HEAD

WASHER, SPRING

WASHER, PLAIN (646)

FLASHER RELAY ASSY

FLASHER CANCELING UNIT

RELAY ASSEMBLY
