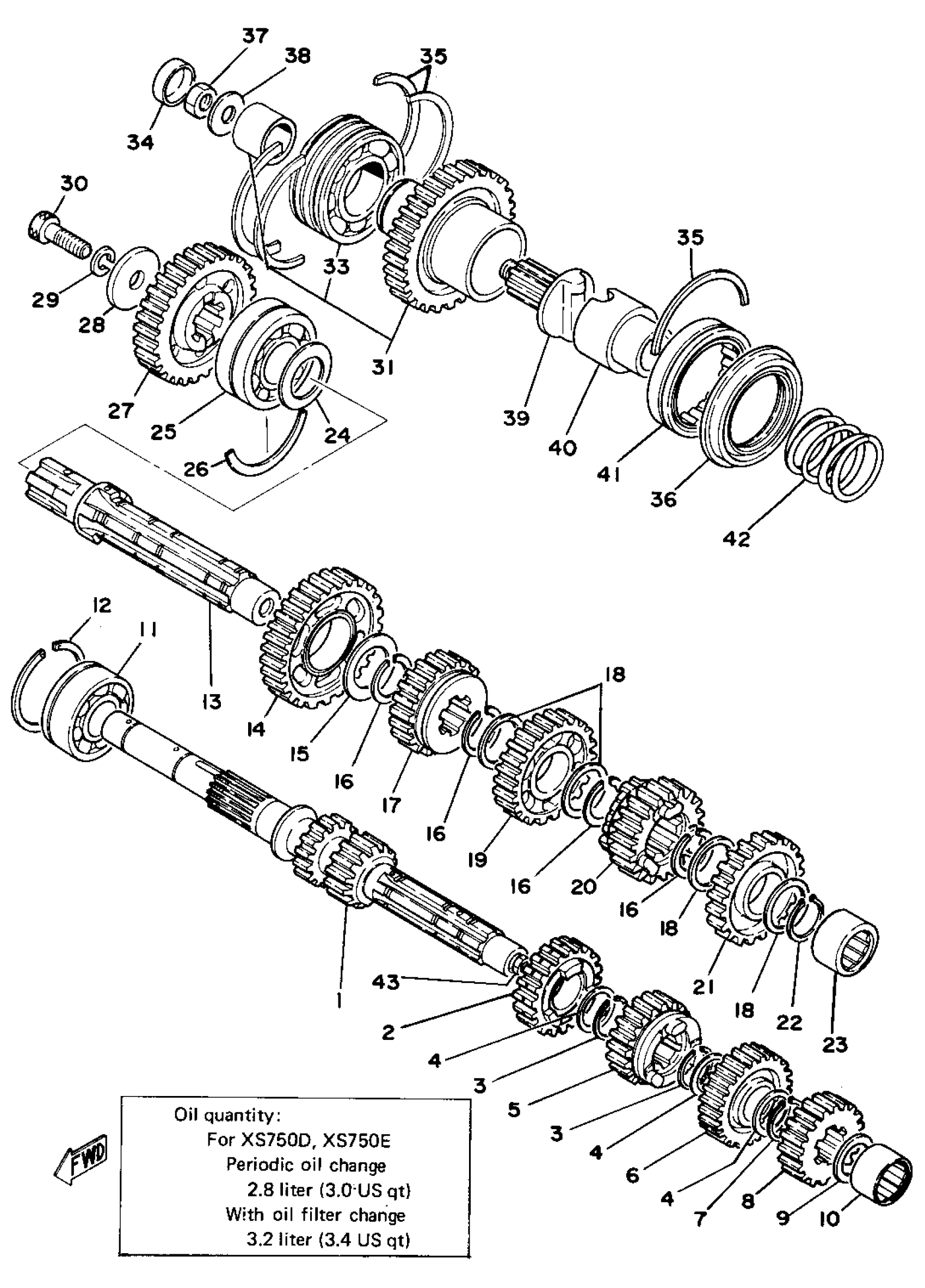

Yamaha XS750E (XS750) 1978 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(1J7-17411-02-00)

Unavailable

2

GEAR, 4TH PINION

1J7-17141-01-00

Unavailable

3

CIRCLIP

93440-25020-00

$9.49

4

WASHER, PLATE(59W)

90201-253K0-00

$8.49

5

GEAR, 3RD PINION

1J7-17131-01-00

Unavailable

6

GEAR, 5TH PINION

1J7-17151-04-00

Unavailable

7

CIRCLIP (256)

93410-25017-00

$3.76

8

GEAR, 2ND PINION

256-17121-01-00

Unavailable

9

SHIM 1

(137-17427-00-09)

Unavailable

10

BEARING, CYLINDER.#11

93311-32024-00

Unavailable

11

BEARING(89A)

93305-20509-00

Unavailable

12

CIRCLIP (256)

93440-52014-00

$10.49

13

AXLE, DRIVE

1J7-17421-03-00

Unavailable

14

GEAR, 1ST WHEEL

1J7-17211-02-00

Unavailable

15

WASHER, PLATE

90201-30602-00

Unavailable

16

CIRCLIP, OUTER

93440-30015-00

Unavailable

17

GEAR, 4TH WHEEL

1J7-17241-03-00

Unavailable

18

SHIM

1J7-17219-00-10

Unavailable

18

SHIM

1J7-17219-00-12

Unavailable

19

GEAR, 3RD WHEEL

1J7-17231-03-00

Unavailable

20

GEAR, 5TH WHEEL

1J7-17251-03-00

Unavailable

21

GEAR, 2ND WHEEL

1J7-17221-03-00

Unavailable

22

CIRCLIP(4A6)

99009-30400-00

Unavailable

23

BEARING, CYLINDER.#11

93311-32425-00

Unavailable

24

WASHER, PLATE

90201-30602-00

Unavailable

25

BEARING

93305-20603-00

Unavailable

26

CIRCLIP, OUTER

(93440-62046-00)

Unavailable

27

GEAR, MIDDLE DRIVE

(2G2-17582-00-00)

Unavailable

28

WASHER, PLATE

90201-10595-00

Unavailable

29

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

30

BOLT, SOCKET

91317-10030-00

Unavailable

31

MIDDLE DRIVEN GEAR

(2F3-W1758-00-00)

Unavailable

32

COLLAR

(90387-35544-00)

Unavailable

33

. BEARING

93306-20705-00

Unavailable

34

PLUG, TIGHT

(90331-30014-00)

Unavailable

35

CIRCLIP (1J7)

93440-72049-00

Unavailable

36

OIL SEAL, SW-TYPE

93103-50103-00

Unavailable

37

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

38

WASHER, PLATE

(90201-12622-00)

Unavailable

39

CAM, DRIVE

1J7-17526-00-00

Unavailable

40

CAM, DRIVEN

1J7-17527-00-00

Unavailable

41

BEARING, CYLINDER. #90

(93390-00014-00)

Unavailable

42

SPRING, COMPRESSION

90501-40467-00

Unavailable

43

BUSH, SOLID

(90380-08059-00)

Unavailable
