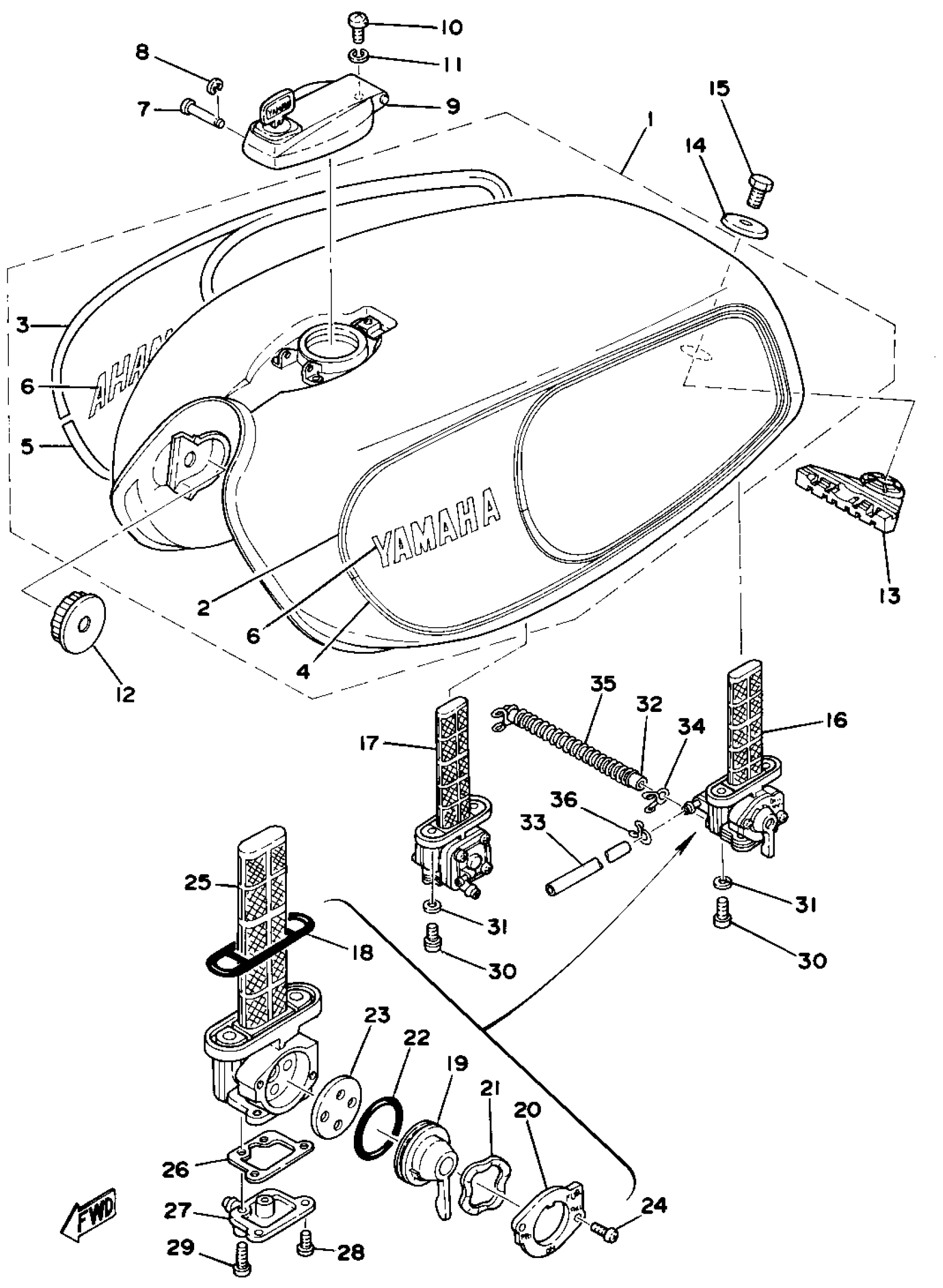

Yamaha XS750E (XS750) 1978 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

(1J7-24110-00-04)

Unavailable

1

FUEL TANK

(1J7-24110-00-05)

Unavailable

2

GRAPHIC, FUEL TNK 1

(2F3-24244-00-00)

Unavailable

2

GRAPHIC, FUEL TNK 1

(2F3-24244-10-00)

Unavailable

3

GRAPHIC, FUEL TNK 3

(2F3-24246-00-00)

Unavailable

3

GRAPHIC, FUEL TNK 3

(2F3-24246-10-00)

Unavailable

4

GRAPHIC, FUEL TNK 2

(2F3-24245-00-00)

Unavailable

4

GRAPHIC, FUEL TNK 2

(2F3-24245-10-00)

Unavailable

5

GRAPHIC, FUEL TNK 4

(2F3-24247-00-00)

Unavailable

5

GRAPHIC, FUEL TNK 4

(2F3-24247-10-00)

Unavailable

6

EMBLEM, YAMAHA(PASTEL GOLD)

99245-00120-00

Unavailable

6

EMBLEM, YAMAHA

99241-00120-00

$24.99

7

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

8

CIRCLIP (604)

93430-02001-00

$8.49

9

CAP ASSEMBLY

1E7-24602-00-00

Unavailable

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

12

DAMPER, LOCATING 1

1J7-24181-01-00

Unavailable

13

DAMPER, TANK LOCATING 2

1J7-24182-01-00

Unavailable

14

WASHER

90209-08008-00

Unavailable

15

BOLT(62E)

97013-08012-00

Unavailable

16

FUEL COCK ASSEMBLY 1

2F3-24500-00-00

Unavailable

17

FUEL COCK ASSEMBLY 2

2F3-24510-00-00

Unavailable

18

O-RING

1J7-24512-00-00

Unavailable

19

. LEVER, COCK

1J7-24524-00-00

Unavailable

19

LEVER, COCK

(1J7-24524-10-00)

Unavailable

20

. PLATE, LVR FITTING

1J7-24525-00-00

Unavailable

20

PLATE, LVR FITTING

(1J7-24525-10-00)

Unavailable

21

. WASHER, WAVE

1J7-24518-00-00

Unavailable

22

SEAL, FUEL COCK

1J7-24534-00-00

Unavailable

23

VALVE

16G-24523-00-00

Unavailable

24

SCREW, OVAL HEAD

(98601-03010-00)

Unavailable

25

. NET, FILTER 1

1J7-24514-02-00

Unavailable

26

GASKET, DRAIN COVER

1J7-24522-00-00

Unavailable

27

CUP, FILTER

(1J7-24521-00-00)

Unavailable

28

SCREW, FLAT

98707-04008-00

Unavailable

29

SCREW, FLAT

98707-04016-00

Unavailable

30

SCREW 366241430000

90149-06008-00

Unavailable

31

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

32

HOSE (L450)

90445-10144-00

Unavailable

33

HOSE

90445-07375-00

Unavailable

34

CLIP

90467-090A2-00

Unavailable

35

SPRING, COMPRESSION

90504-06023-00

Unavailable

36

CLIP (1J7)

90467-07029-00

Unavailable
