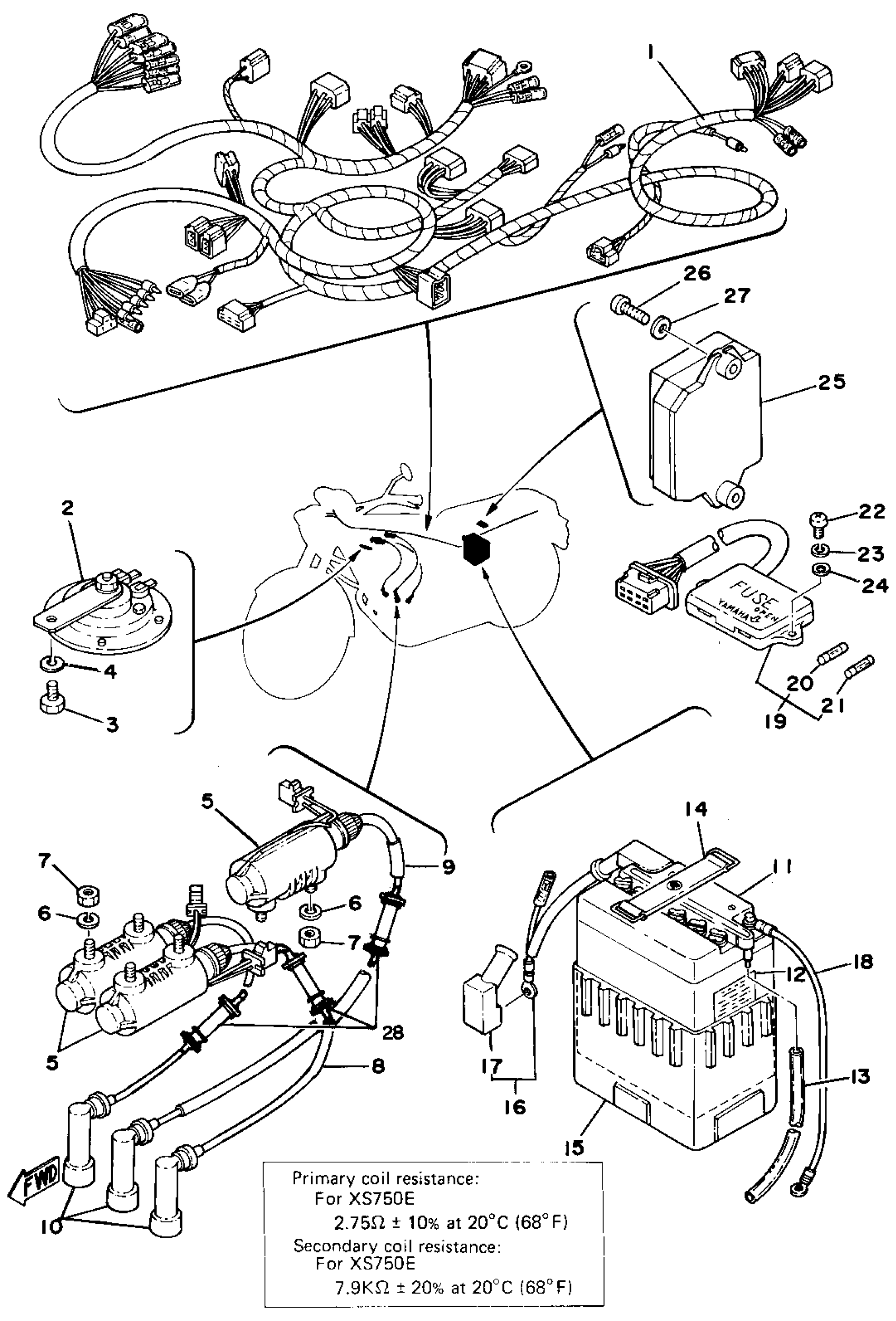

Yamaha XS750E (XS750) 1978 ELECTRICAL 1 Diagram

#

Description
Price

1

WIRE HARNESS ASSEMBLY

(2F3-82590-51-00)

Unavailable

1

WIRE HARNESS ASSEMBLY

(2F3-82590-60-00)

Unavailable

2

HORN

1J7-83371-22-00

Unavailable

3

BOLT(JA9)

90101-08691-00

$4.29

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

IGNITION COIL ASSY

4GR-81958-00-00

Unavailable

6

WASHER, SPRING

92995-06100-00

Unavailable

7

NUT(650)

95380-06700-00

$8.49

8

CORD, HIGH TENSION 1

4X7-82341-00-00

$80.99

9

CORD, high tension 2

41R-82342-00-00

Unavailable

10

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

10

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

11

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

12

LABEL, BATTERY

40A-82141-G0-00

Unavailable

13

HOSE

(90445-08337-00)

Unavailable

14

BAND,BATTERY

7H3-82131-00-00

Unavailable

15

SEAT, BATTERY

447-82122-00-00

Unavailable

16

WIRE, PLUS LEAD

1J7-82115-00-00

Unavailable

17

COVER, LEAD WIRE

(1J7-82119-00-00)

Unavailable

18

WIRE, MINUS LEAD

1J7-82116-00-00

Unavailable

19

FUSE BOX ASSEMBLY

1J7-82170-40-00

Unavailable

20

FUSE

1A0-82161-00-00

Unavailable

21

FUSE

1A0-82151-00-00

Unavailable

22

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

WASHER, PLAIN (646)

92990-05600-00

Unavailable

25

IGNITOR UNIT ASSEMBLY 1

2F3-82305-11-00

Unavailable

26

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

27

WASHER, PLATE

90201-06020-00

Unavailable

28

DIODE

(2F3-81908-00-00)

Unavailable
