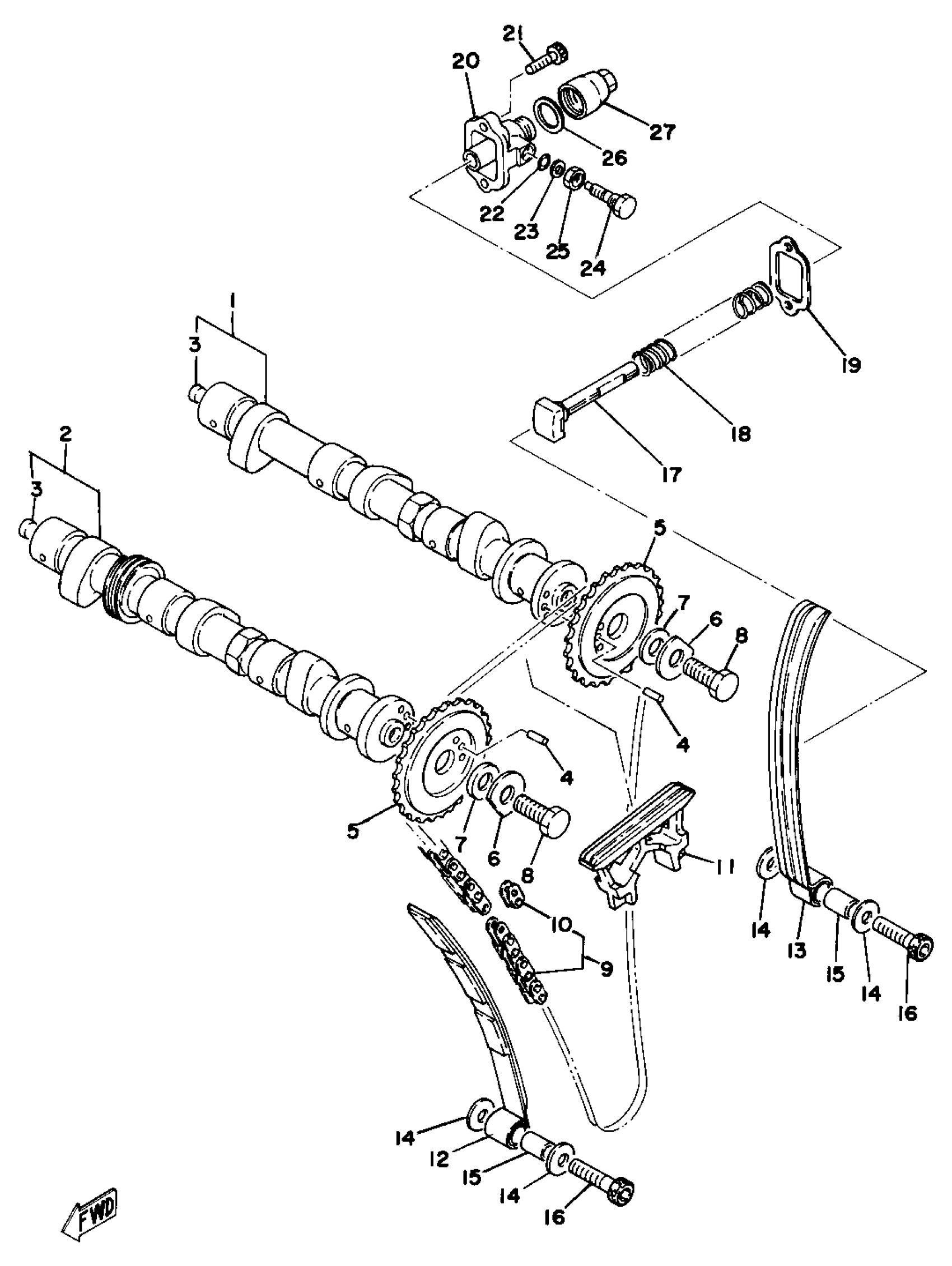

Yamaha XS750E (XS750) 1978 CAMSHAFT - CHAIN TENSIONER Diagram

#

Description

Price

1

CAMSHAFT 1

(3J2-12171-00-00)

Unavailable

2

CAMSHAFT 2

(1T5-12181-00-00)

Unavailable

3

PLUG, TIGHT

(90331-10011-00)

Unavailable

4

PIN, DOWEL

93604-10010-00

Unavailable

5

SPROCKET, CAM CHAIN

1J7-12176-01-00

Unavailable

6

WASHER, SPEC''L SHAP

(90209-10149-00)

Unavailable

7

WASHER, PLATE

(90201-10596-00)

Unavailable

8

BOLT(6TD)

97017-10025-00

$8.49

9

CHAIN

94500-02124-00

Unavailable

10

JOINT, CHAIN (583)

94600-02001-00

$7.99

11

GUIDE, STOPPER 2

1J7-12241-00-00

Unavailable

12

DAMPER, CHAIN 1 (1J7-12251-00)

1J7-12251-01-00

Unavailable

13

DAMPER, CHAIN 2

1J7-12252-00-00

Unavailable

14

WASHER, PLATE 1012832300

90201-06066-00

$9.49

15

COLLAR

90387-06540-00

Unavailable

16

BOLT,SOCKET

91317-06035-00

Unavailable

17

ROD, CHN TENSIONER

1J7-12217-00-00

Unavailable

18

SPRING, COMPRESSION

90501-16417-00

Unavailable

19

GASKET,TENSUR CASE

1J7-12213-10-00

Unavailable

20

CASE, CHAIN TENSNR

2G2-12212-00-00

Unavailable

21

BOLT,SOCKET

91317-06020-00

Unavailable

22

O-RING (26H)

93210-06632-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

BOLT

90109-08442-00

Unavailable

25

. NUT

95380-08700-00

Unavailable

26

GASKET (716)

90430-16152-00

Unavailable

27

CAP, TENSIONER CASE

1J7-12215-01-00

Unavailable
