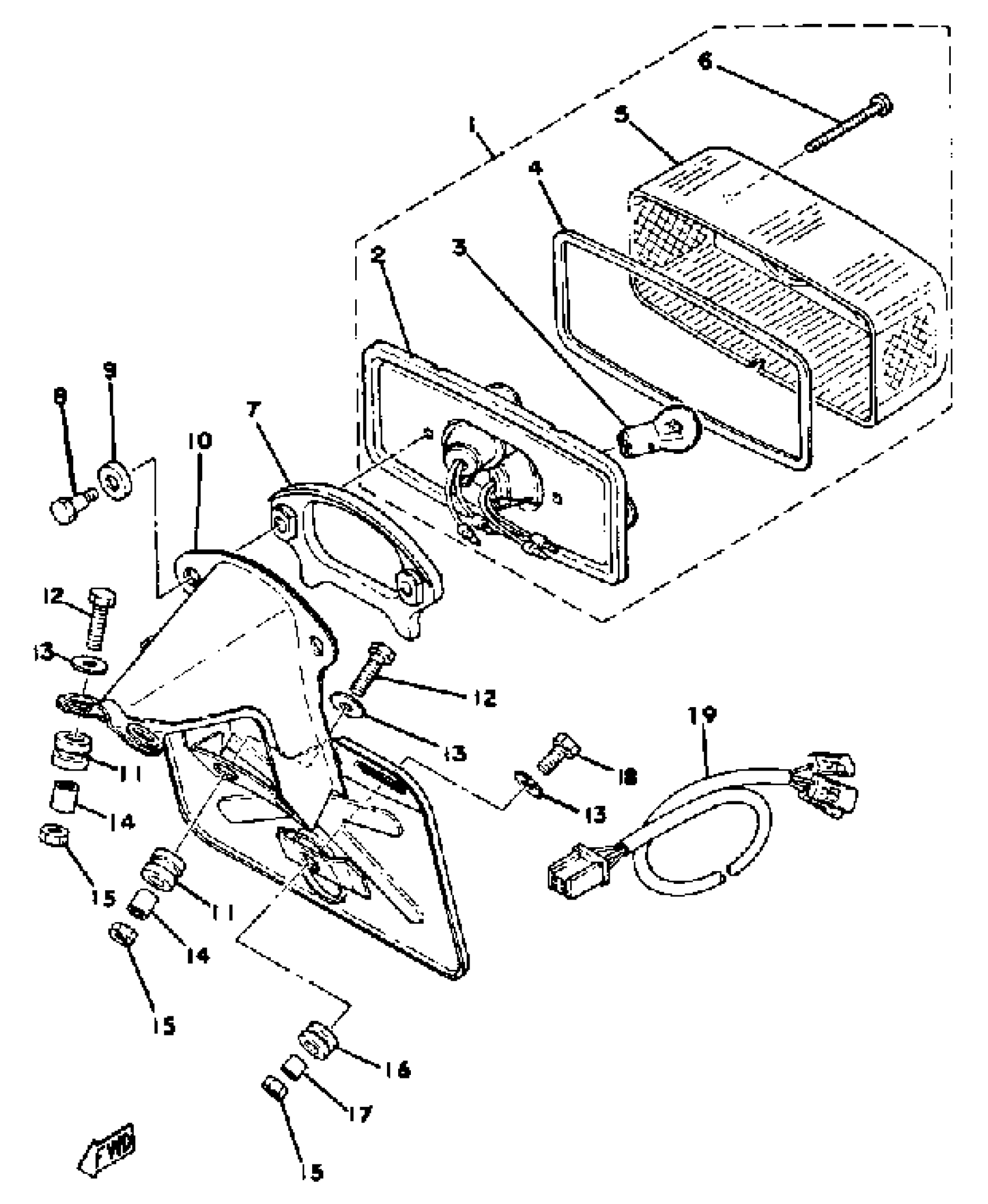

Yamaha XS750E_227501 (XS750E_227501) 1978 TAIL LAMP Diagram
#
Description
Price
1
TAILLIGHT UNIT ASSEMBLY
2A2-84710-60-00
Unavailable
2
. BASE, TAILLIGHT
(1A0-84711-60-00)
Unavailable
4
. GASKET, TAIL LENS
1A0-84723-60-00
Unavailable
5
. LENS, TAILLIGHT
1A0-84721-60-00
Unavailable
6
SCREW, PANHEAD (4G7)
98580-04055-00
Unavailable
7
SHEET, BASE
1A0-84712-60-00
Unavailable
8
BOLT, TAILLAMP
1A0-84726-60-00
Unavailable
10
BRACKET, LICENSE
(2F3-84751-60-33)
Unavailable
15
NUT, HEXAGON
95380-06600-00
Unavailable
16
GROMMET
(90480-13016-00)
Unavailable
17
COLLAR(8R4)
90387-062N2-00
Unavailable
18
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
19
CORD, TAILLIGHT
(2F3-84717-00-00)
Unavailable
