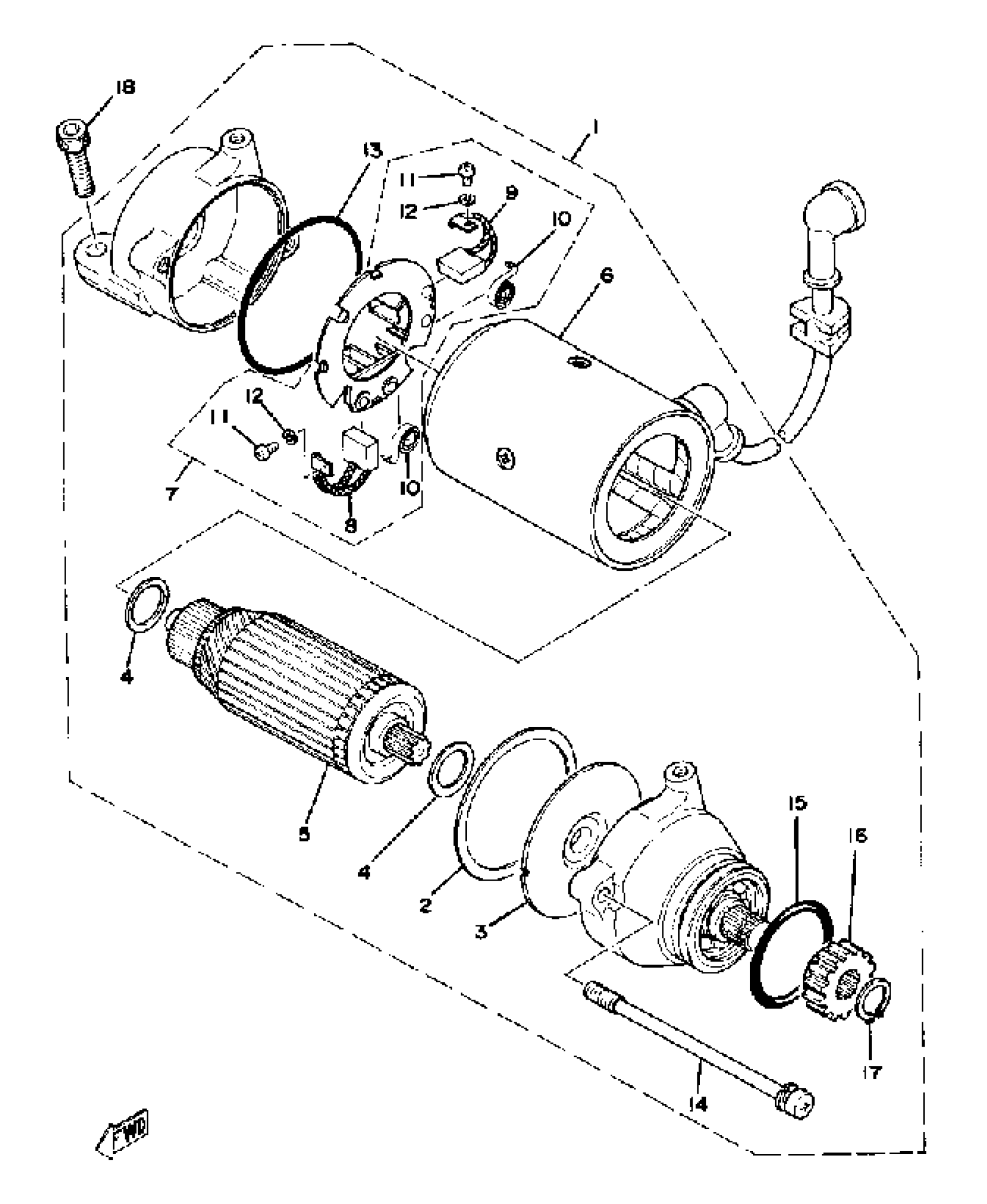

Yamaha XS750E_227501 (XS750E_227501) 1978 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASSEMBLY

(1J7-81800-60-00)

Unavailable

2

. GASKET

371-81844-20-00

Unavailable

3

PLATE

(371-81845-20-00)

Unavailable

4

. WASHER KIT

371-81809-20-00

Unavailable

5

. ARMATURE ASSEMBLY

3J2-81850-60-00

Unavailable

6

STATOR ASSEMBLY

(1J7-81810-60-00)

Unavailable

7

. BRUSH HOLDER ASSEMBLY

1J7-81840-60-00

Unavailable

8

BRUSH 1

371-81811-20-00

Unavailable

9

BRUSH 2

371-81812-20-00

Unavailable

10

.. SPRING, BRUSH

371-81813-20-00

Unavailable

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

WASHER, SPRING

92990-03100-00

$8.49

13

.. O-RING

371-81847-20-00

Unavailable

14

BOLT

(1J7-81826-60-00)

Unavailable

15

O-RING

1J7-81847-60-00

$38.99

16

. GEAR, STARTING MTR

1J7-15511-00-00

Unavailable

17

CIRCLIP(10Y)

99009-12400-00

Unavailable

18

BOLT,SOCKET

91314-08025-00

Unavailable
