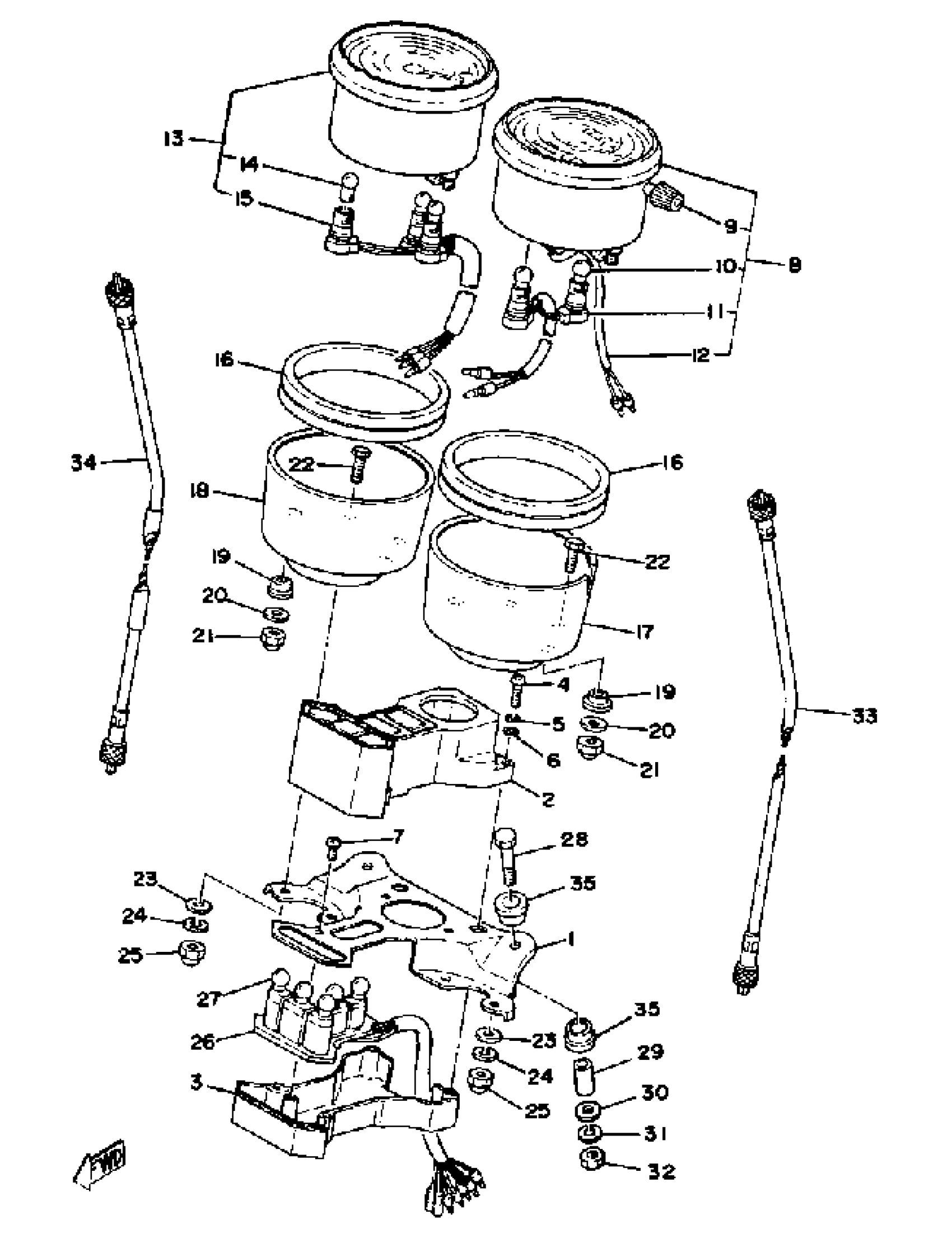

Yamaha XS750E_227501 (XS750E_227501) 1978 SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

BRACKET, METER

(1J3-83519-00-00)

Unavailable

2

PILOT BOX, UPPER

1J7-83568-71-00

Unavailable

3

PILOT BOX, LOWER

1J3-83569-71-00

Unavailable

4

SCREW, PAN HEAD

98517-04020-00

$8.49

5

WASHER(6TA)

92907-04100-00

$8.49

6

WASHER(JF2)

92907-04600-00

$1.71

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

SPEEDOMETER ASSEMBLY

1J3-83570-71-00

Unavailable

9

KNOB, TRIP METER

4SV-83578-00-00

$18.49

10

BULB (12V-3.4W)

123-83516-21-00

$4.26

11

SOCKET, METER

(584-83536-01-00)

Unavailable

12

. SENDER

1J3-83556-01-00

Unavailable

13

TACHOMETER ASSEMBLY

2K3-83540-F0-00

Unavailable

14

BULB (12V-3.4W)

123-83516-21-00

$4.26

15

SOCKET CORD ASSEMBLY

(1J3-83520-01-00)

Unavailable

16

DAMPER

3H3-83513-00-00

Unavailable

17

COVER, SPEEDOMETER

584-83507-00-00

Unavailable

18

COVER, TACHOMETER

584-83508-00-00

Unavailable

19

DAMPER, METER COVER FITTING

584-83523-00-00

Unavailable

20

. WASHER, PLAIN

92990-05200-00

Unavailable

21

NUT (CROWN)

95303-05800-00

Unavailable

22

BOLT

584-83546-00-00

Unavailable

23

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

NUT (J17)

95380-06800-00

Unavailable

26

SOCKET CORD ASSEMBLY

(1J7-83509-70-00)

Unavailable

27

BULB (12V-3.4W)

123-83516-21-00

$4.26

28

BOLT(8BC)

97017-06040-00

Unavailable

29

COLLAR (877)

90387-06249-00

Unavailable

30

WASHER, PLATE

90201-06380-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

NUT, HEXAGON

95380-06600-00

Unavailable

33

SPEEDOMETER CABLE ASSY

16M-83550-01-00

Unavailable

34

TACHOMETER CABLE

2G2-83560-00-00

Unavailable

35

DAMPER, METER BRACKET

584-83541-00-00

Unavailable
