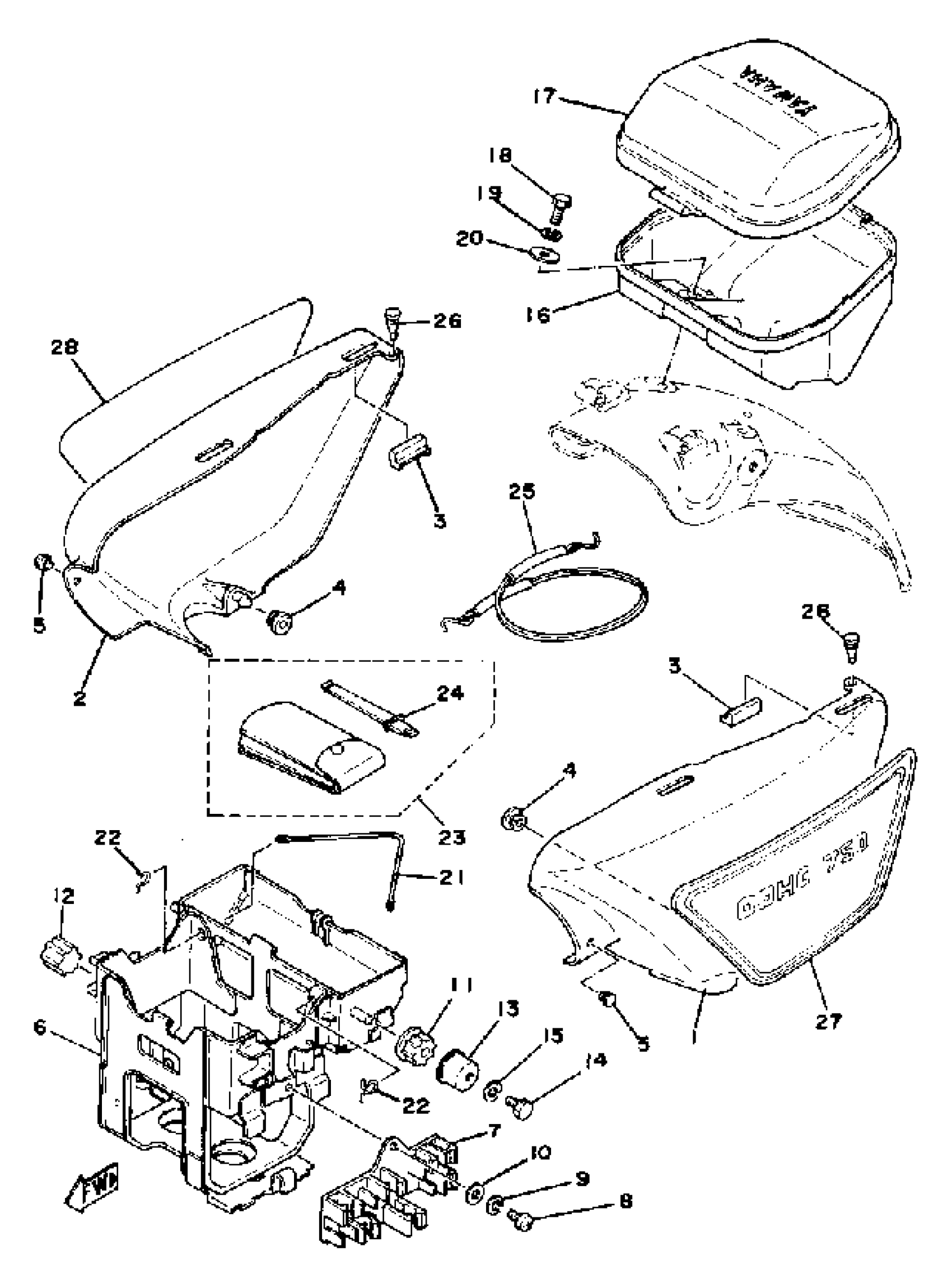

Yamaha XS750E_227501 (XS750E_227501) 1978 SIDE COVER - BATTERY BOX Diagram

#

Description
Price

1

COVER, SIDE 1

(2F3-21711-00-20)

Unavailable

1

COVER, SIDE 1

2F3-21711-00-E9

Unavailable

2

COVER, SIDE 2

(2F3-21721-00-20)

Unavailable

2

COVER, SIDE 2

2F3-21721-00-E9

Unavailable

3

DAMPER, SIDE COVER

360-21717-01-00

Unavailable

4

GROMMET(41Y)

90480-01401-00

$8.49

5

DAMPER, SIDE COVER

1J7-21717-00-00

$6.99

6

BOX

(3J3-21170-01-00)

Unavailable

7

HOLDER, KNOB

(1J7-21794-00-00)

Unavailable

8

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

DAMPER

1J7-21746-00-00

Unavailable

12

DAMPER, SIDE COVER

2J2-21729-00-00

$5.49

13

BRACKET, DAMPER

(1J7-21798-00-00)

Unavailable

14

BOLT(3JP)

97017-06010-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

BOX

1T4-2177A-00-00

Unavailable

17

LID

1T4-2177E-00-00

Unavailable

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

21

BAND, TOOL

256-21376-00-00

Unavailable

22

HOOK, TOOL BAND

256-21366-00-00

Unavailable

23

TOOL KIT

3J3-W2810-00-00

Unavailable

24

. GAUGE, OIL LEVEL

1J7-2815A-00-00

Unavailable

25

WIRE, HOOK

1T4-2814A-00-00

Unavailable

26

GROMMET (1J7)

90480-05201-00

Unavailable

27

EMBLEM 1

(2F3-21781-00-00)

Unavailable

27

EMBLEM 1

(2F3-21781-10-00)

Unavailable

28

EMBLEM 2

(2F3-21782-00-00)

Unavailable

28

EMBLEM 2

(2F3-21782-10-00)

Unavailable
