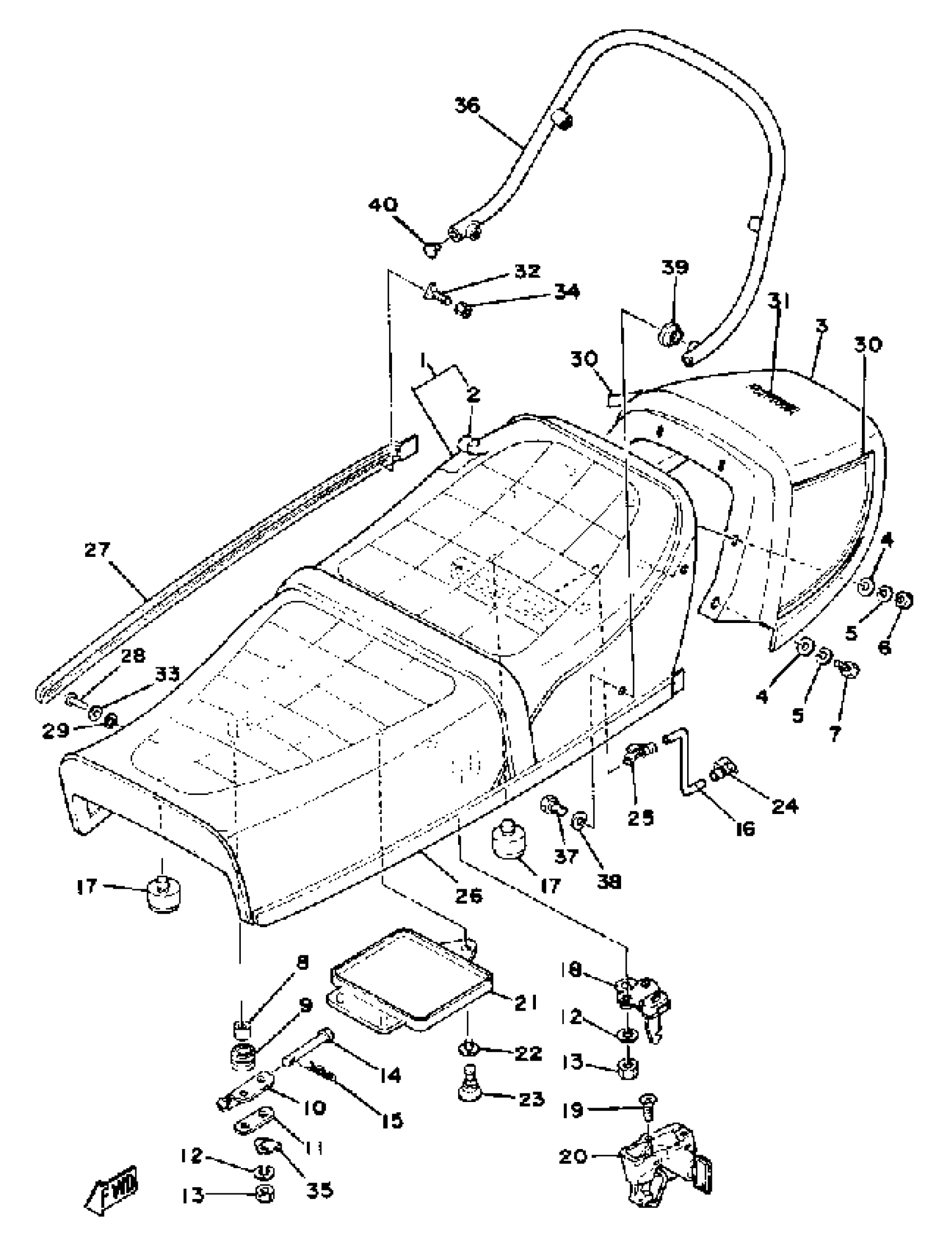

Yamaha XS750E_227501 (XS750E_227501) 1978 SEAT Diagram
#
1
DOUBLE SEAT ASSEMBLY (2F3-24730-90)
2F3-W2472-00-00
Unavailable
2
. COVER, DOUBLE SEAT
1T4-24731-00-00
Unavailable
3
COVER, TAIL
(1T4-24756-00-20)
Unavailable
3
COVER, TAIL
(1T4-24756-00-E9)
Unavailable
4
. WASHER, PLAIN
92990-05200-00
Unavailable
7
BOLT, HEXAGON
97313-05016-00
Unavailable
9
DAMPER, SEAT
1J7-24723-00-00
Unavailable
10
HINGE, SEAT
1J7-24726-00-00
Unavailable
11
WASHER, SEAT
1L9-24746-00-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
13
NUT, HEXAGON
95380-06600-00
Unavailable
15
CLIP (156-83525-00)
90468-10050-00
Unavailable
16
STOPPER
(1J7-24768-00-00)
Unavailable
17
PAD, SEAT
1T4-24741-00-00
Unavailable
18
BRACKET, SEAT
371-24728-02-00
Unavailable
19
SCREW, FLAT
98707-06012-00
Unavailable
20
SEAT LOCK ASSEMBLY
584-24705-00-00
Unavailable
21
LID
2R6-28185-00-00
Unavailable
22
GROMMET (341-28187-00)
90480-06007-00
Unavailable
23
PLUNGER
341-28188-00-00
Unavailable
24
BRACKET, SEAT
1J7-24718-00-00
Unavailable
25
STAY, REAR
1J7-24719-00-00
Unavailable
26
MOLD, SEAT
(1T4-24785-00-20)
Unavailable
26
MOLD, SEAT
(1T4-24785-00-E9)
Unavailable
27
MOLD, SEAT
(1T4-24785-10-20)
Unavailable
27
MOLD, SEAT
(1T4-24785-10-E9)
Unavailable
28
RIVET
1J7-24789-00-00
Unavailable
29
SPEED NUT
1J7-24735-00-00
Unavailable
30
GRAPHIC, TAIL COVER
(1T4-24757-00-00)
Unavailable
30
GRAPHIC, TAIL COVER
(1T4-24767-00-00)
Unavailable
30
GRAPHIC, TAIL COVER
(2F3-24757-00-00)
Unavailable
30
GRAPHIC, TAIL COVER
(2F3-24767-00-00)
Unavailable
31
EMBLEM, YAMAHA
99241-00100-00
Unavailable
31
EMBLEM, YAMAHA
99245-00100-00
Unavailable
32
BOLT, LEVER FITTING
1J7-24777-00-00
Unavailable
33
WASHER, SPECIAL
1J7-24722-00-00
Unavailable
34
NUT(6TA)
95307-04600-00
Unavailable
35
STOPPER
444-24768-00-00
Unavailable
36
HANDLE, SEAT
1T4-24773-00-00
Unavailable
37
BOLT, HEXAGON
97017-08016-00
Unavailable
38
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
39
COVER, SEAT HANDLE
1T4-24796-00-00
Unavailable
40
GROMMET
1T4-24742-00-00
Unavailable
