- XS750E_227501 (XS750E_227501) 1978
OIL PUMP - OIL CLEANER

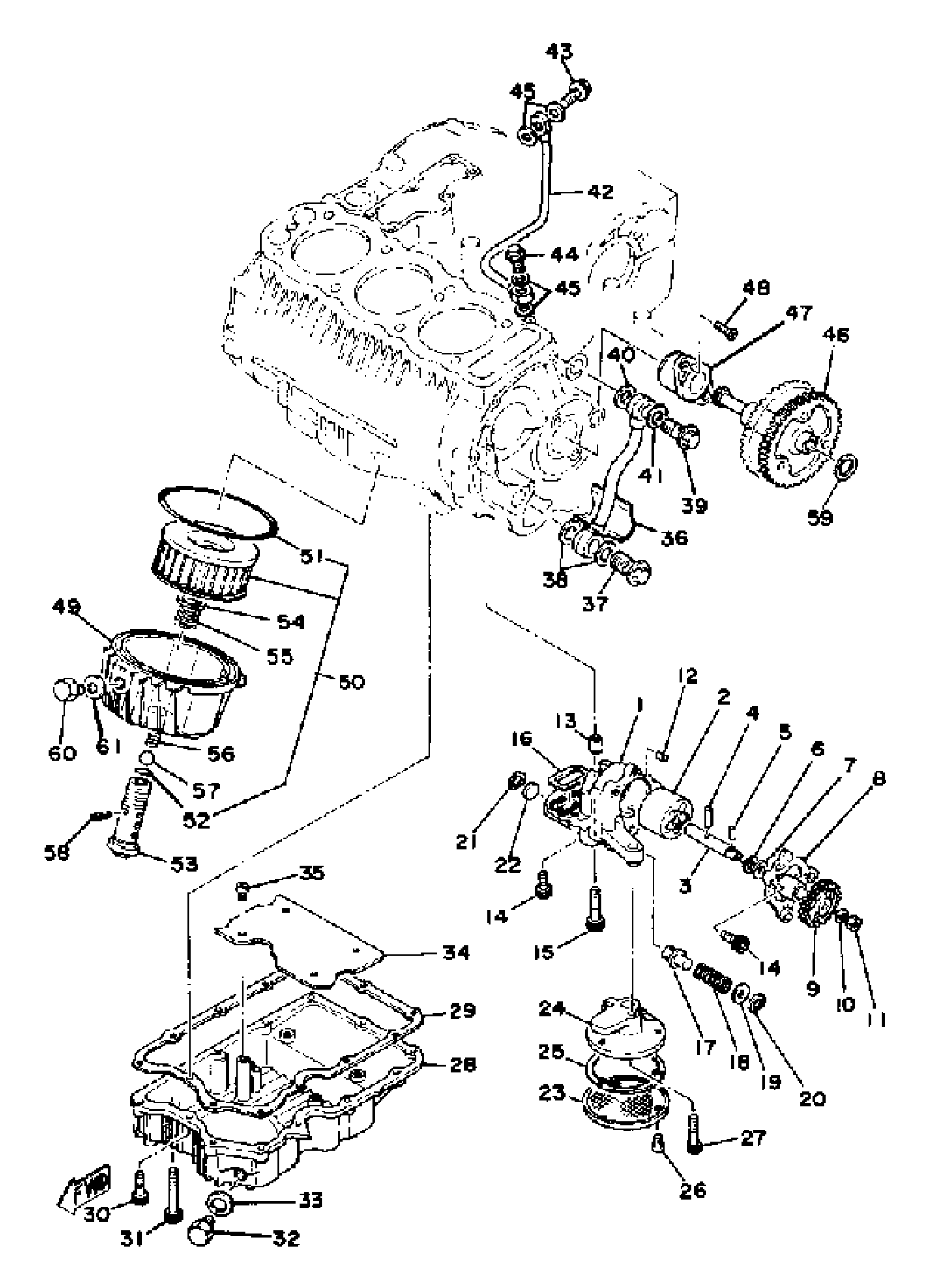

Yamaha XS750E_227501 (XS750E_227501) 1978 OIL PUMP - OIL CLEANER Diagram
#
1
HOUSING ROTOR
(99999-01081-00)
Unavailable
2
ROTOR ASSEMBLY 1
(2F3-13310-00-00)
Unavailable
3
COVER, PUMP
(2F3-13306-00-00)
Unavailable
7
WASHER, PLATE
(90201-11154-00)
Unavailable
8
COVER, PUMP
(2F3-13316-01-00)
Unavailable
8
. HOUSING, ROTOR
2F3-13336-02-00
Unavailable
8
HOUSING ROTOR
(99999-01081-00)
Unavailable
9
GEAR, PUMP DRIVEN 2
(1J7-13326-02-00)
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
NUT, HEXAGON
95380-06600-00
Unavailable
14
BOLT,SOCKET
91317-06020-00
Unavailable
15
BOLT,SOCKET
91317-06040-00
Unavailable
16
SEAL
1J7-13338-00-00
Unavailable
17
PLUNGER, RELIEF
1J7-13483-00-00
Unavailable
18
SPRING, RELIEF
1J7-13484-00-00
Unavailable
19
WASHER, PLATE
(90201-04594-00)
Unavailable
20
CIRCLIP(24H)
99009-17500-00
Unavailable
21
CIRCLIP, R-TYPE
(93420-19047-00)
Unavailable
22
PLUG, SPEC''L SHAPE
90338-19079-00
Unavailable
23
STRAINER, OIL
2F3-13411-00-00
Unavailable
24
HOUSING, STRAINER
(1J7-13412-01-00)
Unavailable
25
SEAL, OIL STRAINER
1J7-13415-00-00
Unavailable
26
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
27
BOLT,SOCKET
91317-06035-00
Unavailable
28
COVER, STRAINER
1J7-13417-01-00
Unavailable
29
GASKET,STRNR COVER
1J7-13414-10-00
Unavailable
30
BOLT,SOCKET
91317-06025-00
Unavailable
31
BOLT,SOCKET
91317-06055-00
Unavailable
32
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
33
GASKET
214-11198-01-00
Unavailable
34
PLATE, BAFFLE LOWER
(1J7-13337-01-00)
Unavailable
35
SCREW PAN HEAD
98580-06010-00
Unavailable
36
PIPE, DELIVERY 2
2F3-13171-00-00
Unavailable
37
BOLT, UNION
(90401-18040-00)
Unavailable
38
GASKET (1J7)
90430-18130-00
Unavailable
39
BOLT, UNION
(90401-10054-00)
Unavailable
40
WASHER PLATE 341839090000
90201-10128-00
Unavailable
41
GASKET
90430-16048-00
Unavailable
42
PIPE, DELIVERY 1
1J7-13161-00-00
Unavailable
43
BOLT, UNION (371-13166-00)
90401-10013-00
Unavailable
44
BOLT, UNION (16G)
90401-10084-00
Unavailable
45
GASKET (5R6)
90430-10171-00
Unavailable
46
GEAR, PUMP DRIVEN
(1J7-13325-01-00)
Unavailable
47
HOUSING
(1J7-13313-00-00)
Unavailable
48
SCREW, OVAL HEAD
98603-06018-00
Unavailable
49
COVER, OIL ELEMENT
2H7-13447-00-00
Unavailable
50
ELEMENT, OIL CLEANER
1J7-13441-10-00
Unavailable
51
O-RING (3Y2)
93211-19413-00
Unavailable
52
O-RING (1J7)
93210-16314-00
Unavailable
53
BY-PASS VALVE ASSEMBLY
1J7-13340-00-00
Unavailable
54
WASHER, PLATE (1L9)
90201-21608-00
Unavailable
55
SPRING, COMPRESSION (1J7)
90501-18433-00
Unavailable
56
SPRING, COMPRESSION (1J7)
90501-12413-00
Unavailable
57
BALL, HALF
93501-02018-00
Unavailable
58
PIN,SPRING
91690-20018-00
Unavailable
59
WASHER PLATE 328171160000
90201-20276-00
Unavailable
60
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
61
GASKET
214-11198-01-00
Unavailable
