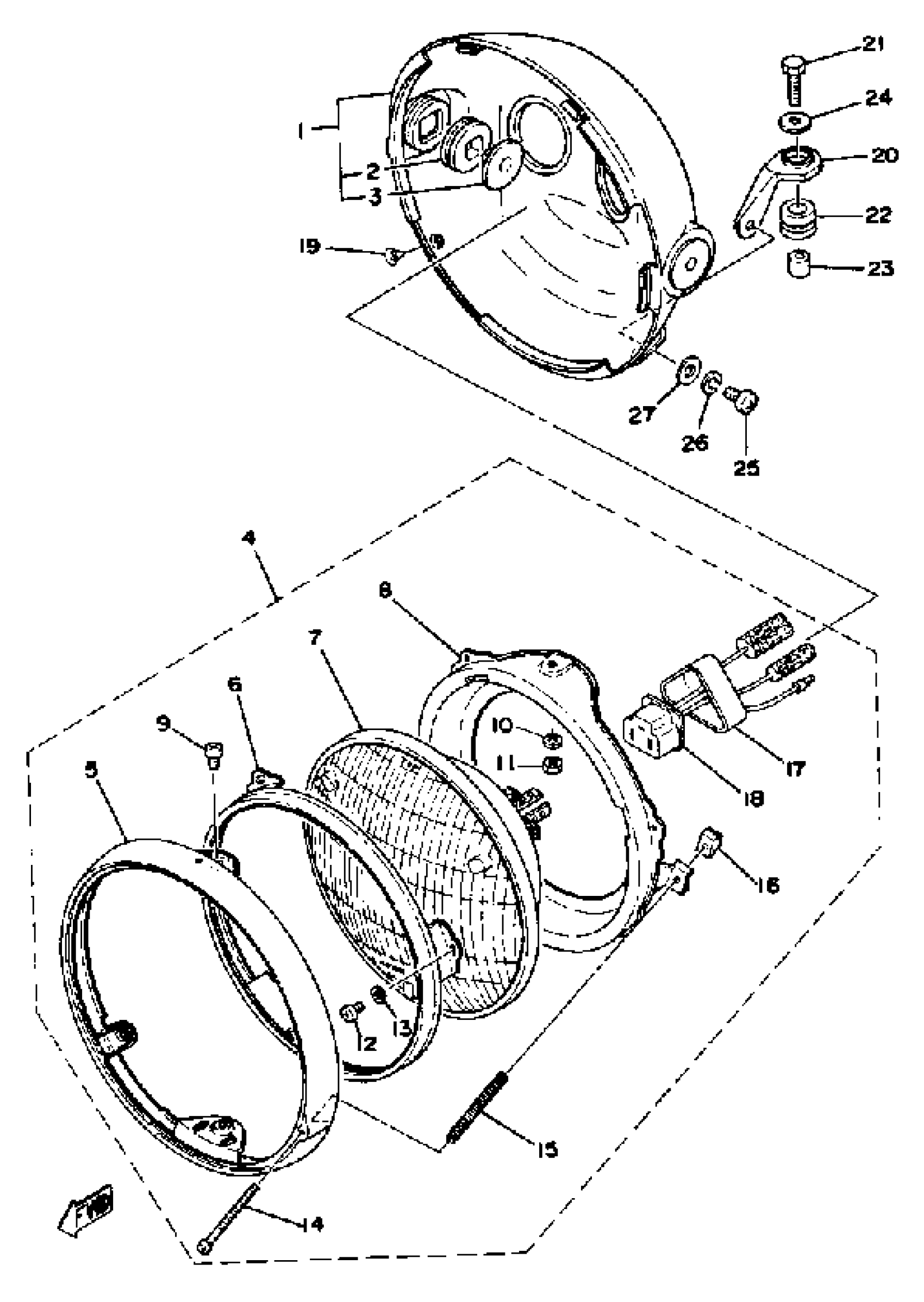

Yamaha XS750E_227501 (XS750E_227501) 1978 HEAD LAMP Diagram

#

Description
Price

1

BODY ASSEMBLY

1J7-84330-62-33

Unavailable

2

DAMPER, HEAD LAMP

584-84345-60-00

$9.99

3

COLLAR 2

584-84338-60-00

$21.99

5

RIM, HEAD LAMP

341-84315-40-00

$142.99

6

RING, RETAINING

2F9-84395-00-00

$58.99

7

. LENS ASSEMBLY

341-84320-60-00

Unavailable

8

RING, MOUNTING

2F9-84394-00-00

Unavailable

9

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

NUT, HEXAGON (663)

95380-05600-00

$8.49

12

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

15

SPRING, ADJUST

341-84332-60-00

$9.99

16

NUT, ADJUST

198-84334-60-00

$7.99

17

. COVER, SOCKET

341-84397-61-00

Unavailable

18

SOCKET

371-84312-60-00

Unavailable

19

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

20

STAY, HEADLIGHT 1

1J7-84318-00-00

Unavailable

21

BOLT, HEXAGON

97017-06025-00

Unavailable

22

GROMMET 341843360000

90480-16114-00

Unavailable

23

COLLAR (1T2)

90387-07598-00

Unavailable

24

WASHER, PLATE (J10)

90201-06697-00

Unavailable

25

SCREW, PAN

98507-06014-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

WASHER, PLATE

90201-06380-00

Unavailable
