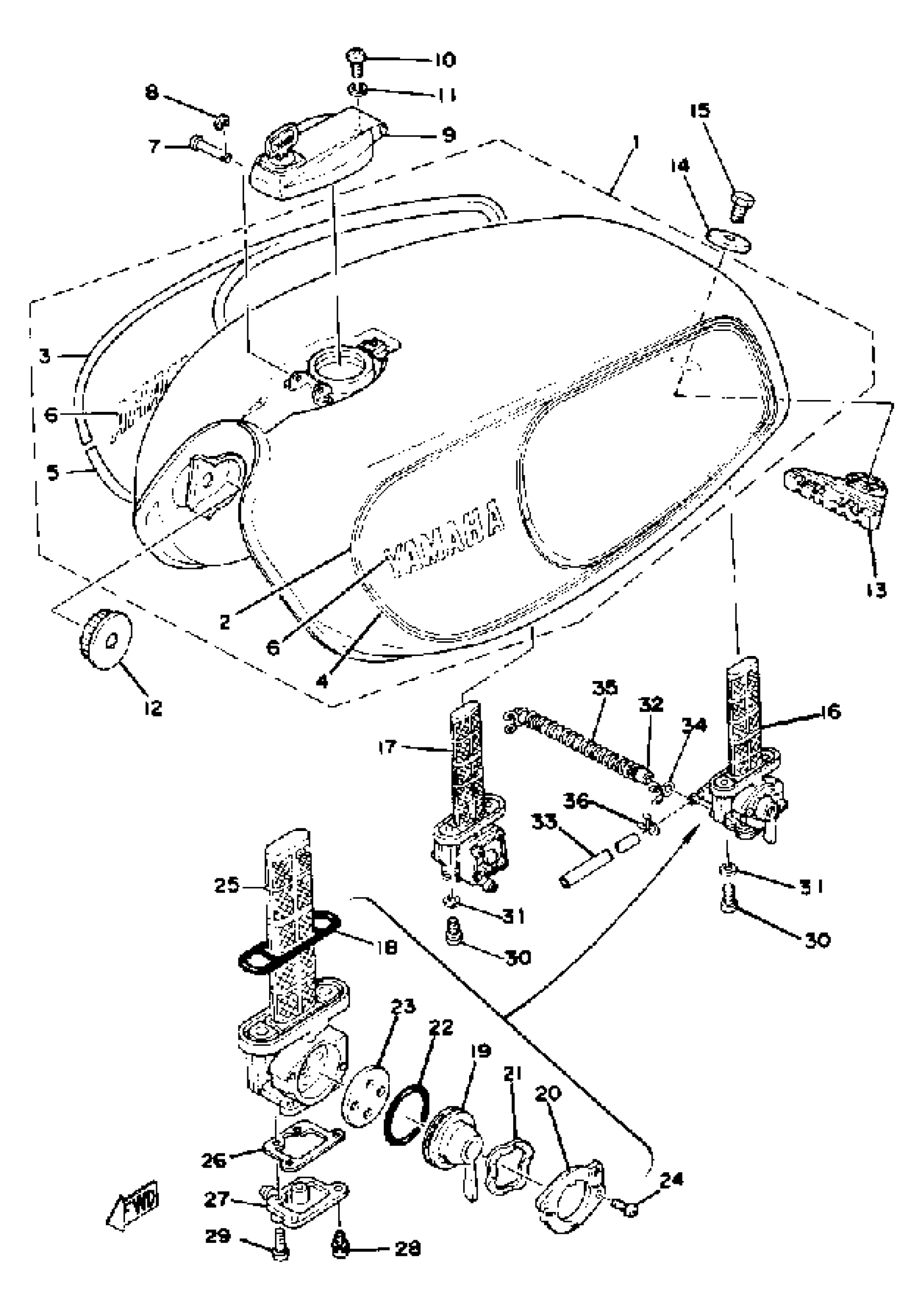

Yamaha XS750E_227501 (XS750E_227501) 1978 FUEL TANK Diagram
#
1
FUEL TANK
(1J7-24110-00-04)
Unavailable
1
FUEL TANK
(1J7-24110-00-05)
Unavailable
2
GRAPHIC, FUEL TNK 1
(2F3-24244-00-00)
Unavailable
2
GRAPHIC, FUEL TNK 1
(2F3-24244-10-00)
Unavailable
3
GRAPHIC, FUEL TNK 3
(2F3-24246-00-00)
Unavailable
3
GRAPHIC, FUEL TNK 3
(2F3-24246-10-00)
Unavailable
4
GRAPHIC, FUEL TNK 2
(2F3-24245-00-00)
Unavailable
4
GRAPHIC, FUEL TNK 2
(2F3-24245-10-00)
Unavailable
5
GRAPHIC, FUEL TNK 4
(2F3-24247-00-00)
Unavailable
5
GRAPHIC, FUEL TNK 4
(2F3-24247-10-00)
Unavailable
6
EMBLEM, YAMAHA(PASTEL GOLD)
99245-00120-00
Unavailable
7
PIN, SPECIAL SHAPE
90249-03123-00
Unavailable
9
CAP ASSEMBLY
1E7-24602-00-00
Unavailable
10
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
11
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
12
DAMPER, LOCATING 1
1J7-24181-01-00
Unavailable
13
DAMPER, TANK LOCATING 2
1J7-24182-01-00
Unavailable
14
WASHER
90209-08008-00
Unavailable
15
BOLT(62E)
97013-08012-00
Unavailable
16
FUEL COCK ASSEMBLY 1
2F3-24500-00-00
Unavailable
17
FUEL COCK ASSEMBLY 2
2F3-24510-00-00
Unavailable
18
O-RING
1J7-24512-00-00
Unavailable
19
. LEVER, COCK
1J7-24524-00-00
Unavailable
19
LEVER, COCK
(1J7-24524-10-00)
Unavailable
20
. PLATE, LVR FITTING
1J7-24525-00-00
Unavailable
20
PLATE, LVR FITTING
(1J7-24525-10-00)
Unavailable
21
. WASHER, WAVE
1J7-24518-00-00
Unavailable
22
SEAL, FUEL COCK
1J7-24534-00-00
Unavailable
23
. UNAVAILABLE IN PRICE BOOK
1J7-24532-00-00
Unavailable
24
SCREW, OVAL HEAD
(98601-03010-00)
Unavailable
25
. NET, FILTER 1
1J7-24514-02-00
Unavailable
26
GASKET, DRAIN COVER
1J7-24522-00-00
Unavailable
27
CUP, FILTER
(1J7-24521-00-00)
Unavailable
28
SCREW, PAN HEAD
98517-04012-00
Unavailable
29
SCREW, FLAT
98707-04016-00
Unavailable
30
SCREW 366241430000
90149-06008-00
Unavailable
31
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
32
HOSE (L450)
90445-10144-00
Unavailable
33
HOSE
90445-07375-00
Unavailable
34
CLIP
90467-090A2-00
Unavailable
35
SPRING, COMPRESSION
90504-06023-00
Unavailable
36
CLIP (1J7)
90467-07029-00
Unavailable
