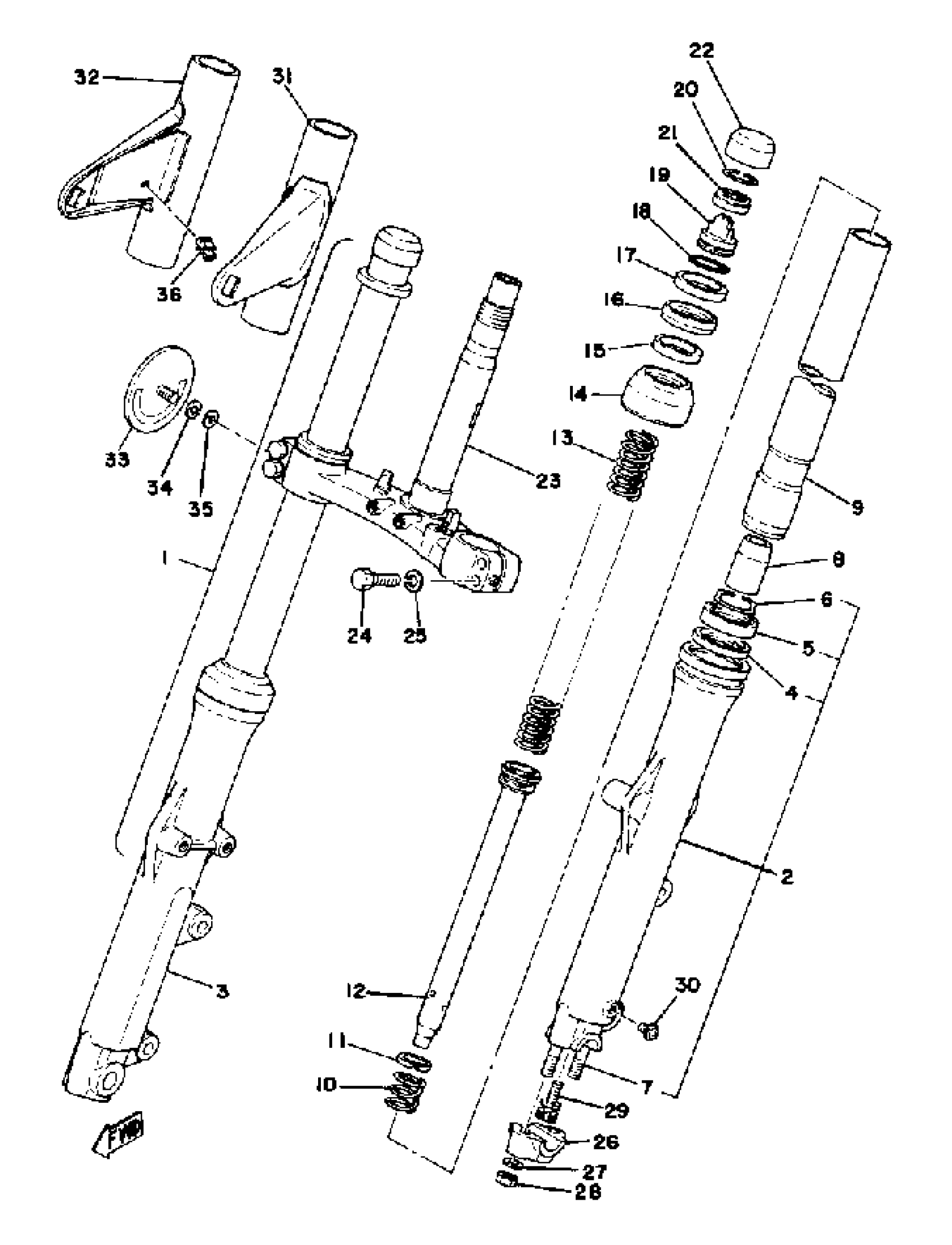

Yamaha XS750E_227501 (XS750E_227501) 1978 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY
(2F3-23101-00-00)
Unavailable
2
TUBE, OUTER 1
(1T4-23126-00-00)
Unavailable
3
TUBE, OUTER 2
(1T4-23136-00-00)
Unavailable
7
.. BOLT, STUD
90116-08260-00
Unavailable
8
. SPACER, OIL LOCK
(1J3-23166-00-00)
Unavailable
9
. INNER TUBE 1
2F3-23110-00-00
Unavailable
10
. SPRING, REBOUND
1J3-23151-00-00
Unavailable
11
. RING, PISTON FRTFRK
1T4-23157-00-00
Unavailable
12
CYLINDER.COMP.FRT.FORK
(99999-01185-00)
Unavailable
13
. SPRING, FRONT FORK
2F3-23141-00-00
Unavailable
14
. SEAL, DUST
1T4-23144-00-00
Unavailable
15
. GASKET
23W-23163-00-00
Unavailable
16
GUIDE, COVER LOWER
(1T4-23116-00-00)
Unavailable
17
. GUIDE, COVER UPPER
1T4-23115-00-00
Unavailable
18
O-R1NG(N04)
93210-221A0-00
Unavailable
19
. SPRING, ADJUSTER
2F3-2311A-00-00
Unavailable
20
. CIRCLIP
1J3-23183-01-00
Unavailable
21
. BOLT, CAP
2F3-23111-00-00
Unavailable
22
. CAP, FRONT FORK
2F3-23168-01-00
Unavailable
23
. UNDER BRACKET (1T4-23340-00-33)
1T4-23340-01-33
Unavailable
24
BOLT
97014-08040-00
Unavailable
25
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
26
HOLDER, AXLE
(1J7-23167-00-00)
Unavailable
27
.. WASHER, PLATE
92990-08600-00
Unavailable
28
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
29
BOLT
3M7-23181-00-00
Unavailable
30
. PLUG, DRAIN
1E7-23119-00-00
Unavailable
31
COVER, UPPER 1
1J7-23121-01-93
Unavailable
32
COVER, UPPER 2
(1J7-23131-01-93)
Unavailable
33
REFLECTOR, FRONT 1
355-85111-01-00
Unavailable
34
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
35
. WASHER, PLAIN
92990-05200-00
Unavailable
36
CLAMP (1J7)
90464-16025-00
Unavailable
